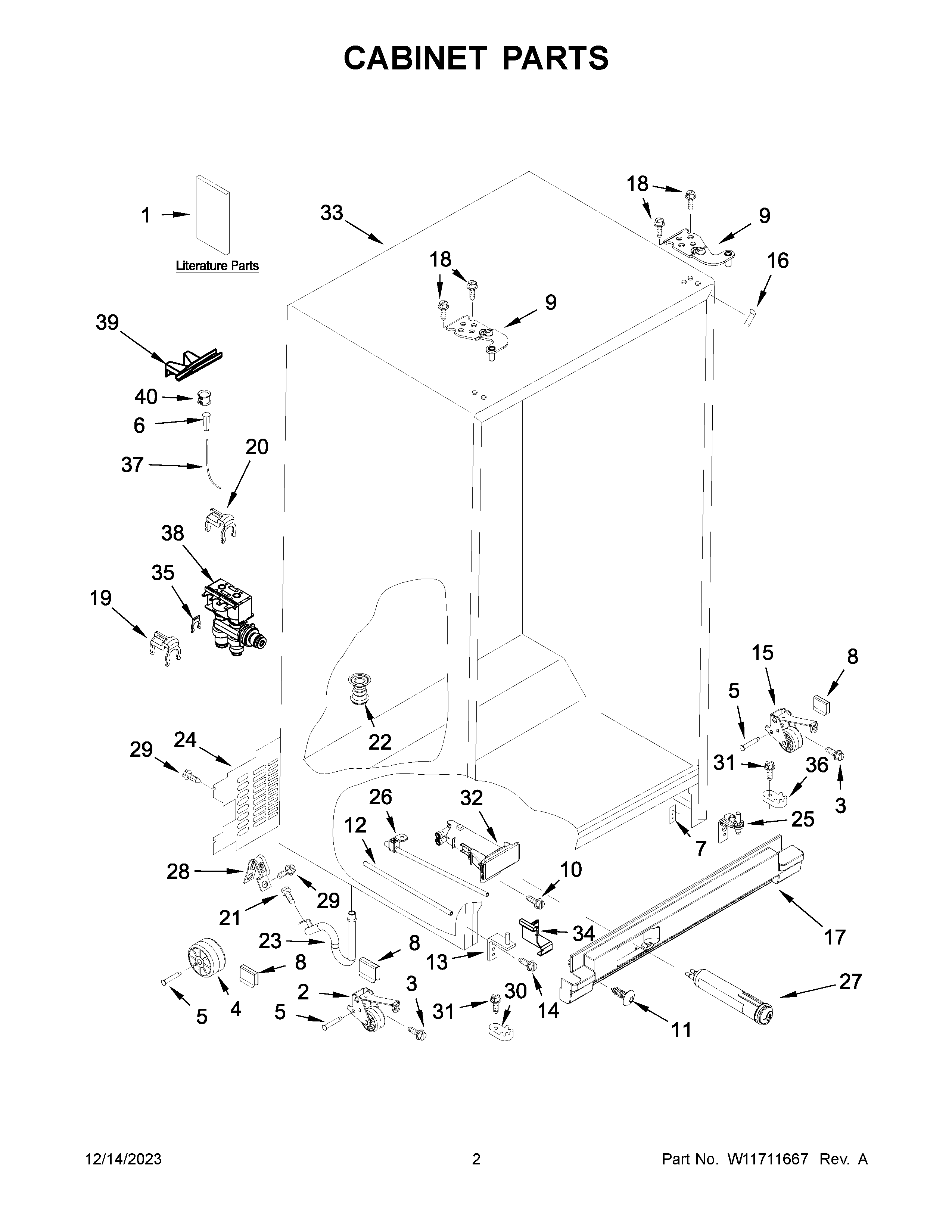

WRS325SDHZ11 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1B	TECH SHEET (ENERGY GUIDE)
1A	TECH SHEET (ENGLISH)
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	4387491 Whirlpool Refrigerator Insert
7	W11036715 Whirlpool Refrigerator Plate
7A	W10904380 Whirlpool Plate
9A	W11505710 Whirlpool Refrigerator Door Hinge
9	W11505709 Whirlpool Refrigerator Door Hinge
10	WP489500 Whirlpool Refrigerator Screw
11	WPW10308489 Whirlpool Refrigerator Screw
12	W11162036 Whirlpool Refrigerator Water Tube
13	W11687636 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16	W11219642 Whirlpool Refrigerator Filler
17	W11282544 Whirlpool Refrigerator Grille
18	SCREW, HINGE (WHITE)
19	W11091654 Whirlpool Refrigerator Double Lock WTR Connect
20	W11252188 Whirlpool Connector
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	W11613261 Whirlpool Unit Cover
25	W11399415 Whirlpool Refrigerator Door Hinge
26	W11162040 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	W11234470 Whirlpool Refrigerator Clamp
29	SCREW
30	W11679635 Whirlpool Door Cam
31	WP489483 Whirlpool Screw
32	HOUSING
33	CABINET (NOT A SERVICABLE PART)
34	W10897565 Whirlpool Refrigerator Bracket
35	W11676611 Whirlpool Ring
35A	W11678575 Whirlpool Ring
36	CAM-DOOR
37	W10823511 Whirlpool Refrigerator Water Tube
38	VALVE WASHER
39	W11645360 Whirlpool Chute
40	W10861184 Whirlpool Refrigerator Clamp
