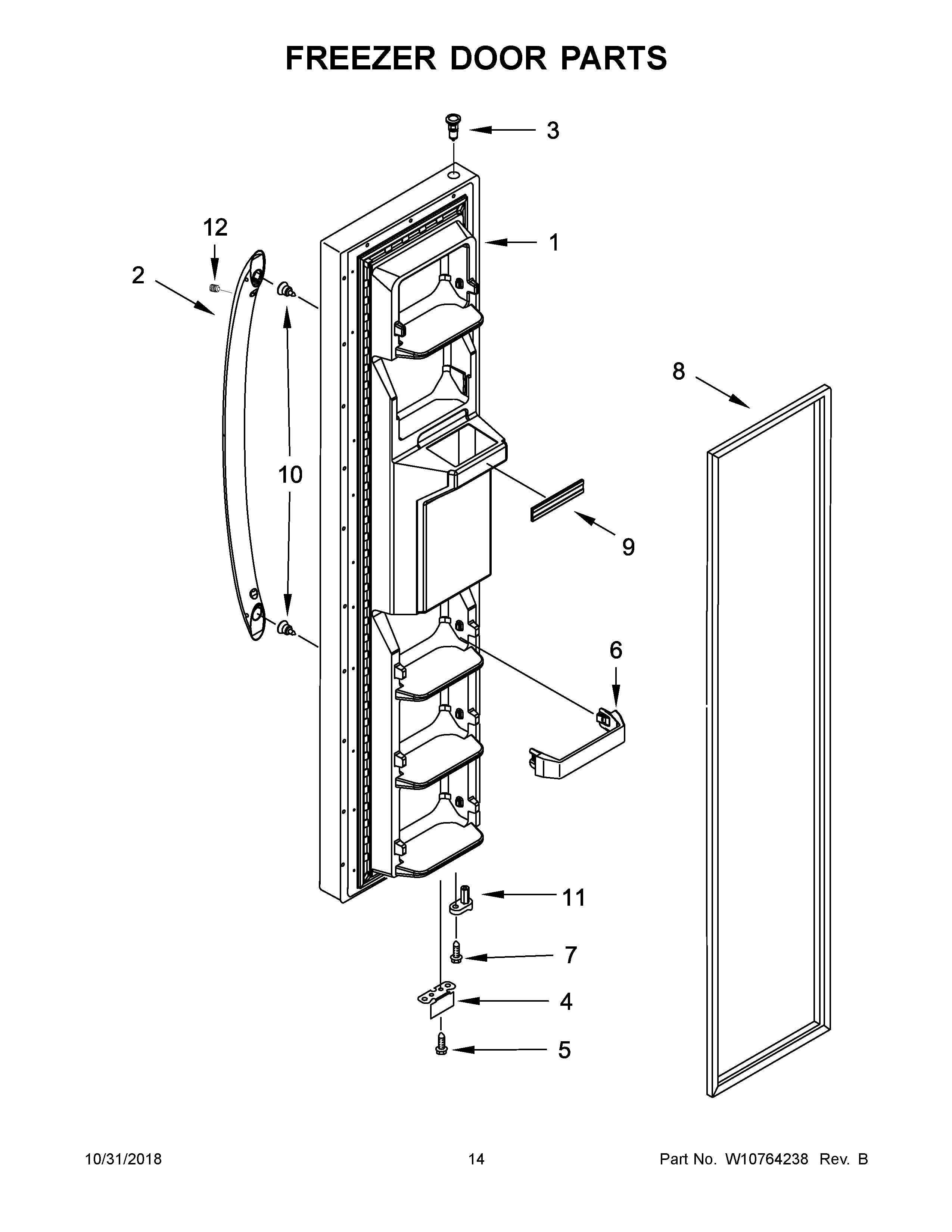

WRS331FDDB00 08 – FREEZER DOOR PARTS

WRS331FDDB00 08 – FREEZER DOOR PARTS

Written by

in

WRS331FDDB00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1ADOOR, FREEZER (INCLUDES ITEM 8) (BLACK)
1BDOOR, FREEZER (INCLUDES GASKET AND DISPENSER PARTS) (MONOCHROMATIC STAINLESS)
1DOOR, FREEZER (INCLUDES GASKET AND DISPENSER PARTS) (WHITE)
2W10848410 Whirlpool Refrigerator Handle
2AW10805245 Whirlpool Door Handle
2BW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
42306940 Whirlpool Refrigerator Bracket
5WP489483 Whirlpool Screw
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
8A2159080 Whirlpool Refrigerator Door Gasket
8BW10136733 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11W10846219 Whirlpool Refrigerator Door Cam
12SCREW
