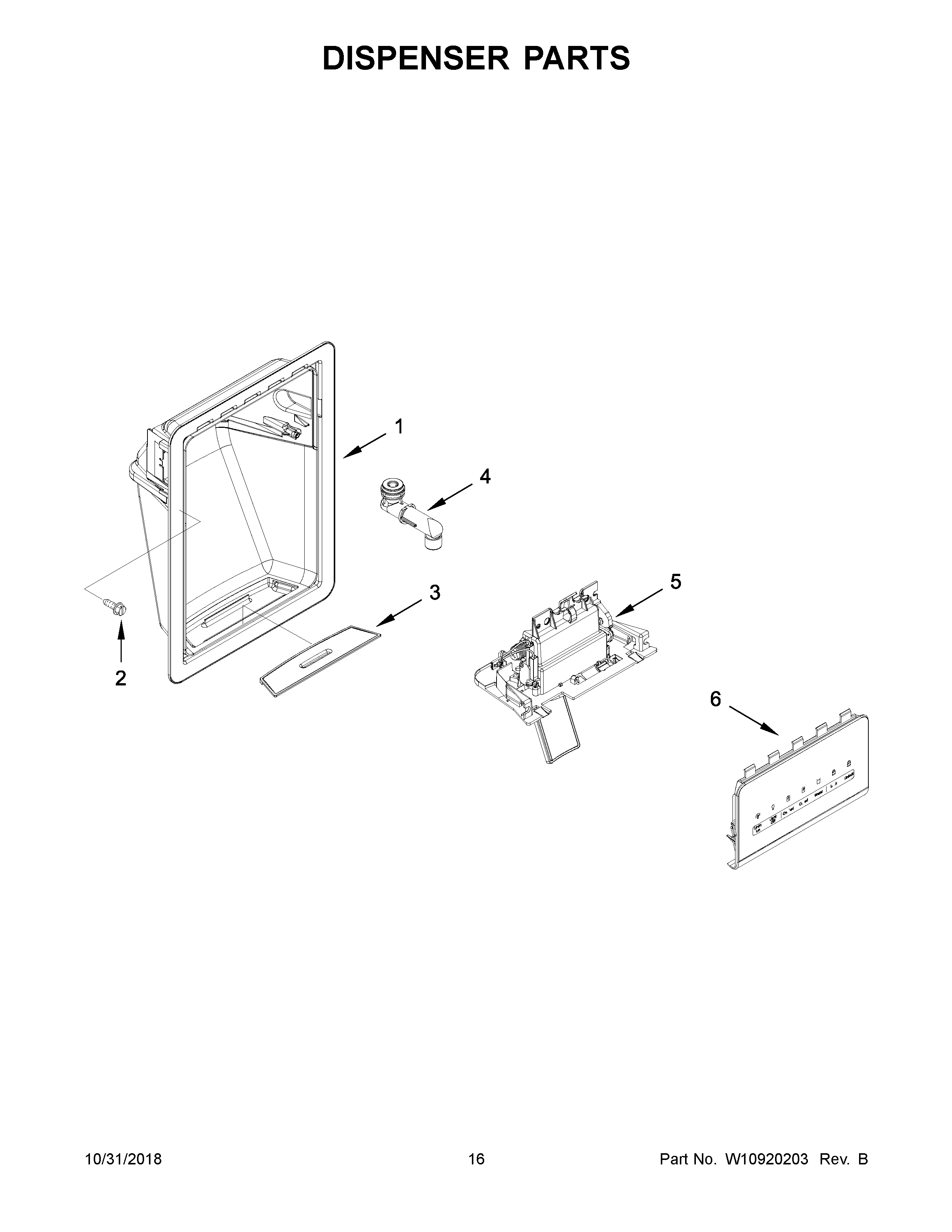

WRS331FDDB01 09 – DISPENSER PARTS

WRS331FDDB01 09 – DISPENSER PARTS

Written by

in

WRS331FDDB01 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP3196557 Whirlpool Screw
3AWPW10397394 Whirlpool Refrigerator Grille
3WPW10397392 Whirlpool Refrigerator Grille
3BWPW10397395 Whirlpool Refrigerator Grille
4WPW10397435 Whirlpool Refrigerator Fitting
5W11195669 Whirlpool Dispenser Funnel Frame
5BW11093842 Whirlpool Dispenser Funnel Guide
5AW11093828 Whirlpool Refrigerator Ice Door
6WPW10397956-includeCORE Whirlpool WPW10397956 Refrigerator Electronic Control Board + Core
6AUI ASSEMBLY CONTROL (BLACK)
