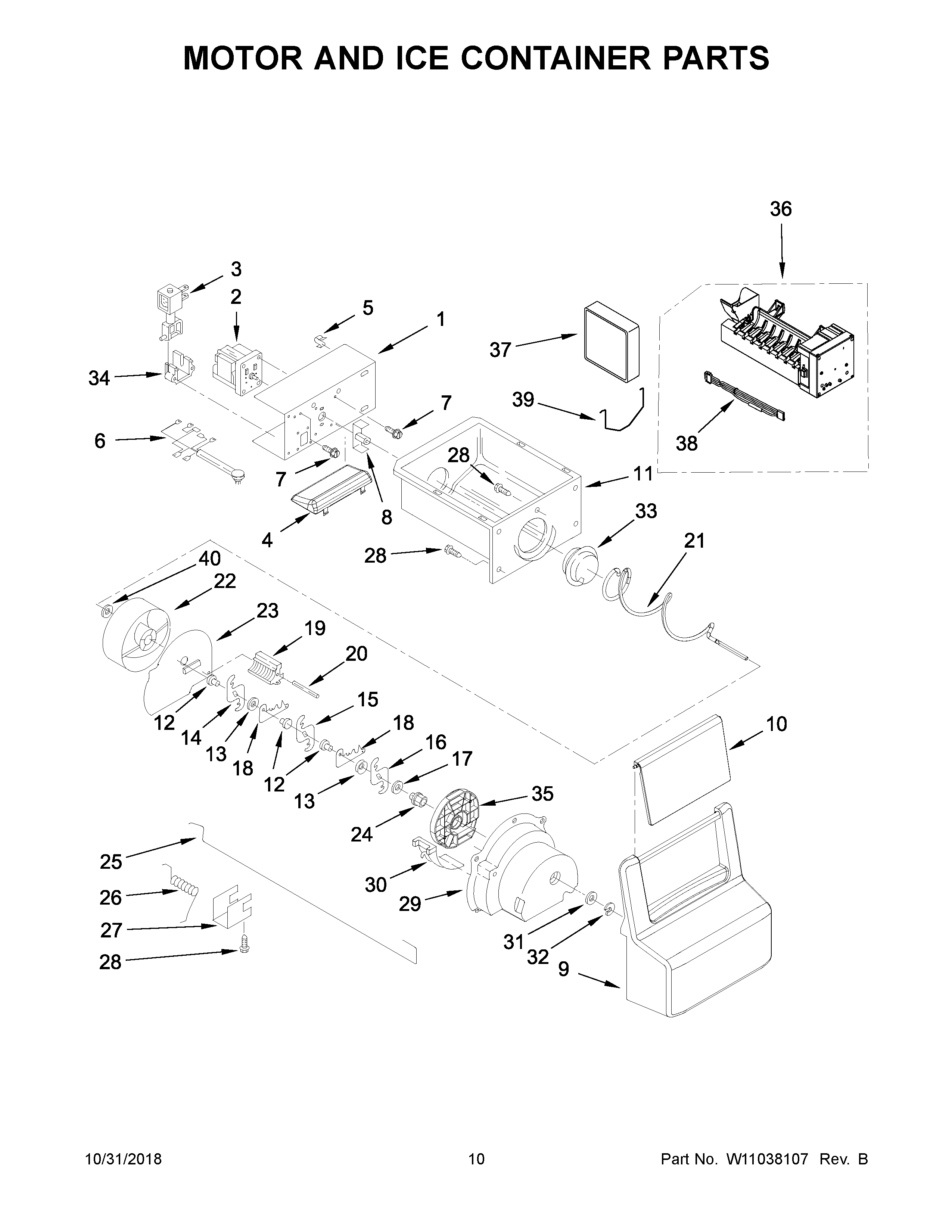

WRS331FDDB02 06 – MOTOR AND ICE CONTAINER PARTS

WRS331FDDB02 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

WRS331FDDB02 06 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BRACKET, MOTOR
2	W11671282 Whirlpool Refrigerator Ice Auger Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	WPW10515057 Whirlpool Light Board
5	WP1115374 Whirlpool Refrigerator Clip
6	W10871583 Whirlpool Refrigerator Dispenser Wiring Harness
7	WP489399 Whirlpool Refrigerator Screw
8	COUPLING AUGER MOTOR
9	W10189274 Whirlpool Refrigerator Cover
10	W10406979 Whirlpool Refrigerator Ice Door
11	CONTAINER
12	W11032812 Whirlpool Refrigerator Spacer
13	W11032808 Whirlpool Refrigerator Spacer
14	W10278731 Whirlpool Refrigerator Blade
15	W10278732 Whirlpool Refrigerator Blade
16	W10278733 Whirlpool Refrigerator Blade
18	W10181990 Whirlpool Refrigerator Blade
19	W10138203 Whirlpool Refrigerator Blade Block
20	489229 Whirlpool Refrigerator Roll Pin
21	WPW10295082 Whirlpool Refrigerator Ice Auger
22	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
23	W10852691 Whirlpool Refrigerator Baffle
24	WP1119018 Whirlpool Refrigerator Bearing
25	W11596045 Whirlpool Refrigerator Control Arm
26	1119020 Whirlpool Refrigerator Spring
27	1119021 Whirlpool Refrigerator Clip
28	WP488787 Whirlpool Refrigerator Screw
29	WPW10185018 Whirlpool Refrigerator Housing
30	WP1119017 Whirlpool Refrigerator Deflector
31	489234 Whirlpool Refrigerator Washer
32	WP489236 Whirlpool Refrigerator Ring
33	W10749708 Whirlpool Refrigerator Coupling
34	W10850503 Whirlpool Refrigerator Guide
35	W10138206 Whirlpool Refrigerator Spacer
36	WPW10300022 Whirlpool Refrigerator Ice Maker Assembly
37	WPW10289690 Whirlpool Ice Maker Cover
38	W10838084 Whirlpool Refrigerator Wire Harness
39	W11559683 Whirlpool Ice Level Arm
40	WP2198661 Whirlpool Refrigerator Washer
100	ICE-CONTNR
