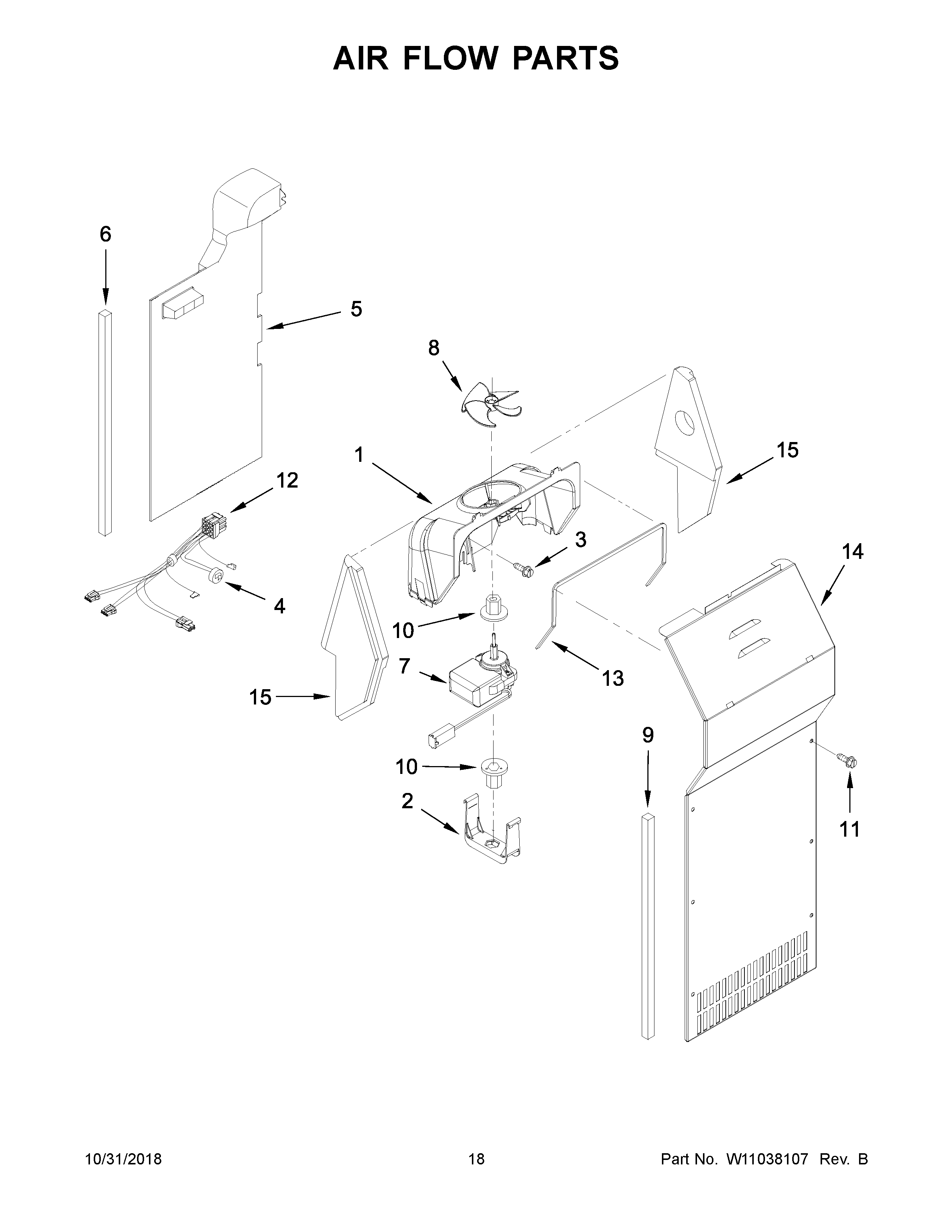

WRS331FDDB02 10 – AIR FLOW PARTS

WRS331FDDB02 10 – AIR FLOW PARTS

Written by

in

WRS331FDDB02 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2W11700295 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4CABINET (NOT A SERVICEABLE PART)
5W10166220 Whirlpool Refrigerator Air Duct
64388500 Whirlpool Refrigerator Gasket
7W10687326 Whirlpool Refrigerator Evaporator Motor
8WP2169142 Whirlpool Fan Blade
9WP2304241 Whirlpool Refrigerator Gasket
10WP2176759 Whirlpool Refrigerator Grommet
11WP693995 Whirlpool Screw
12W11225843 Whirlpool Refrigerator Wire Harness
13WP2155789 Whirlpool Refrigerator Gasket
14COVER, EVAPORATOR
15A4388358 Whirlpool Refrigerator Support Bracket
