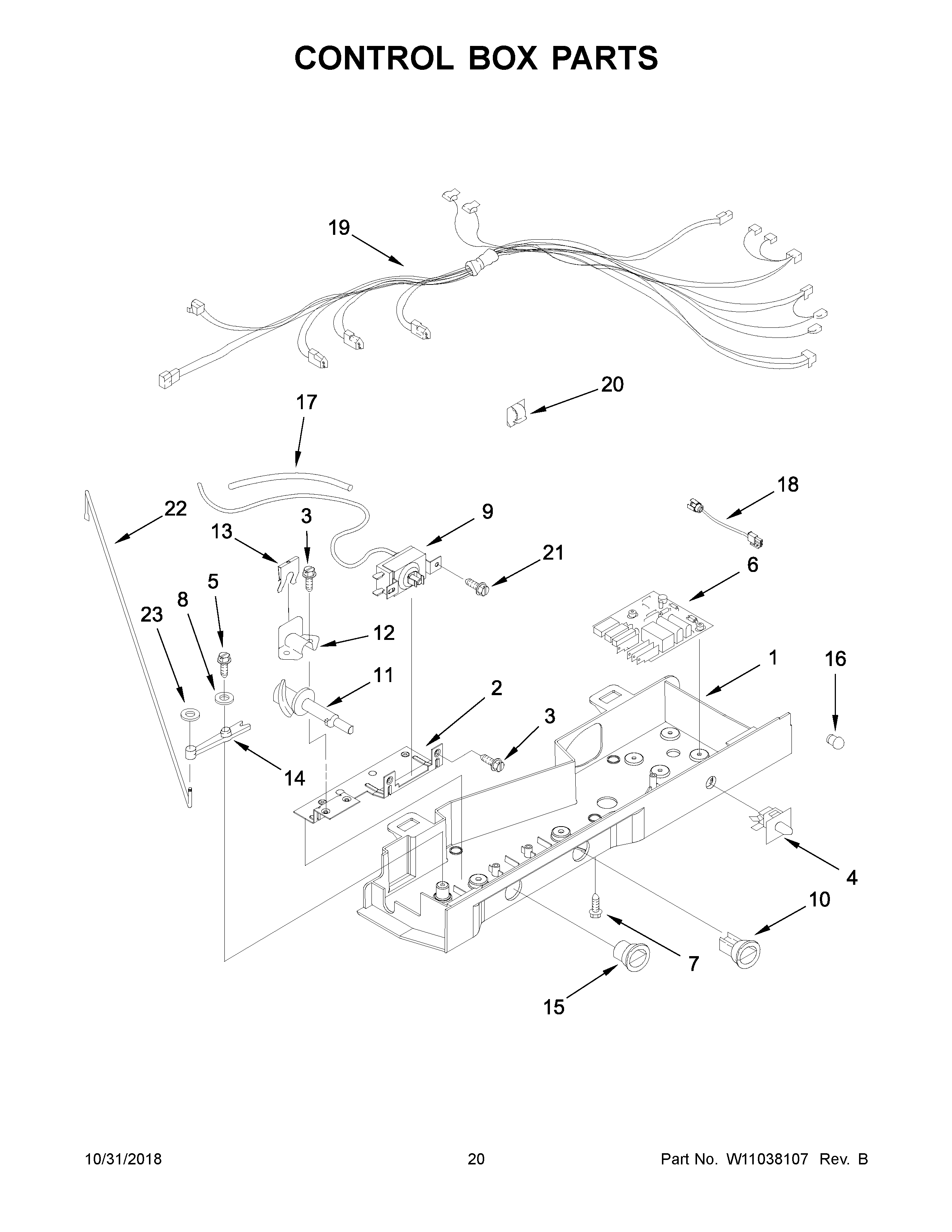

WRS331FDDB02 11 – CONTROL BOX PARTS

WRS331FDDB02 11 – CONTROL BOX PARTS

Written by

in

WRS331FDDB02 11 – CONTROL BOX PARTS

Products

PositionProduct
1W10553058 Whirlpool Refrigerator Control Box
22311611 Whirlpool Refrigerator Bracket
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5627068 Whirlpool Refrigerator Screw
6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7489392 Whirlpool Refrigerator Screw
8489203 Whirlpool Refrigerator Washer
9WPW10583801 Whirlpool Refrigerator Thermostat
10W10723843 Whirlpool Refrigerator Thermostat Knob
11WP2182195 Whirlpool Refrigerator Cam
12W10891600 Whirlpool Refrigerator Bearing
13WP2196062 Whirlpool Refrigerator Clip
14ARM, PIVOT
15KNOB, CONTROL
16COVER, LIGHT LENS
17WP2196003 Whirlpool Refrigerator Bar Riser
18W10853646 Whirlpool Indicator Light
19W10667067 Whirlpool Refrigerator Wire Harness
20WP1115374 Whirlpool Refrigerator Clip
21WP965173 Whirlpool Dishwasher Screw
22W10804348 Whirlpool Refrigerator Rod
23FASTENER, PUSH-ON
