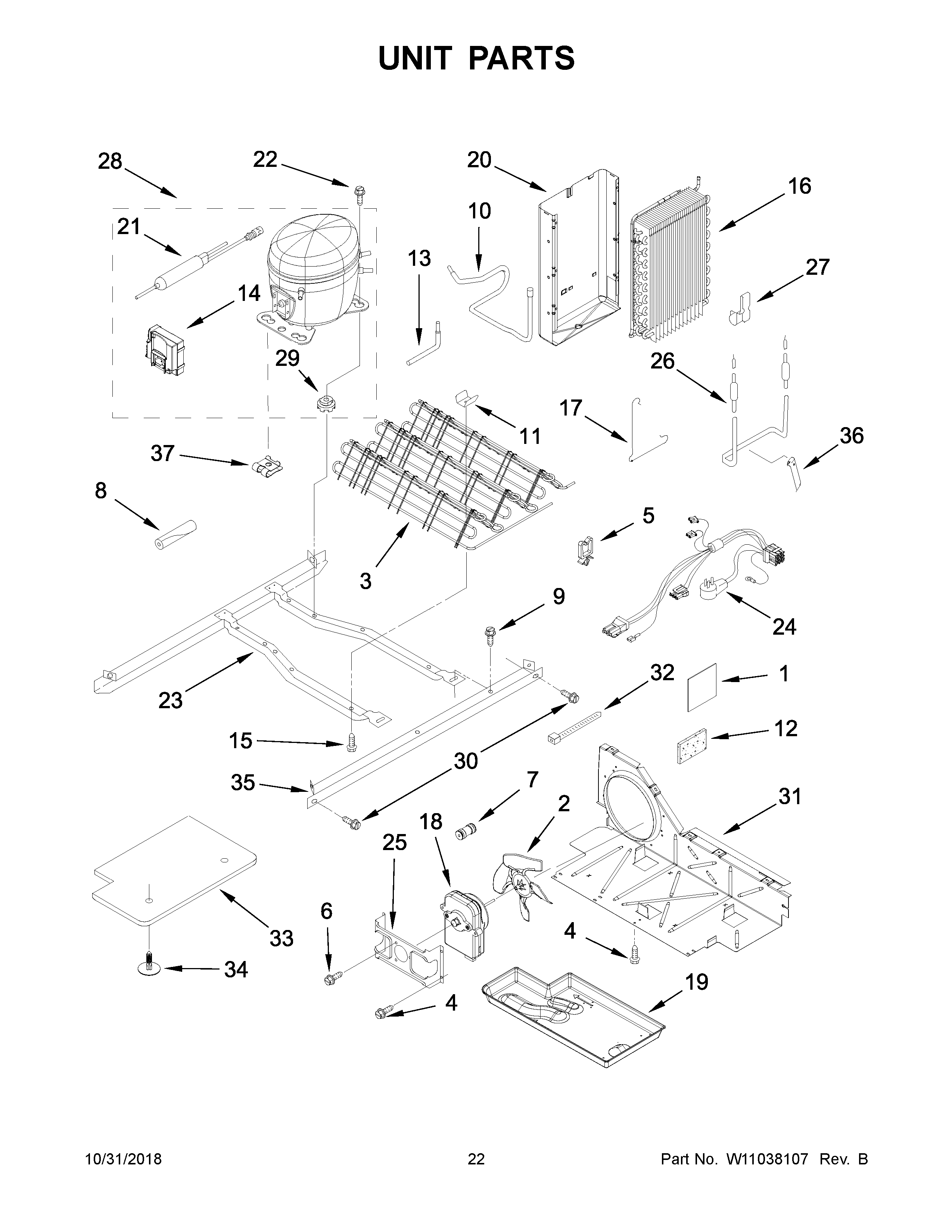

WRS331FDDB02 12 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	978030 Whirlpool Refrigerator Valve
NI	WP978025 Whirlpool Refrigerator Valve
1	2217070 Whirlpool Foam Kit
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	CLIP
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W10745338 Whirlpool Tube
11	W10683556 Whirlpool Refrigerator Clip
12	W11553819 Whirlpool Refrigerator Insulation
13	W10858105 Whirlpool Refrigerator Tube
14	WPW10233421 Whirlpool Refrigerator Inverter Box
15	W11544659 Whirlpool Refrigerator Screw
16	WP2188822 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11127829 Whirlpool Refrigerator Condenser Motor
19	WPW10614158 Whirlpool Refrigerator Evaporator Tray
20	WPW10194474 Whirlpool Refrigerator Shield
21	WPW10143759 Whirlpool Dryer Filter
22	SCREW
23	W10905880 Whirlpool Refrigerator Frame
24	UNIT, HARNESS
25	WP2181929 Whirlpool Refrigerator Bracket
26	WPW10495967 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
28	W11305045 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	489340 Whirlpool Refrigerator Screw
31	BAFFLE, AIR
32	WPW10339879 Whirlpool Wire Tie
33	COVER, UNIT
34	489396 Whirlpool Refrigerator Clip
35	W10905882 Whirlpool Unit Rail
37	W10697017 Whirlpool Clip
