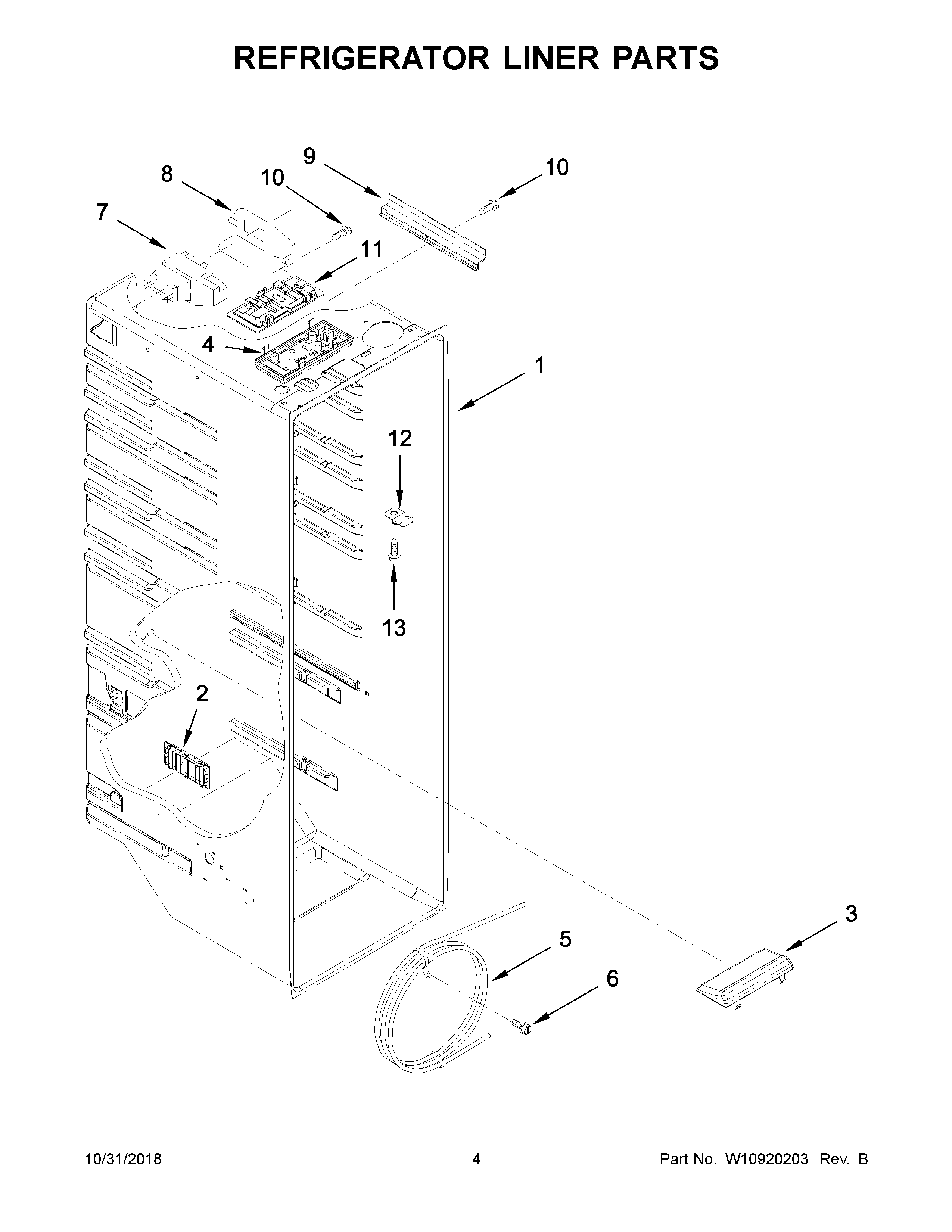

WRS331FDDM01 03 – REFRIGERATOR LINER PARTS

WRS331FDDM01 03 – REFRIGERATOR LINER PARTS

Written by

in

WRS331FDDM01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2LOUVER
3WPW10515057 Whirlpool Light Board
4WPW10515058 Whirlpool LED Light
5RESERVOIR
6W10141518 Whirlpool Refrigerator Screw
7WPW10151374 Whirlpool Refrigerator Diffuser
82152019 Whirlpool Refrigerator Cover
9W10252495 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
11W11416813 Whirlpool Microwave Housing
122311612 Whirlpool Refrigerator Clip
13WP489464 Whirlpool Refrigerator Screw
