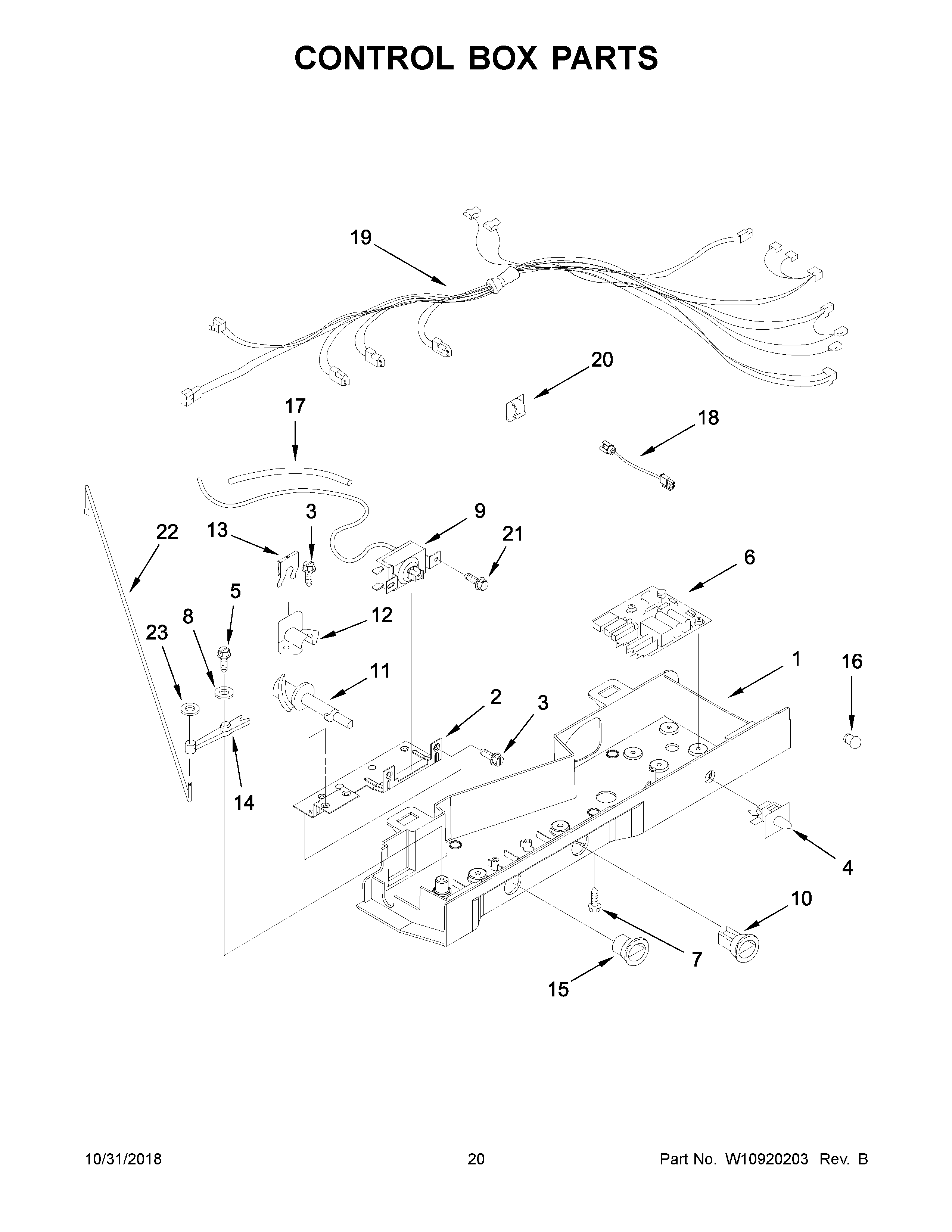

WRS331FDDM01 11 – CONTROL BOX PARTS

Products

Position	Product
1	W10553058 Whirlpool Refrigerator Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	627068 Whirlpool Refrigerator Screw
6	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
7	489392 Whirlpool Refrigerator Screw
8	489203 Whirlpool Refrigerator Washer
9	WPW10583801 Whirlpool Refrigerator Thermostat
10	W10723843 Whirlpool Refrigerator Thermostat Knob
11	WP2182195 Whirlpool Refrigerator Cam
12	W10891600 Whirlpool Refrigerator Bearing
13	WP2196062 Whirlpool Refrigerator Clip
14	ARM, PIVOT
15	KNOB, CONTROL
16	COVER, LIGHT LENS
17	WP2196003 Whirlpool Refrigerator Bar Riser
18	W10853646 Whirlpool Indicator Light
19	W10667067 Whirlpool Refrigerator Wire Harness
20	WP1115374 Whirlpool Refrigerator Clip
21	WP965173 Whirlpool Dishwasher Screw
22	W10804348 Whirlpool Refrigerator Rod
23	FASTENER, PUSH-ON
