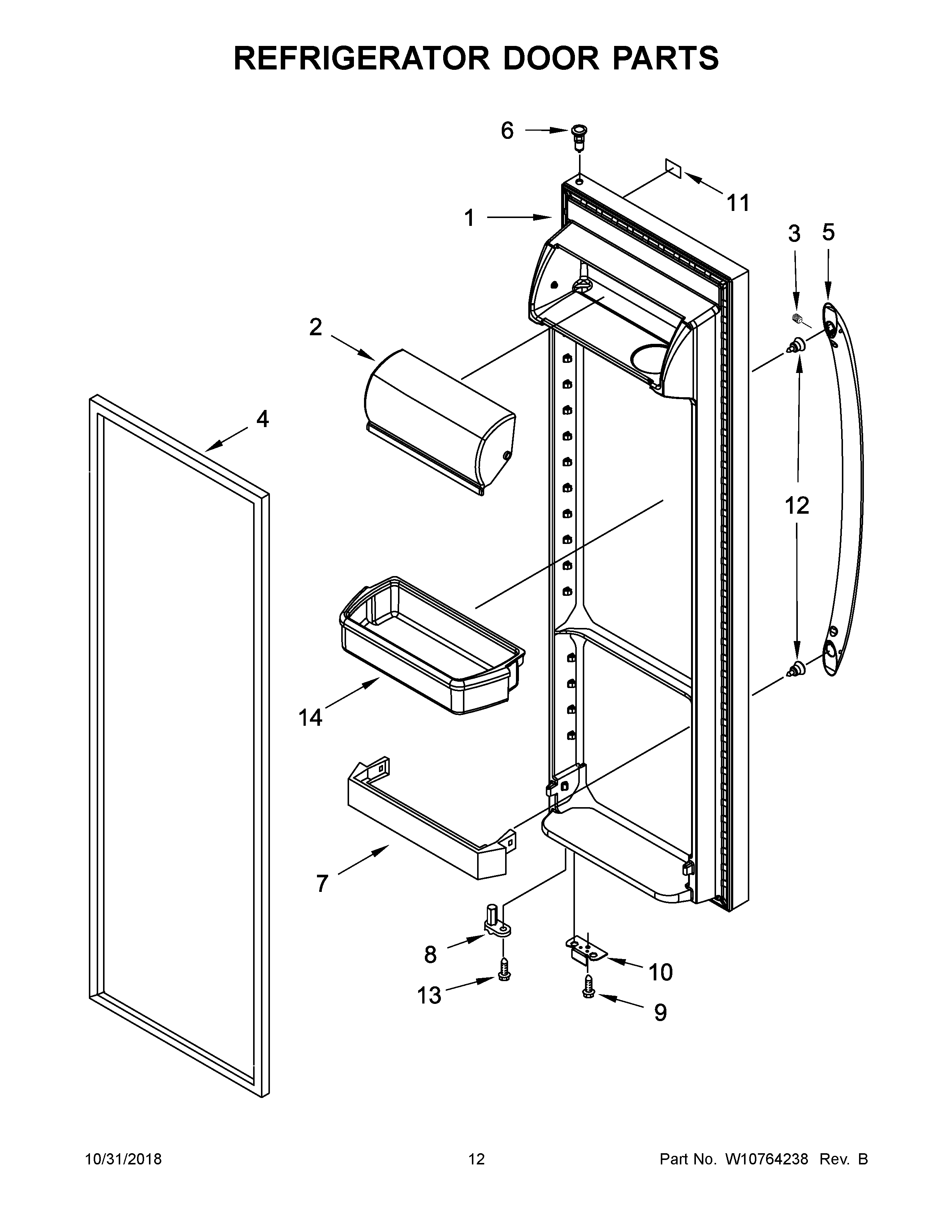

WRS331FDDW00 07 – REFRIGERATOR DOOR PARTS

WRS331FDDW00 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS331FDDW00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
1REFRIGERATOR DOOR (INCLUDES ITEM 4) (WHITE)
1BDOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
2WP2256101 Whirlpool Dairy Door
3SCREW
42159073 Whirlpool Refrigerator Door Gasket
4BW10136732 Whirlpool Refrigerator FIP Gasket
4A2159081 Whirlpool Refrigerator Door Gasket
5BW10899551 Whirlpool Door Handle
5AW10805245 Whirlpool Door Handle
5W10848410 Whirlpool Refrigerator Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11253684 Whirlpool Refrigerator Door Cam
9WP489483 Whirlpool Screw
10BRACKET, DOOR STOP (SILVER)
11AWPW10511972 Whirlpool Refrigerator Nameplate
11WPW10511975 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WP3400012 Whirlpool Refrigerator Screw
14WPW10321304 Whirlpool Refrigerator Door Shelf Bin
