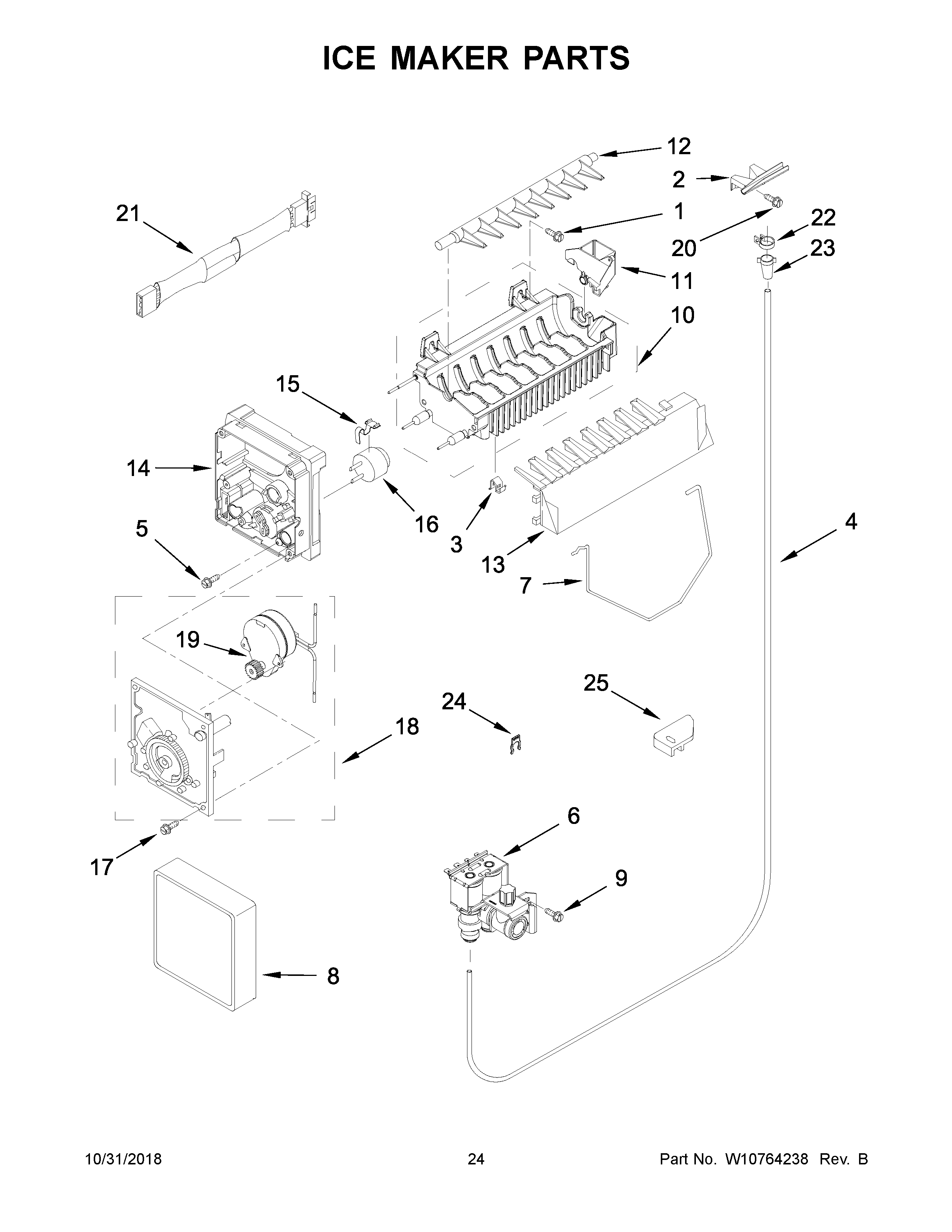

WRS331FDDW00 13 – ICE MAKER PARTS

Products

Position	Product
1	WP488163 Whirlpool Refrigerator Screw
2	W11505385 Whirlpool Refrigerator Chute
3	WP628379 Whirlpool Refrigerator Clip
4	W10823511 Whirlpool Refrigerator Water Tube
5	W10001280 Whirlpool Refrigerator Screw
6	WPW10179146 Whirlpool Refrigerator Water Inlet Valve
7	W11559683 Whirlpool Ice Level Arm
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10300025 Whirlpool Refrigerator Ice Mold
11	W11676540 Whirlpool Refrigerator Cup Fill
12	W10318914 Whirlpool Refrigerator Ejector Arm
13	W10788834 Whirlpool Strip Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly
17	W10001240 Whirlpool Refrigerator Screw
18	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
19	CABINET (NOT A SERVICEABLE PART)
20	SCREW
21	W10838084 Whirlpool Refrigerator Wire Harness
22	W10861184 Whirlpool Refrigerator Clamp
23	4387491 Whirlpool Refrigerator Insert
24	W11676611 Whirlpool Ring
24A	W11678575 Whirlpool Ring
25	W11500948 Whirlpool Refrigerator Bracket
100	WPW10300022 Whirlpool Refrigerator Ice Maker Assembly
