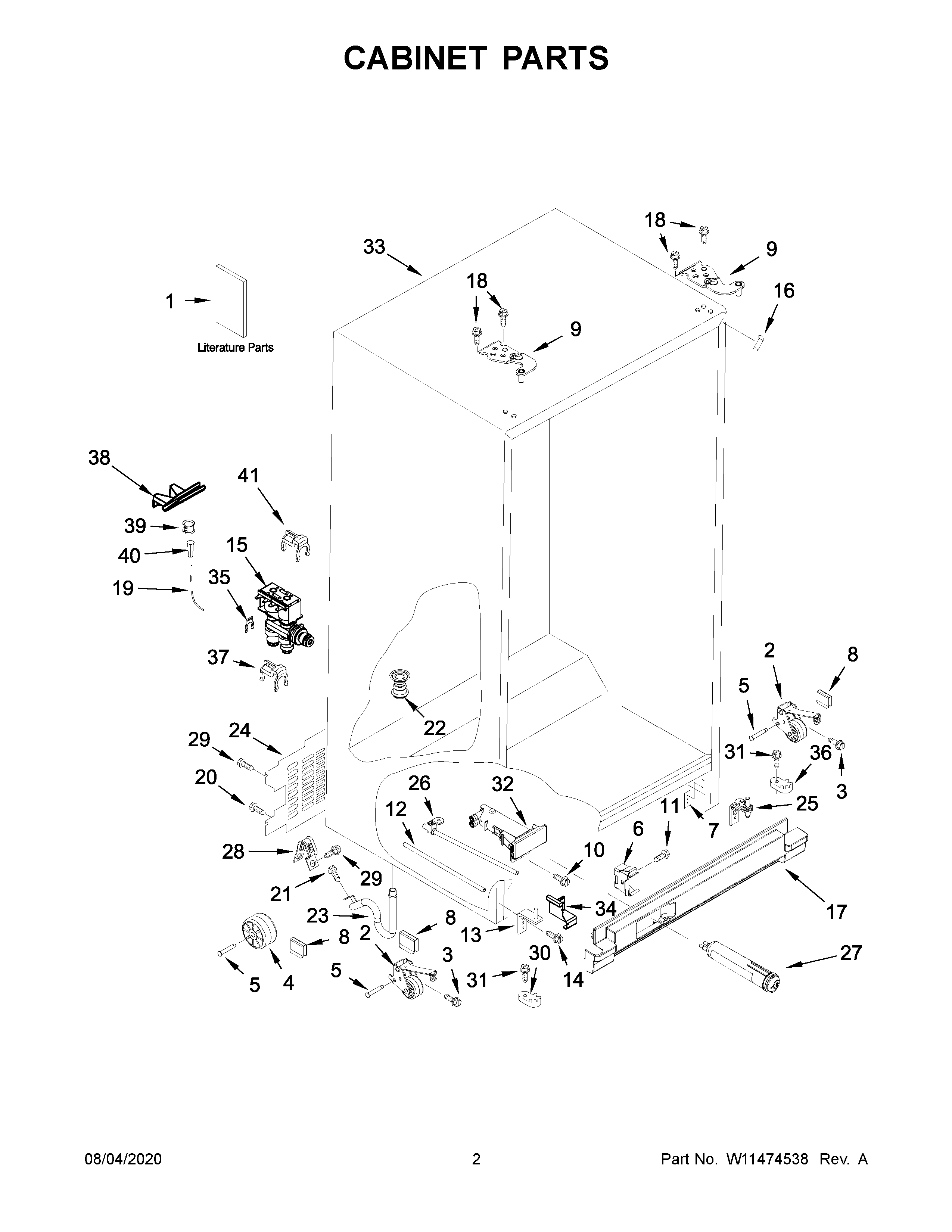

WRS331SDHB03 02 – CABINET PARTS

WRS331SDHB03 02 – CABINET PARTS

Written by

in

WRS331SDHB03 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1USE AND CARE GUIDE
2AWPW10304659 Whirlpool Wheel Assembly
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
6WP2155013 Whirlpool Refrigerator Clip
7W11036715 Whirlpool Refrigerator Plate
7AW10904380 Whirlpool Plate
8W11594405 Whirlpool Axle
9W11505709 Whirlpool Refrigerator Door Hinge
9AW11505710 Whirlpool Refrigerator Door Hinge
10WP489500 Whirlpool Refrigerator Screw
11WP489128 Whirlpool Refrigerator Screw
12W11162036 Whirlpool Refrigerator Water Tube
13W11687636 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15WPW10179146 Whirlpool Refrigerator Water Inlet Valve
16BW11219642 Whirlpool Refrigerator Filler
16AW11219641 Whirlpool Refrigerator Filler
16W11219639 Whirlpool Refrigerator Filler
17W11282549 Whirlpool Refrigerator Grille
17AW11282556 Whirlpool Refrigerator Grille
17BW11282548 Whirlpool Refrigerator Grille
18SCREW, HINGE (WHITE)
19W10823511 Whirlpool Refrigerator Water Tube
20WP488488 Whirlpool Refrigerator Screw
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24W11613262 Whirlpool Unit Cover
25W11399415 Whirlpool Refrigerator Door Hinge
26W11162040 Whirlpool Refrigerator Water Tube
27EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28W11234470 Whirlpool Refrigerator Clamp
29SCREW
30W11679635 Whirlpool Door Cam
31WP489483 Whirlpool Screw
32BHOUSING
32AHOUSING
32HOUSING
33CABINET (NOT A SERVICEABLE PART)
34W10897565 Whirlpool Refrigerator Bracket
35AW11678575 Whirlpool Ring
35W11676611 Whirlpool Ring
36CAM-DOOR
37W11091654 Whirlpool Refrigerator Double Lock WTR Connect
38W11645360 Whirlpool Chute
39W10861184 Whirlpool Refrigerator Clamp
404387491 Whirlpool Refrigerator Insert
41W11252188 Whirlpool Connector
