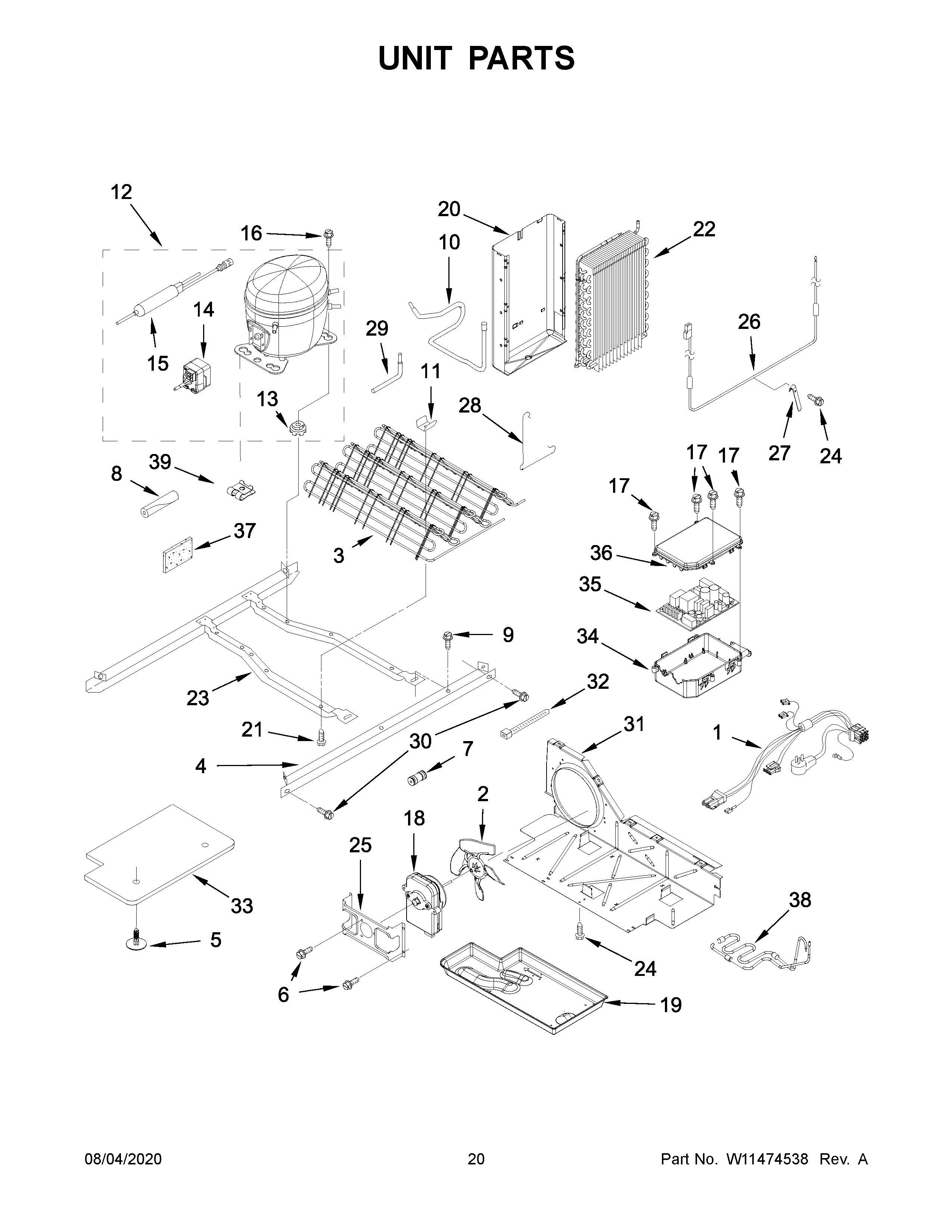

WRS331SDHB03 11 – UNIT PARTS

Products

Position	Product
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	W11490168 Whirlpool Wire Harness
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11632924 Whirlpool Condenser
4	W10905882 Whirlpool Unit Rail
5	489396 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W10745338 Whirlpool Tube
11	W10683556 Whirlpool Refrigerator Clip
12	W10276644 Whirlpool Refrigerator Compressor
13	WPW10169124 Whirlpool Refrigerator Grommet
14	WPW10233421 Whirlpool Refrigerator Inverter Box
15	WPW10143759 Whirlpool Dryer Filter
16	SCREW
17	WPW10171469 Whirlpool Refrigerator Screw
18	W11578915 Whirlpool Condenser Motor
19	W11164129 Whirlpool Refrigerator Evaporator Tray
20	WPW10194474 Whirlpool Refrigerator Shield
21	W11544659 Whirlpool Refrigerator Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	W10905880 Whirlpool Refrigerator Frame
24	WP489464 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	WPW10495967 Whirlpool Refrigerator Heater
28	Clamp
29	W10858105 Whirlpool Refrigerator Tube
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	WPW10339879 Whirlpool Wire Tie
33	W10905940 Whirlpool Refrigerator Unit Cover
34	2323186 Whirlpool Refrigerator Housing
35	W11196400-includeCORE Whirlpool W11196400 Refrigerator Electronic Control Board + Core
36	W10334855 Whirlpool Refrigerator Cover
37	W11553819 Whirlpool Refrigerator Insulation
38	W11678305 Whirlpool Tube
39	W10697017 Whirlpool Clip
