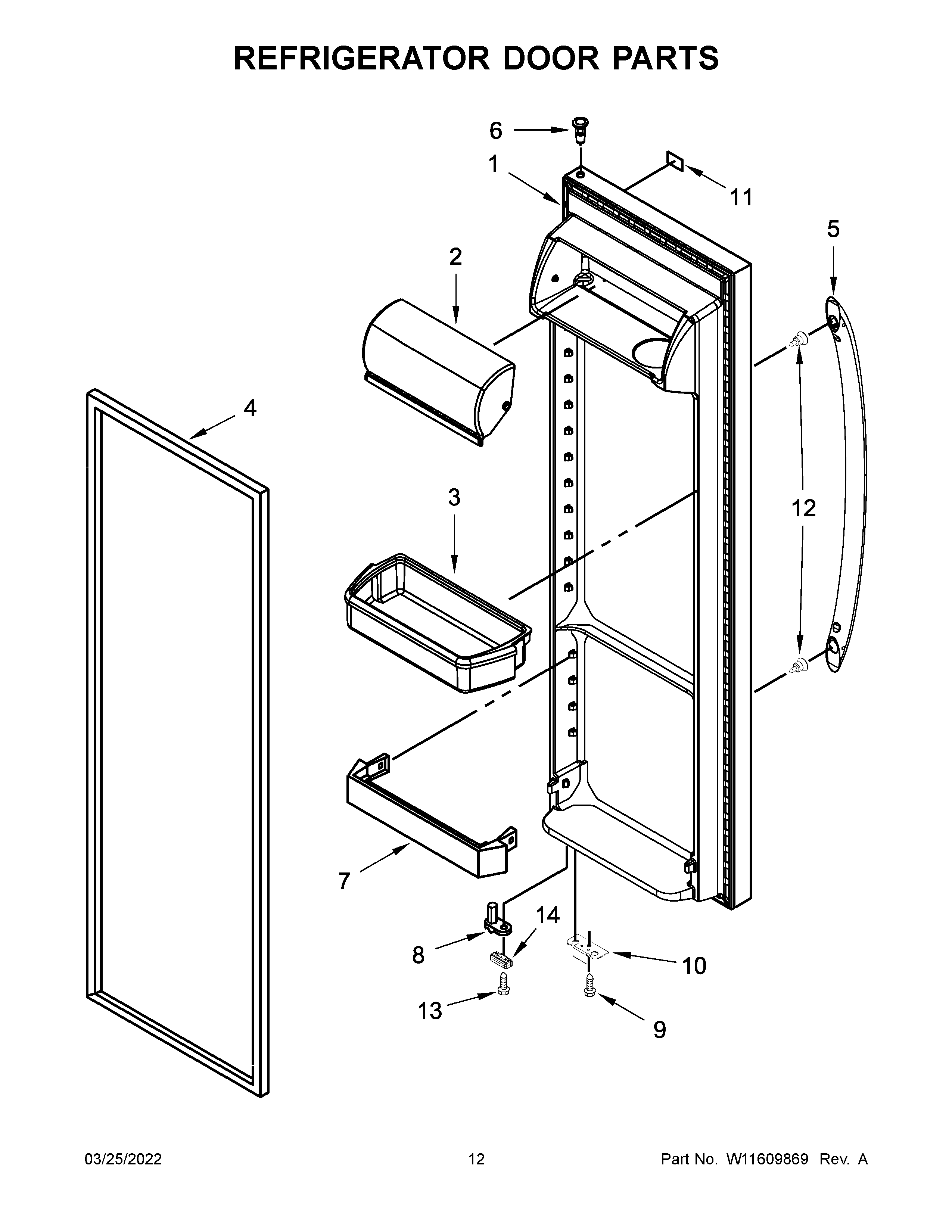

WRS331SDHM07 07 – REFRIGERATOR DOOR PARTS

WRS331SDHM07 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS331SDHM07 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
2WP2256101 Whirlpool Dairy Door
3BIN-CNTLVR
4W10136732 Whirlpool Refrigerator FIP Gasket
5W11542651 Whirlpool Door Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11223753 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10308489 Whirlpool Refrigerator Screw
14W11573367 Whirlpool Refrigerator Door Bumper
