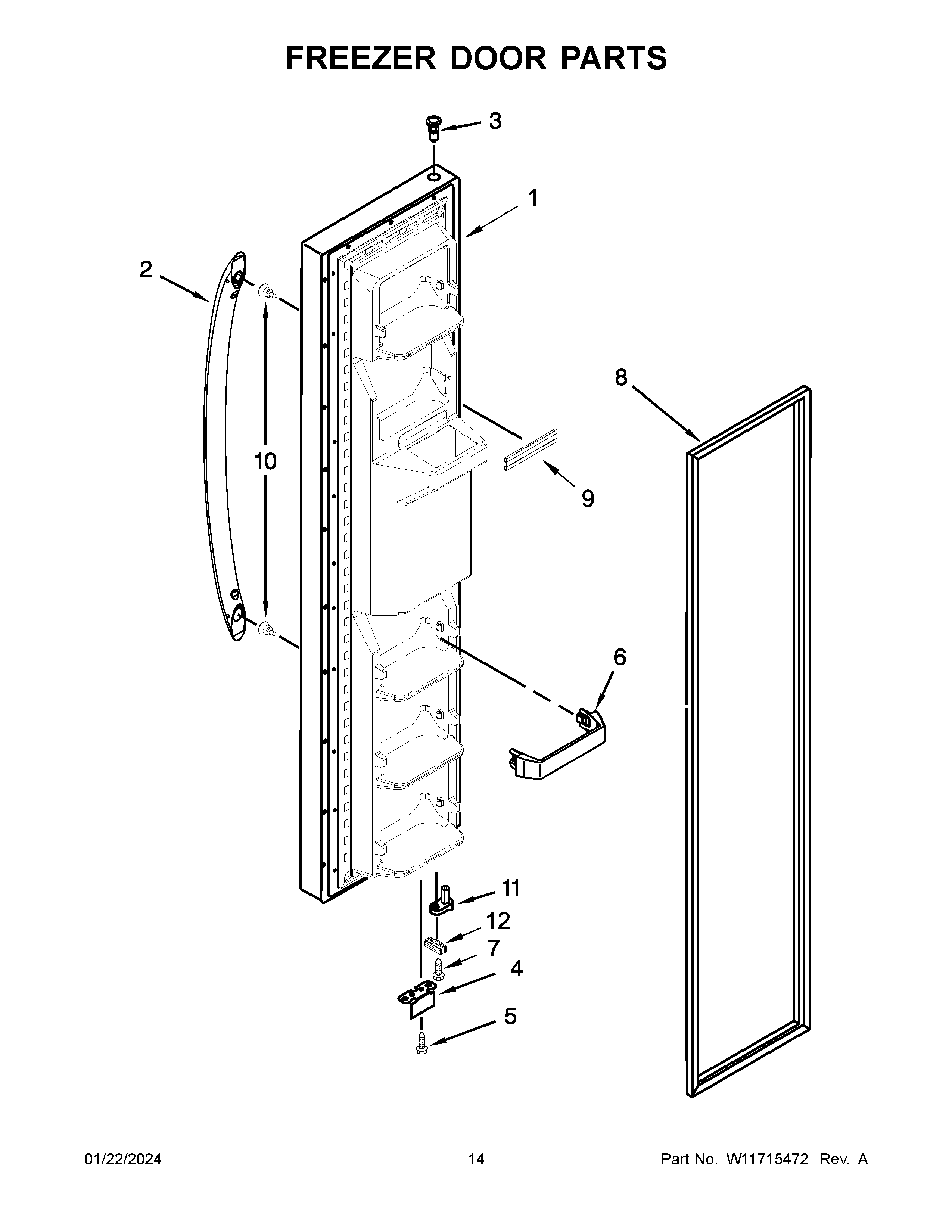

WRS331SDHM08 08 – FREEZER DOOR PARTS

WRS331SDHM08 08 – FREEZER DOOR PARTS

Written by

in

WRS331SDHM08 08 – FREEZER DOOR PARTS

Products

PositionProduct
1LW11026355 Whirlpool Refrigerator FIP Door
2W11542651 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W11557261 Whirlpool Refrigerator Bracket Assembly
5SCREW
6WP2309717 Whirlpool Refrigerator Door Trim
7WPW10296804 Whirlpool Refrigerator Screw
8W10136733 Whirlpool Refrigerator FIP Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11W11661926 Whirlpool Refrigerator Door Cam
12W11573367 Whirlpool Refrigerator Door Bumper
