WRS331SDHW00 03 – REFRIGERATOR LINER PARTS

WRS331SDHW00 03 – REFRIGERATOR LINER PARTS

Written by

in

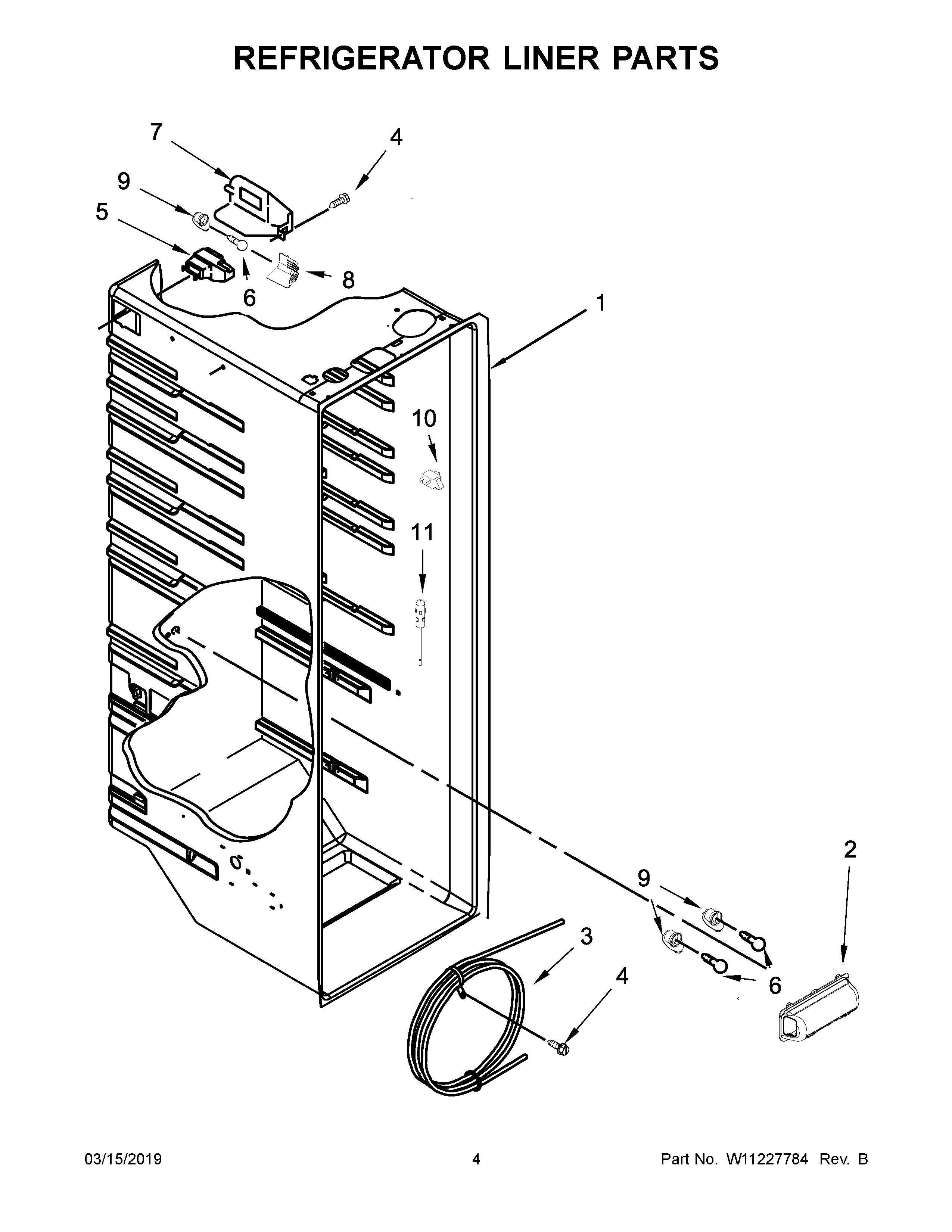

WRS331SDHW00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11239891 Whirlpool Refrigerator Light Lens
3W11579182 Whirlpool Refrigerator Reservoir
4W10141518 Whirlpool Refrigerator Screw
5W11645127 Whirlpool Diffuser
6W11216993 Whirlpool Refrigerator Light Bulb
7W11048608 Whirlpool Refrigerator Cover
8W10900030 Whirlpool Refrigerator Cover
94387478 Whirlpool Refrigerator Light Socket
10W11384469 Whirlpool Door Switch
11WPW10384183 Whirlpool Thermistor
