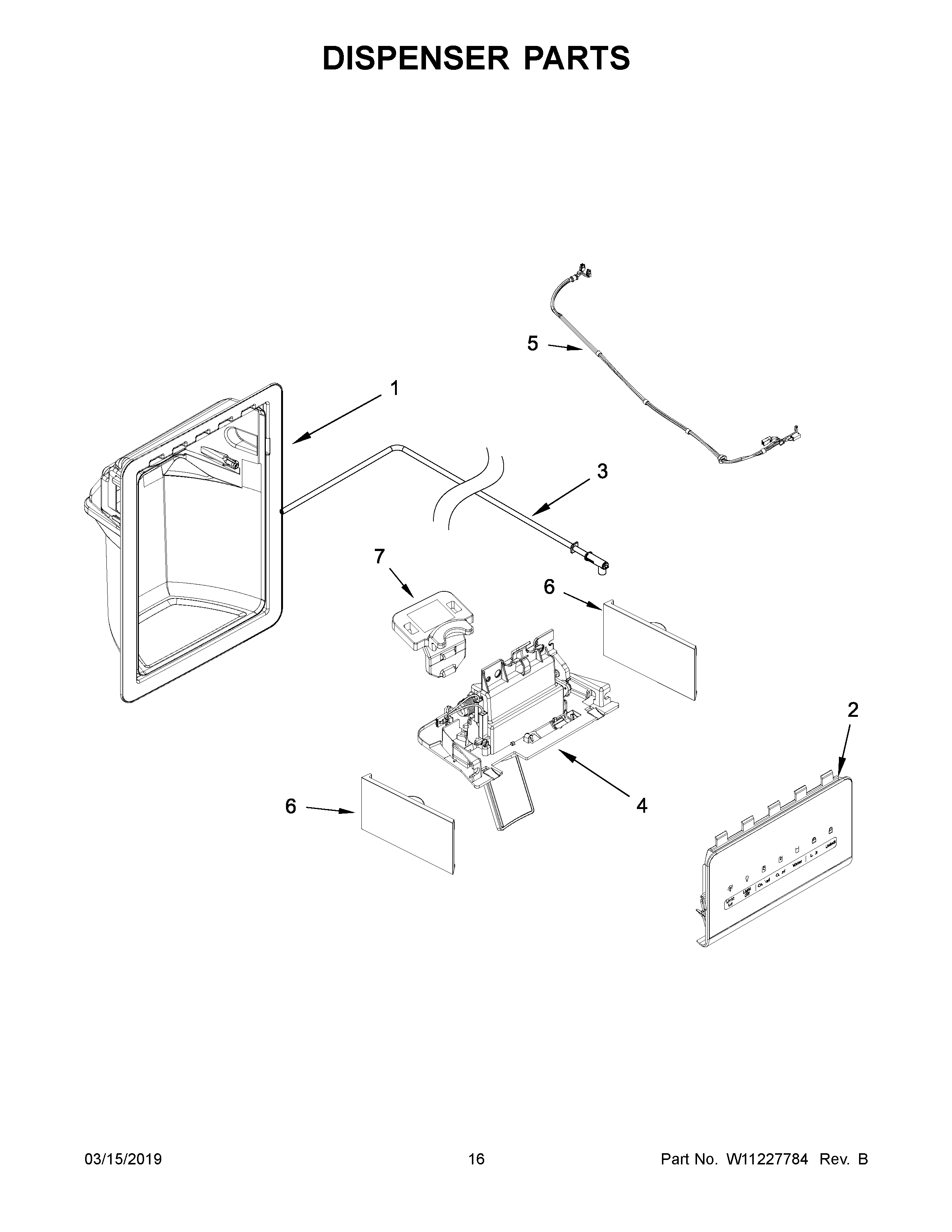

WRS331SDHW00 09 – DISPENSER PARTS

WRS331SDHW00 09 – DISPENSER PARTS

Written by

in

WRS331SDHW00 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W11518204-includeCORE Whirlpool W11518204 Refrigerator Electronic Control Board + Core
3W11163765 Whirlpool Refrigerator Fitting
4BDOOR-ICE
4AW11678833 Whirlpool Ice Door
4W11163767 Whirlpool Refrigerator Ice Door
5W10913117 Whirlpool Refrigerator Wire Harness
6AW11032331 Whirlpool Cover Assembly
6CW11311800 Whirlpool Refrigerator Cover
6BW11311799 Whirlpool Refrigerator Cover
6W11311797 Whirlpool Refrigerator Cover
7W11397167 Whirlpool Refrigerator Retainer
