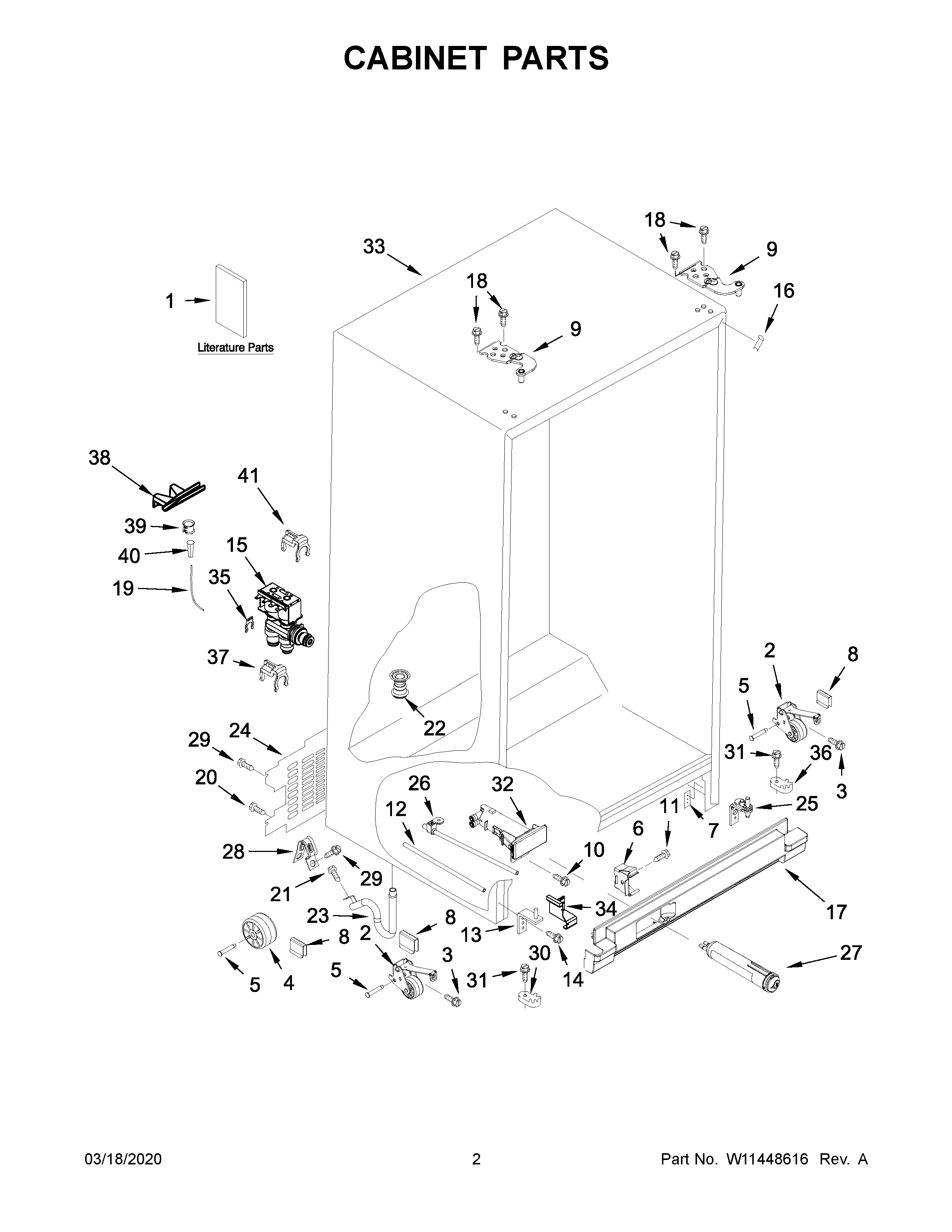

WRS331SDHW02 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	USE AND CARE GUIDE
1A	TECH SHEET
2A	WPW10304659 Whirlpool Wheel Assembly
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	W11036715 Whirlpool Refrigerator Plate
7A	W10904380 Whirlpool Plate
9E	W11505709 Whirlpool Refrigerator Door Hinge
9B	W10922216 Whirlpool Refrigerator Door Hinge
9D	W11579508 Whirlpool Top Hinge
9C	W10922217 Whirlpool Refrigerator Door Hinge
10	WP489500 Whirlpool Refrigerator Screw
11	WP489128 Whirlpool Refrigerator Screw
12	W11162036 Whirlpool Refrigerator Water Tube
13	W11687636 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10179146 Whirlpool Refrigerator Water Inlet Valve
16	W11219639 Whirlpool Refrigerator Filler
16B	W11219642 Whirlpool Refrigerator Filler
16A	W11219641 Whirlpool Refrigerator Filler
17B	W11282548 Whirlpool Refrigerator Grille
17	W11282549 Whirlpool Refrigerator Grille
17A	W11282556 Whirlpool Refrigerator Grille
18	WPW10308750 Whirlpool Refrigerator Screw
18A	WPW10308751 Whirlpool Screw
19	W10823511 Whirlpool Refrigerator Water Tube
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	W11613262 Whirlpool Unit Cover
25	W11399415 Whirlpool Refrigerator Door Hinge
26	W11162040 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	W11234470 Whirlpool Refrigerator Clamp
29	SCREW
30	W11679635 Whirlpool Door Cam
31	WP489483 Whirlpool Screw
32B	HOUSING
32	HOUSING
32A	HOUSING
33	CABINET (NOT A SERVICEABLE PART)
34	W10897565 Whirlpool Refrigerator Bracket
35A	W11678575 Whirlpool Ring
35	W11676611 Whirlpool Ring
36	CAM-DOOR
37	W11091654 Whirlpool Refrigerator Double Lock WTR Connect
38	W11505385 Whirlpool Refrigerator Chute
39	W10861184 Whirlpool Refrigerator Clamp
40	4387491 Whirlpool Refrigerator Insert
41	W11252188 Whirlpool Connector
