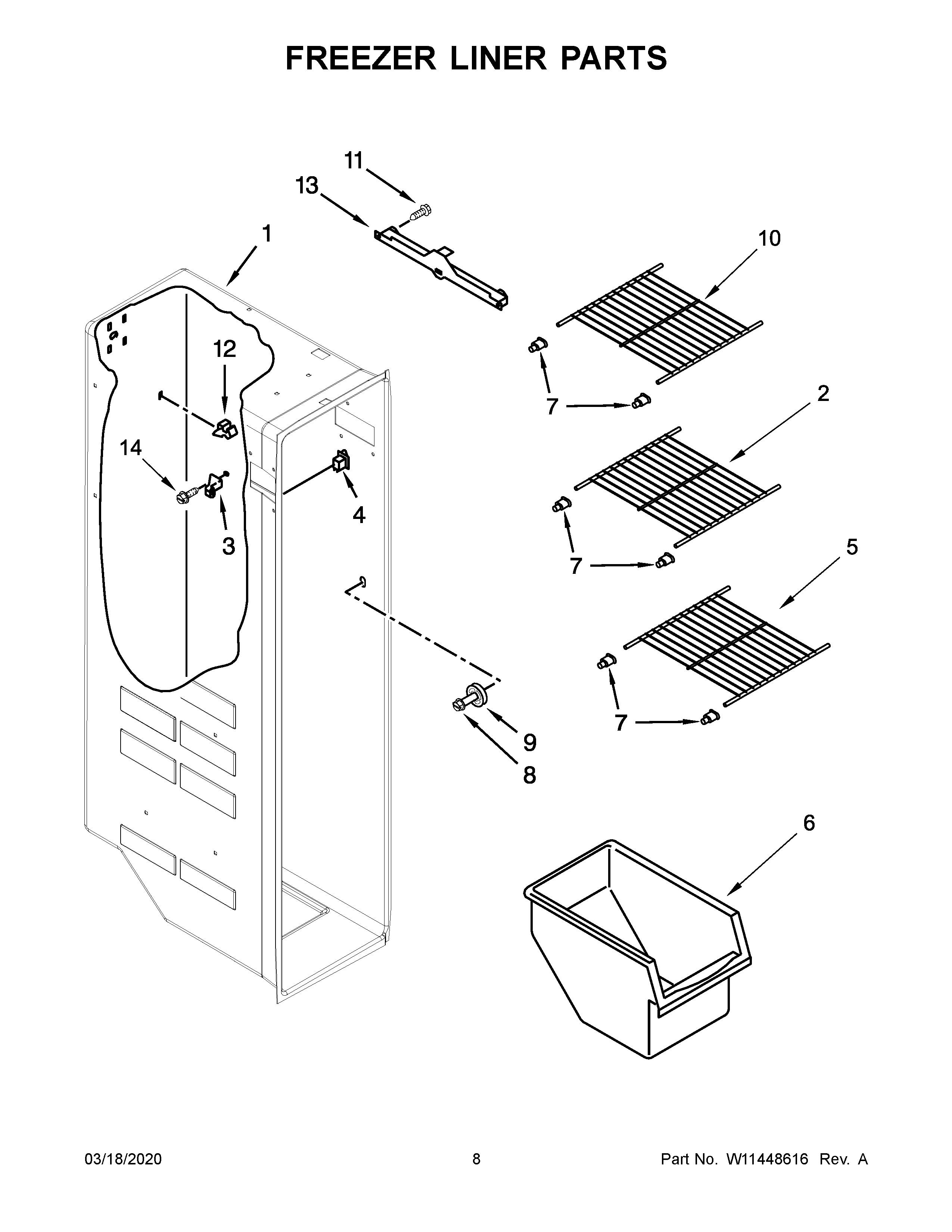

WRS331SDHW02 05 – FREEZER LINER PARTS

WRS331SDHW02 05 – FREEZER LINER PARTS

Written by

in

WRS331SDHW02 05 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10318953 Whirlpool Wire Shelf
34388405 Whirlpool Refrigerator Shelf Stud
4W11396033 Whirlpool Refrigerator Rocker Switch
5WPW10318952 Whirlpool Wire Shelf
6WP2309758 Whirlpool Refrigerator Freezer Bin
7WPW10130299 Whirlpool Refrigerator Cup
8WP3-24004-109 Whirlpool Refrigerator Screw
9W11223328 Whirlpool Refrigerator Shelf Stud
10WPW10318960 Whirlpool Wire Shelf
11718257 Whirlpool Dishwasher Screw
122215823 Whirlpool Refrigerator Clip
13AW10845583 Whirlpool Refrigerator Track
13W10845585 Whirlpool Refrigerator Track
14W10142289 Whirlpool Air Conditioner Screw
