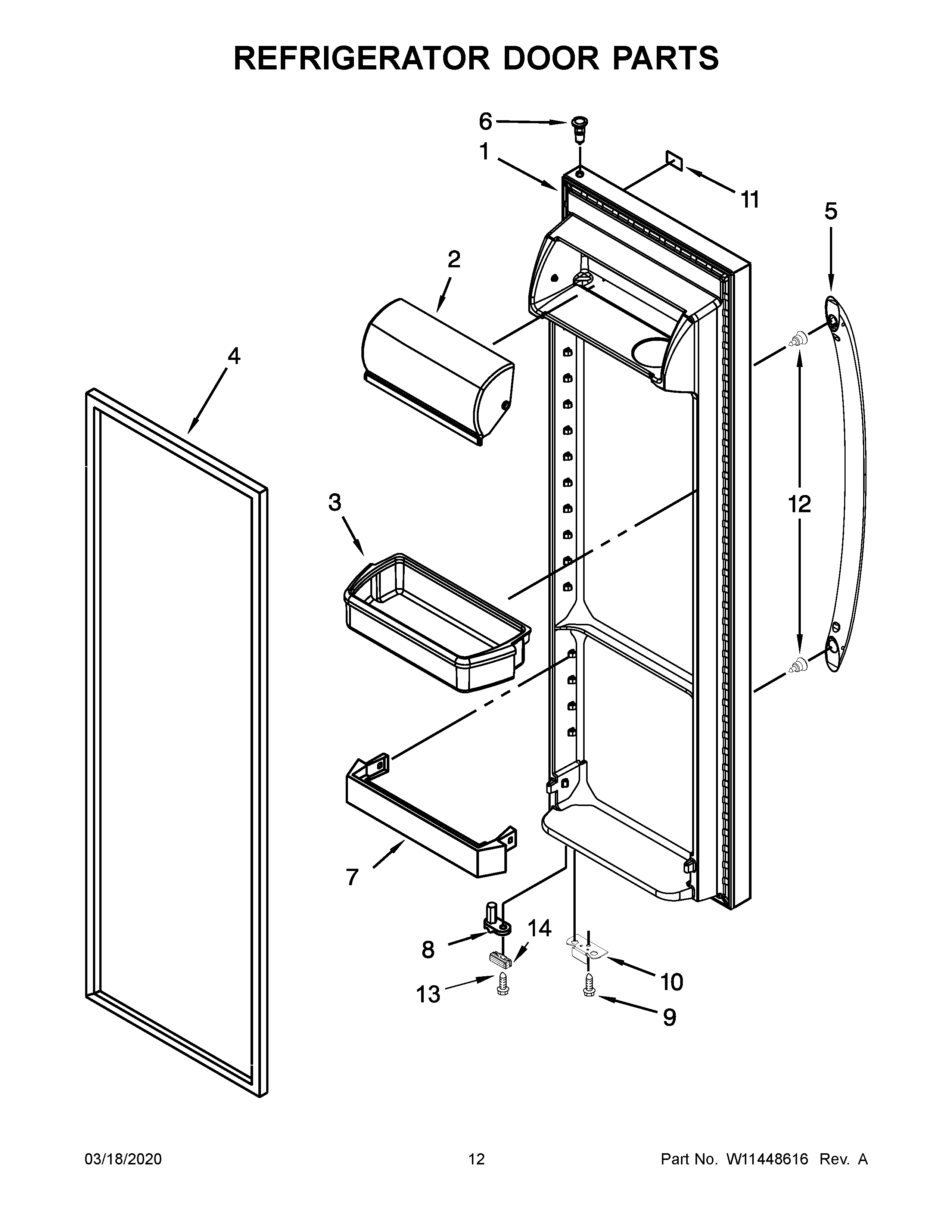

WRS331SDHW02 07 – REFRIGERATOR DOOR PARTS

WRS331SDHW02 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS331SDHW02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1BLW10912313 Whirlpool Refrigerator Door FIP
1ALW10912374 Whirlpool Refrigerator Door FIP
1LW10912366 Whirlpool Refrigerator DOR-FIP
2WP2256101 Whirlpool Dairy Door
3BIN-CNTLVR
4BW10136732 Whirlpool Refrigerator FIP Gasket
42159073 Whirlpool Refrigerator Door Gasket
4A2159081 Whirlpool Refrigerator Door Gasket
5AW11450221 Whirlpool Handle
5BHANDLE-REFRIGERATOR SS
5W11432251 Whirlpool Refrigerator Handle
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11223753 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13BWPW10308489 Whirlpool Refrigerator Screw
13WPW10142283 Whirlpool Refrigerator Screw
13AWP98008545 Whirlpool Screw
14BUMPER, DOOR (WHITE)
14BW11573367 Whirlpool Refrigerator Door Bumper
14AW10407187 Whirlpool Refrigerator Door Bumper
