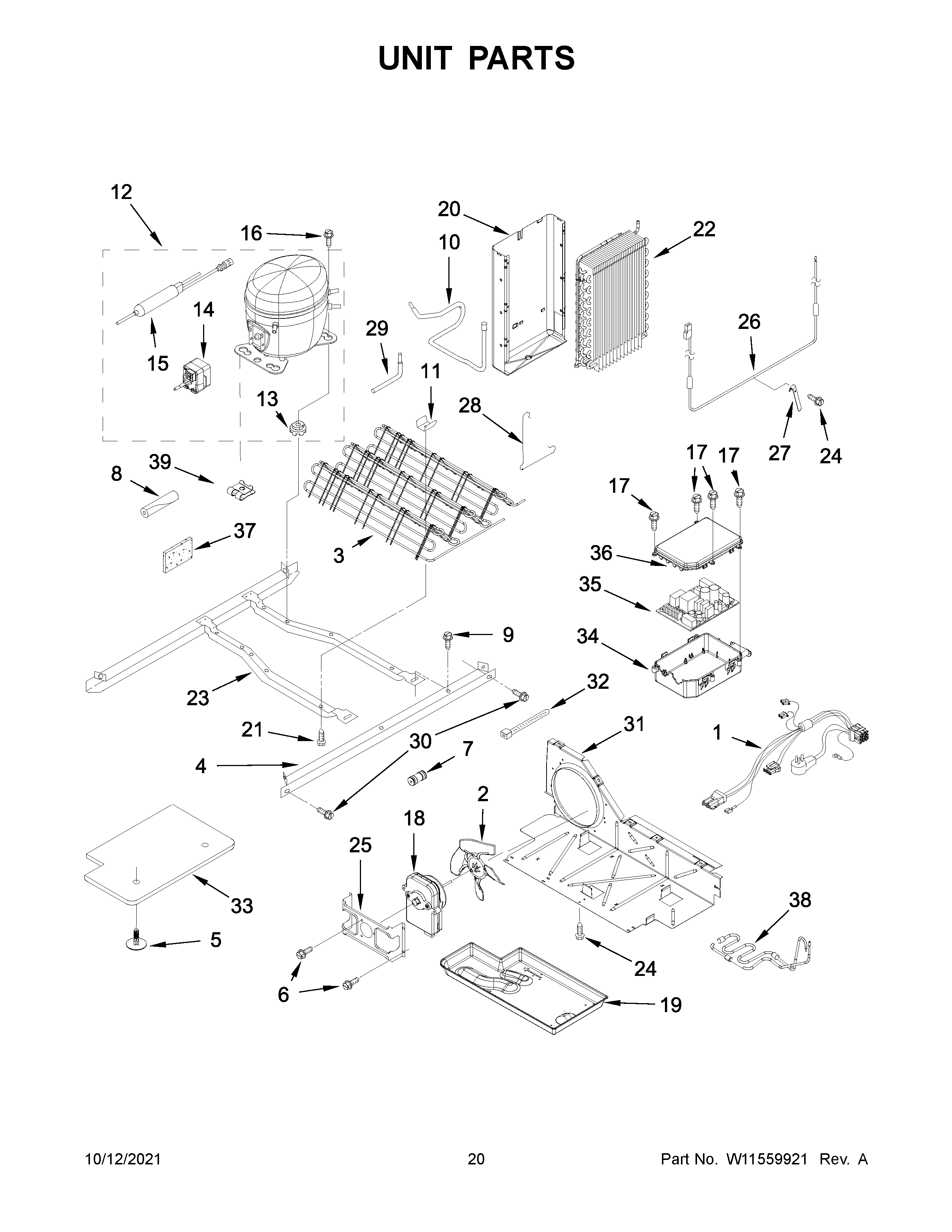

WRS331SDHW06 11 – UNIT PARTS

WRS331SDHW06 11 – UNIT PARTS

Written by

in

WRS331SDHW06 11 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W11609465 Whirlpool Refrigerator Wire Harness
2	W11458267 Whirlpool Refrigerator Fan Blade
3A	W11506623 Whirlpool Refrigerator Coupler
3B	W11504445 Whirlpool Refrigerator Coupler
3	W11632924 Whirlpool Condenser
4	W10905882 Whirlpool Unit Rail
5	489396 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	TUBE, SUCTION
11	W10683556 Whirlpool Refrigerator Clip
12C	COUPLER
12A	W11504415 Whirlpool Refrigerator Coupler
12B	W11504431 Whirlpool Microwave Coupler
12	W11557671 Whirlpool Refrigerator Compressor
13	WPW10169124 Whirlpool Refrigerator Grommet
14	W11546982 Whirlpool Refrigerator Inverter Assembly
15A	W11504433 Whirlpool Refrigerator Coupler
15	W11109499 Whirlpool Refrigerator Tube
15B	W11504447 Whirlpool Refrigerator Coupler
16	SCREW
17	WPW10171469 Whirlpool Refrigerator Screw
18	W11578915 Whirlpool Condenser Motor
19	W11164129 Whirlpool Refrigerator Evaporator Tray
20	ASSEMBLY, HEAT SHIELD AND DRAIN PAN
21	W11544659 Whirlpool Refrigerator Screw
22	W11546605 Whirlpool Refrigerator Evaporator
22A	W11504448 Whirlpool Refrigerator Coupler
22B	W11506620 Whirlpool Refrigerator Coupler
23	W10905880 Whirlpool Refrigerator Frame
24	WP489478 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	W11650659 Whirlpool Heater Assembly
27	HEAT PROBE
28	W11623163 Whirlpool Refrigerator Clip
29	W11558176 Whirlpool Tube
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	WPW10339879 Whirlpool Wire Tie
33	W10905940 Whirlpool Refrigerator Unit Cover
34	2323186 Whirlpool Refrigerator Housing
35	W11742389-includeCORE Whirlpool W11742389 Dishwasher Electronic Control Core
36	W10313215 Whirlpool Refrigerator Box Cover
37	W11553819 Whirlpool Refrigerator Insulation
38	W11678305 Whirlpool Tube
39	W10697017 Whirlpool Clip
