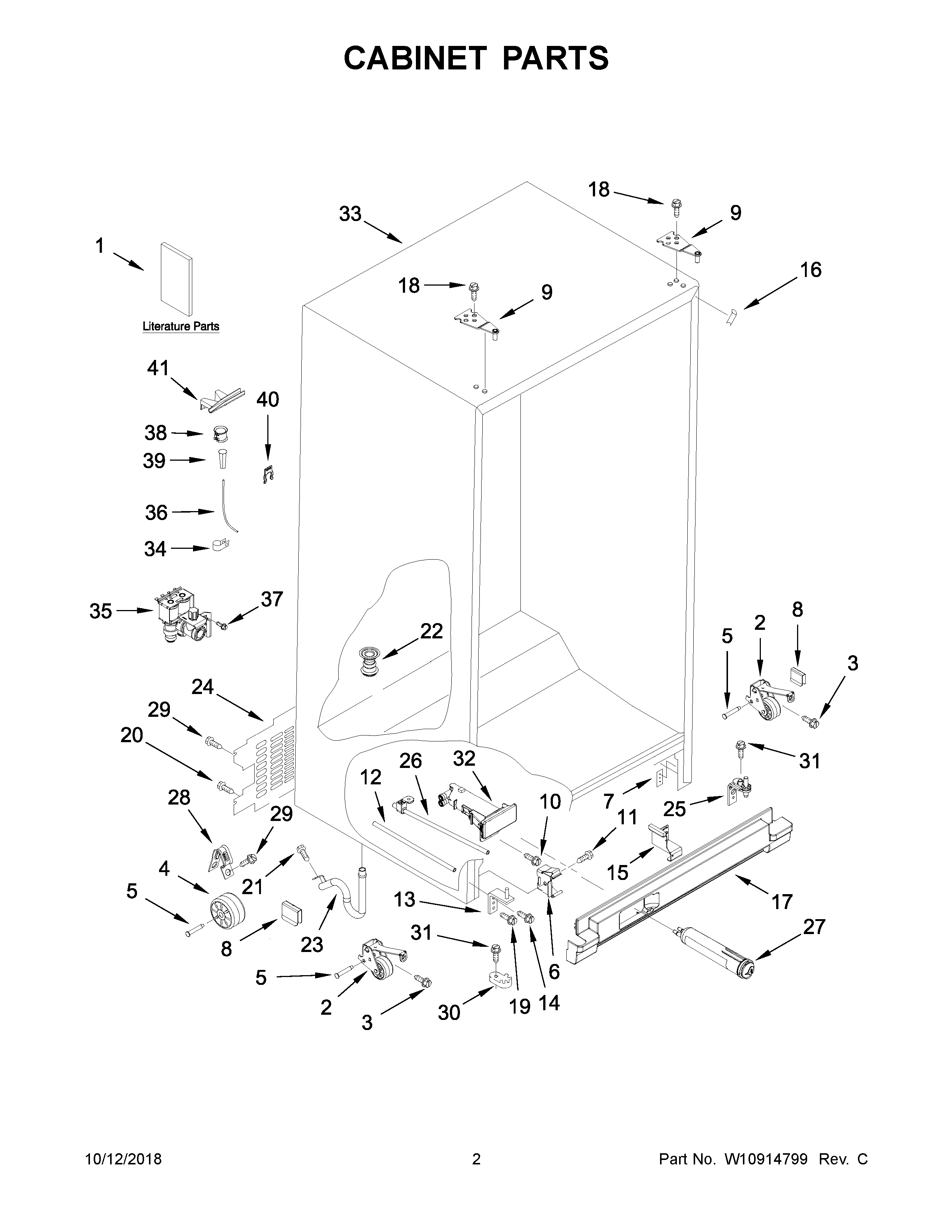

WRS335FDDB01 02 – CABINET PARTS

WRS335FDDB01 02 – CABINET PARTS

Written by

in

WRS335FDDB01 02 – CABINET PARTS

Products

PositionProduct
1BENERGY GUIDE
1ATECH SHEET
1USE AND CARE GUIDE
2WPW10304660 Whirlpool Wheel Assembly
2AWPW10304659 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP2304249 Whirlpool Refrigerator Plate
9AW11579508 Whirlpool Top Hinge
9BW11164088 Whirlpool Refrigerator Door Hinge
10WP489500 Whirlpool Refrigerator Screw
11WPW10141604 Whirlpool Screw
12WPW10350006 Whirlpool Refrigerator Water Tube
13W10646418 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15W10355758 Whirlpool Refrigerator Bracket
16BW11219642 Whirlpool Refrigerator Filler
16AW11219641 Whirlpool Refrigerator Filler
16W11219639 Whirlpool Refrigerator Filler
17BGRILLE (GREY)
17AGRILLE (BLACK)
17GRILLE (WHITE)
18AWPW10308751 Whirlpool Screw
18WPW10308750 Whirlpool Refrigerator Screw
19W10856122 Whirlpool Refrigerator Screw
20WP488488 Whirlpool Refrigerator Screw
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24WP2188755 Whirlpool Rear Panel
25W11049959 Whirlpool Refrigerator Hinge
26WPW10350007 Whirlpool Refrigerator Water Tube
27EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28549193 Whirlpool Refrigerator Power Clamp
29SCREW
30W10846218 Whirlpool Refrigerator Door Cam
31WP489483 Whirlpool Screw
32BHOUSING-WATER FILTER
32W10862456 Whirlpool Water Filter Housing
32AHOUSING-WATER FILTER
33CABINET (NOT A SERVICEABLE PART)
34W11456069 Whirlpool Refrigerator Clamp
35WPW10179146 Whirlpool Refrigerator Water Inlet Valve
36W10823511 Whirlpool Refrigerator Water Tube
37WPW10141625 Whirlpool Refrigerator Screw Assembly
38W10861184 Whirlpool Refrigerator Clamp
394387491 Whirlpool Refrigerator Insert
40AW11678575 Whirlpool Ring
40W11676611 Whirlpool Ring
41W11505385 Whirlpool Refrigerator Chute
