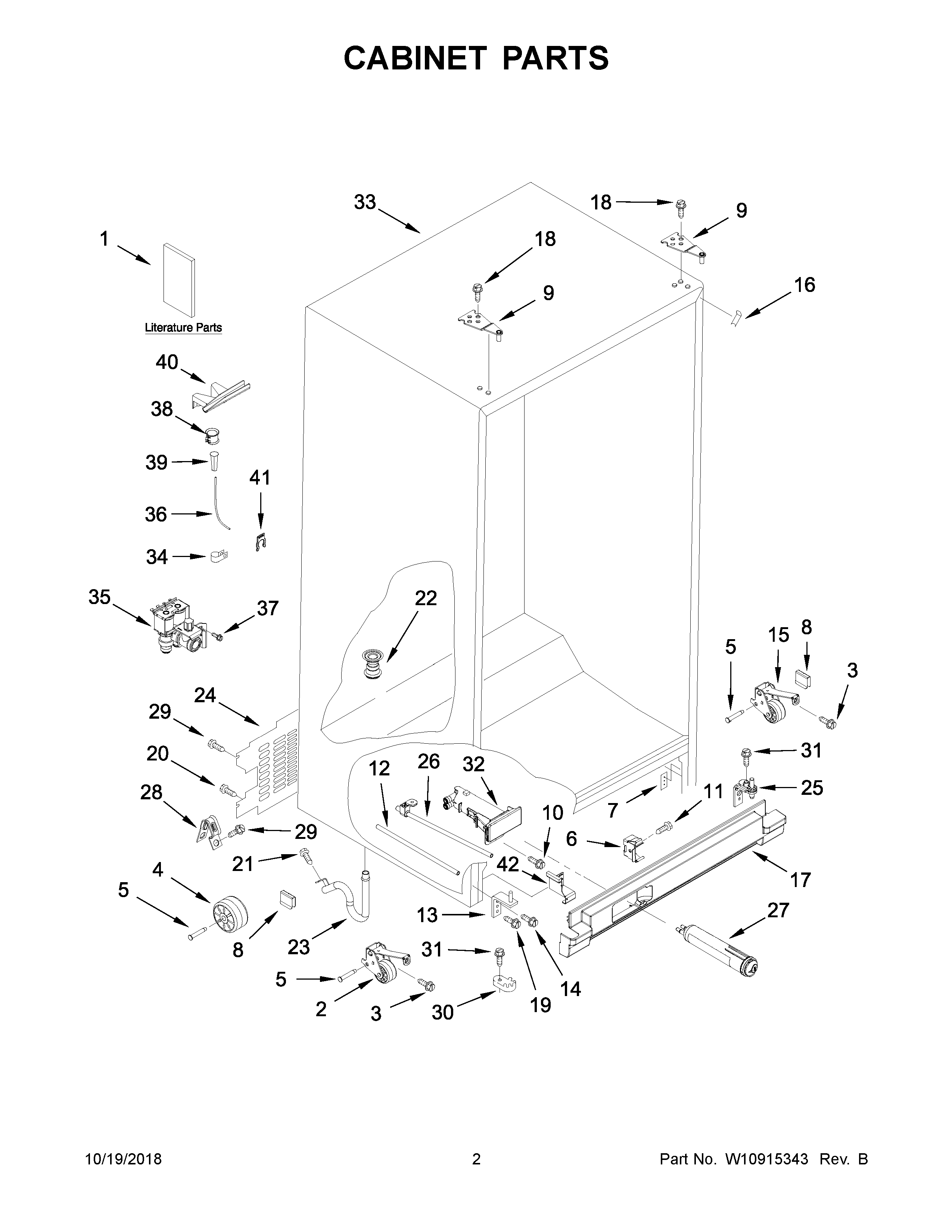

WRS335FDDB02 02 – CABINET PARTS

WRS335FDDB02 02 – CABINET PARTS

Written by

in

WRS335FDDB02 02 – CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1	USE AND CARE GUIDE
1A	TECH SHEET
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
9	W11579508 Whirlpool Top Hinge
10	WP489500 Whirlpool Refrigerator Screw
11	WPW10141604 Whirlpool Screw
12	WPW10350006 Whirlpool Refrigerator Water Tube
13	W10646418 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16	W11219641 Whirlpool Refrigerator Filler
17	GRILLE (BLACK)
18	WPW10308751 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	WP2188755 Whirlpool Rear Panel
25	W11049959 Whirlpool Refrigerator Hinge
26	WPW10350007 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	549193 Whirlpool Refrigerator Power Clamp
29	SCREW
30	W10846218 Whirlpool Refrigerator Door Cam
31	WP489483 Whirlpool Screw
32	HOUSING-WATER FILTER
33	CABINET (NOT A SERVICEABLE PART)
34	W11456069 Whirlpool Refrigerator Clamp
35	WPW10179146 Whirlpool Refrigerator Water Inlet Valve
36	W10823511 Whirlpool Refrigerator Water Tube
37	WPW10141625 Whirlpool Refrigerator Screw Assembly
38	W10861184 Whirlpool Refrigerator Clamp
39	4387491 Whirlpool Refrigerator Insert
40	W11505385 Whirlpool Refrigerator Chute
41A	W11678575 Whirlpool Ring
41	W11676611 Whirlpool Ring
42	W10355758 Whirlpool Refrigerator Bracket
