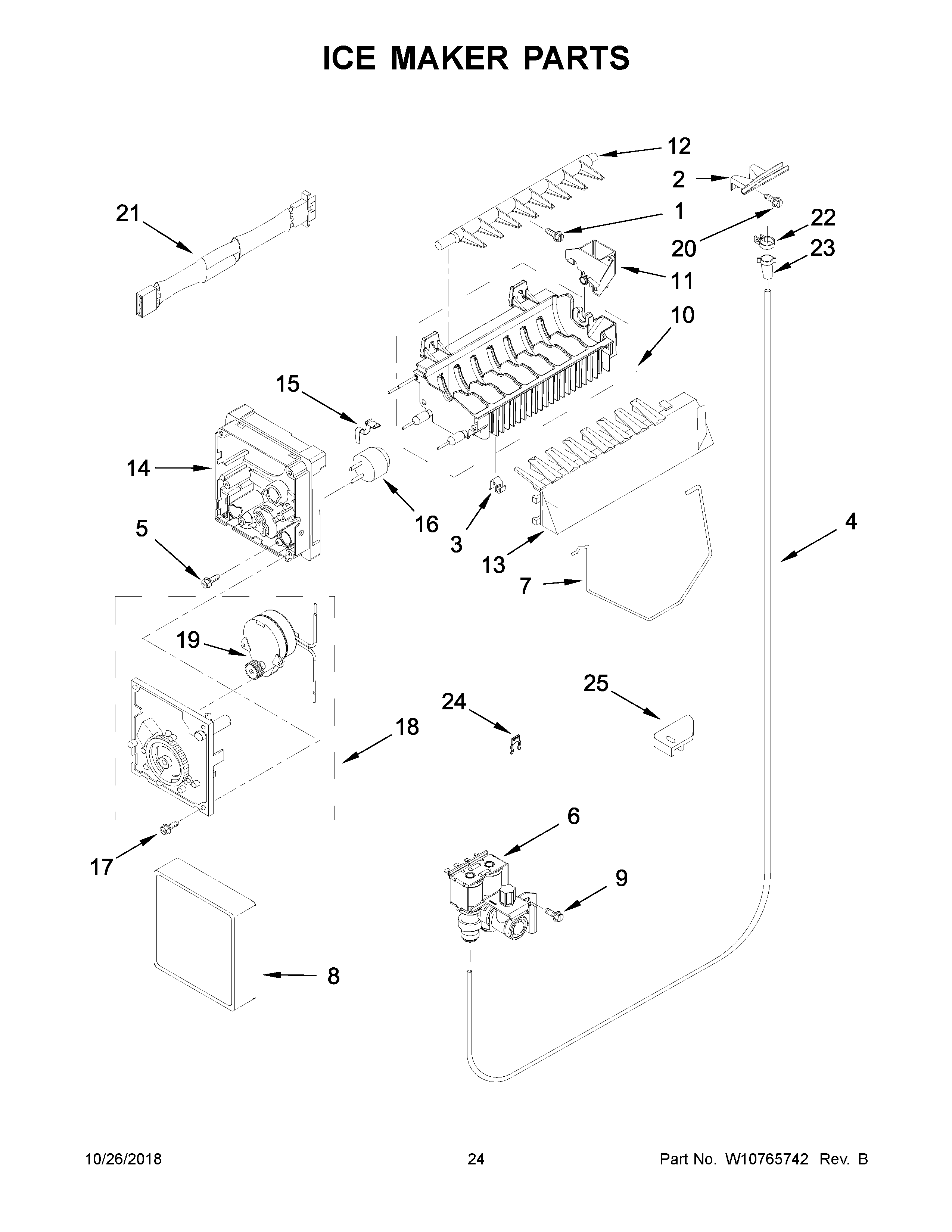

WRS335FDDW00 13 – ICE MAKER PARTSadmin2025-04-26T11:08:37+00:00WRS335FDDW00 13 – ICE MAKER PARTS ProductsPositionProduct1WP488163 Whirlpool Refrigerator Screw2W11505385 Whirlpool Refrigerator Chute3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5W10001280 Whirlpool Refrigerator Screw6WPW10179146 Whirlpool Refrigerator Water Inlet Valve7W11559683 Whirlpool Ice Level Arm8WPW10289690 Whirlpool Ice Maker Cover9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10300025 Whirlpool Refrigerator Ice Mold11W11676540 Whirlpool Refrigerator Cup Fill12W10318914 Whirlpool Refrigerator Ejector Arm13W10788834 Whirlpool Strip Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP2321258 Whirlpool Refrigerator Bimetallic Defrost Assembly17W10001240 Whirlpool Refrigerator Screw188201515 Whirlpool Refrigerator Motor and Gear Module Kit19CABINET (NOT A SERVICEABLE PART)20SCREW21W10838084 Whirlpool Refrigerator Wire Harness22W10861184 Whirlpool Refrigerator Clamp234387491 Whirlpool Refrigerator Insert24AW11676611 Whirlpool Ring24W11678575 Whirlpool Ring25W11500948 Whirlpool Refrigerator Bracket100WPW10300022 Whirlpool Refrigerator Ice Maker Assembly
