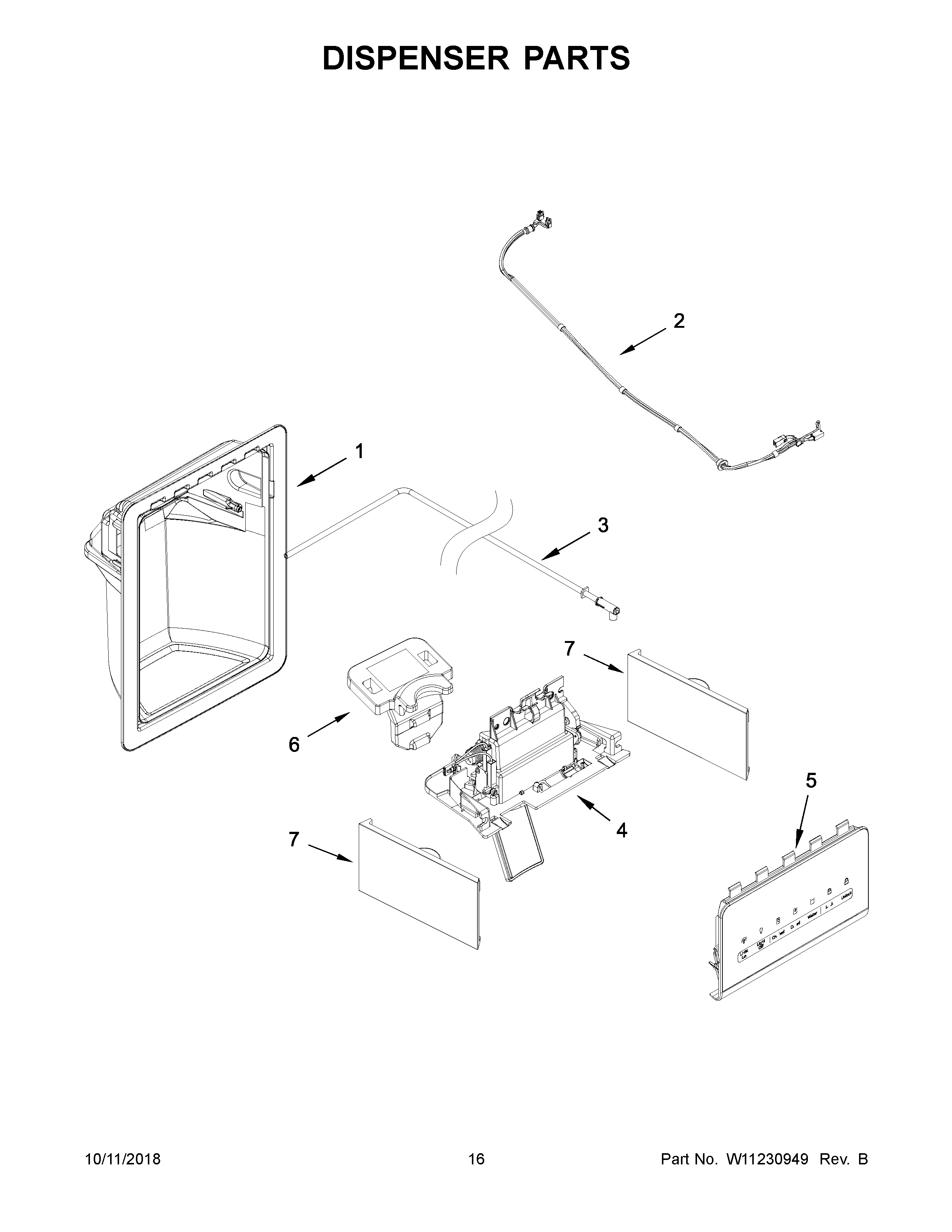

WRS335SDHB00 09 – DISPENSER PARTS

WRS335SDHB00 09 – DISPENSER PARTS

Written by

in

WRS335SDHB00 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10913117 Whirlpool Refrigerator Wire Harness
3W11163765 Whirlpool Refrigerator Fitting
4BDOOR-ICE
4AW11678833 Whirlpool Ice Door
4DOOR-ICE
5W11518204-includeCORE Whirlpool W11518204 Refrigerator Electronic Control Board + Core
6W11397167 Whirlpool Refrigerator Retainer
7W11311797 Whirlpool Refrigerator Cover
7AW11311800 Whirlpool Refrigerator Cover
7CW11311799 Whirlpool Refrigerator Cover
7BW11311798 Whirlpool Cover Assembly
