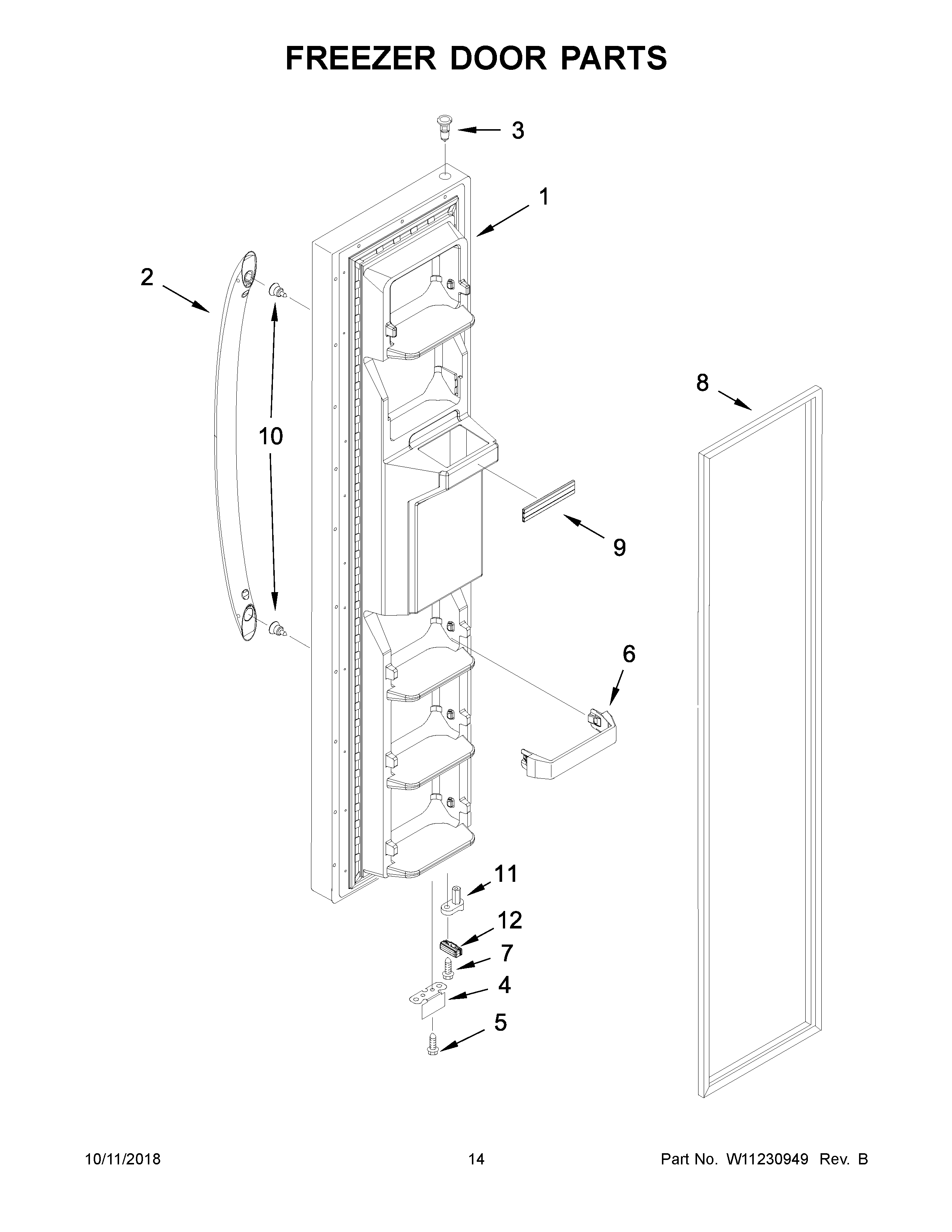

WRS335SDHM00 08 – FREEZER DOOR PARTS

WRS335SDHM00 08 – FREEZER DOOR PARTS

Written by

in

WRS335SDHM00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BLW10904379 Whirlpool Refrigerator FIP Door
1ALW11026364 Whirlpool Refrigerator FIP Door
1LW11026363 Whirlpool Refrigerator Door FIP
2BHANDLE-REFRIGERATOR SS
2AW11450221 Whirlpool Handle
2W11432251 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4W11557261 Whirlpool Refrigerator Bracket Assembly
5SCREW
6WP2309718 Whirlpool Refrigerator Door Trim
7WPW10296804 Whirlpool Refrigerator Screw
8BW10136735 Whirlpool Refrigerator Door Gasket
8A2159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11W11661926 Whirlpool Refrigerator Door Cam
12BW11573367 Whirlpool Refrigerator Door Bumper
12BUMPER, DOOR (WHITE)
12AW10407187 Whirlpool Refrigerator Door Bumper
