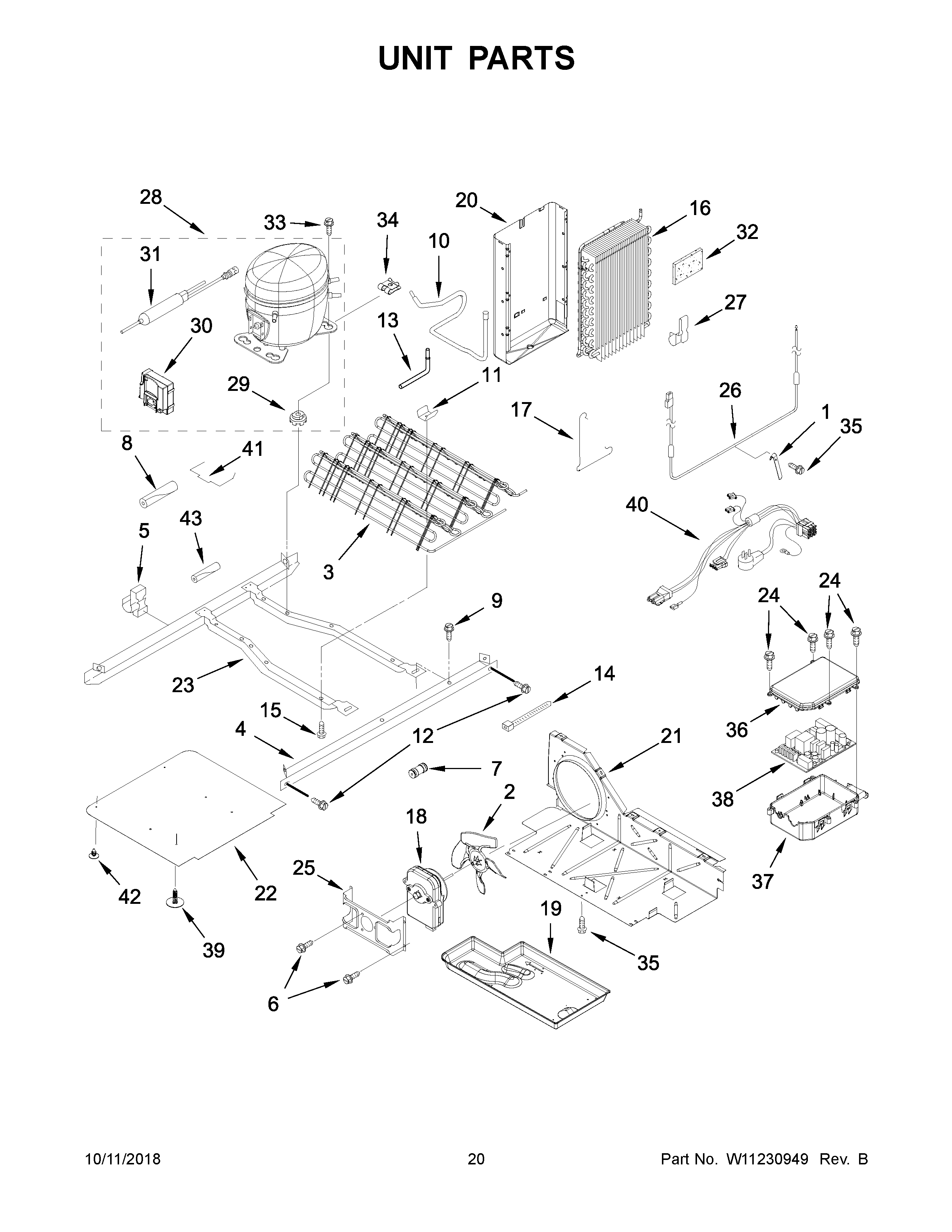

WRS335SDHW00 11 – UNIT PARTS

WRS335SDHW00 11 – UNIT PARTS

Written by

in

WRS335SDHW00 11 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11632924 Whirlpool Condenser
4	W10900442 Whirlpool Refrigerator Unit Rail
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W10745337 Whirlpool Tube
11	W10683556 Whirlpool Refrigerator Clip
12	489340 Whirlpool Refrigerator Screw
13	W10858105 Whirlpool Refrigerator Tube
15	W11544659 Whirlpool Refrigerator Screw
16	WP2188823 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11578915 Whirlpool Condenser Motor
19	W11164129 Whirlpool Refrigerator Evaporator Tray
20	W10194475 Whirlpool Refrigerator Shield
21	W10896764 Whirlpool Refrigerator Air Baffle
22	W10897560 Whirlpool Refrigerator Unit Cover
23	W10900446 Whirlpool Frame Assembly
24	WPW10171469 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	WP2323198 Whirlpool Refrigerator Heater
27	W11623163 Whirlpool Refrigerator Clip
28	W10276644 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W10920537 Whirlpool Refrigerator Inverter Box
31	WPW10143759 Whirlpool Dryer Filter
32	W11553819 Whirlpool Refrigerator Insulation
33	SCREW
34	W10697017 Whirlpool Clip
35	WP489464 Whirlpool Refrigerator Screw
36	W10334855 Whirlpool Refrigerator Cover
37	2323186 Whirlpool Refrigerator Housing
38	W11449482 Whirlpool Control Board
39	489396 Whirlpool Refrigerator Clip
40	W11490168 Whirlpool Wire Harness
41	WPW10339879 Whirlpool Wire Tie
42	Clip, Push-In Retainer
43	2264838 Whirlpool Refrigerator Sleeve
44	W11678305 Whirlpool Tube
