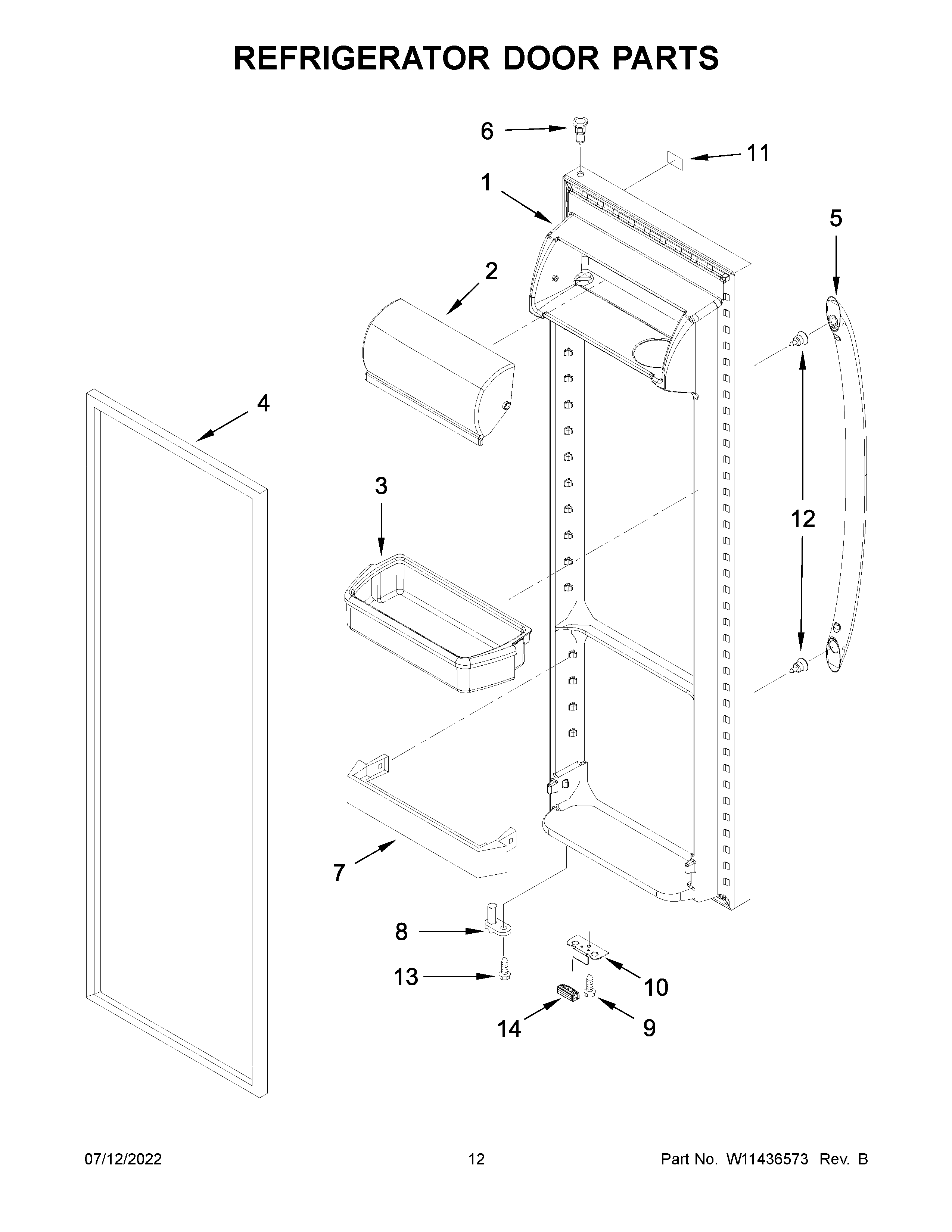

WRS335SDHW02 07 – REFRIGERATOR DOOR PARTS

WRS335SDHW02 07 – REFRIGERATOR DOOR PARTS

Written by

in

WRS335SDHW02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW10912075 Whirlpool Refrigerator Door Frame
1LW10912118 Whirlpool Refrigerator Door FIP
1ALW10912126 Whirlpool Refrigerator Door Assembly (Black)
1BLW10912135 Whirlpool Refrigerator DOR FIP
2WP2256101 Whirlpool Dairy Door
3BIN-CNTLVR
4B2159074 Whirlpool Door Gasket Seal
4A2159083 Whirlpool Gasket Door
42159075 Whirlpool Door Gasket Seal
4CWPW10136734 Whirlpool Refrigerator Door Gasket
5W11432251 Whirlpool Refrigerator Handle
5CW11542651 Whirlpool Door Handle
5AW11450221 Whirlpool Handle
5BHANDLE (BISCUIT)
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11W11223753 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10296804 Whirlpool Refrigerator Screw
14BUMPER, DOOR (WHITE)
14AW10407187 Whirlpool Refrigerator Door Bumper
14CW11573367 Whirlpool Refrigerator Door Bumper
14BW10407203 Whirlpool Refrigerator Door Bumper
