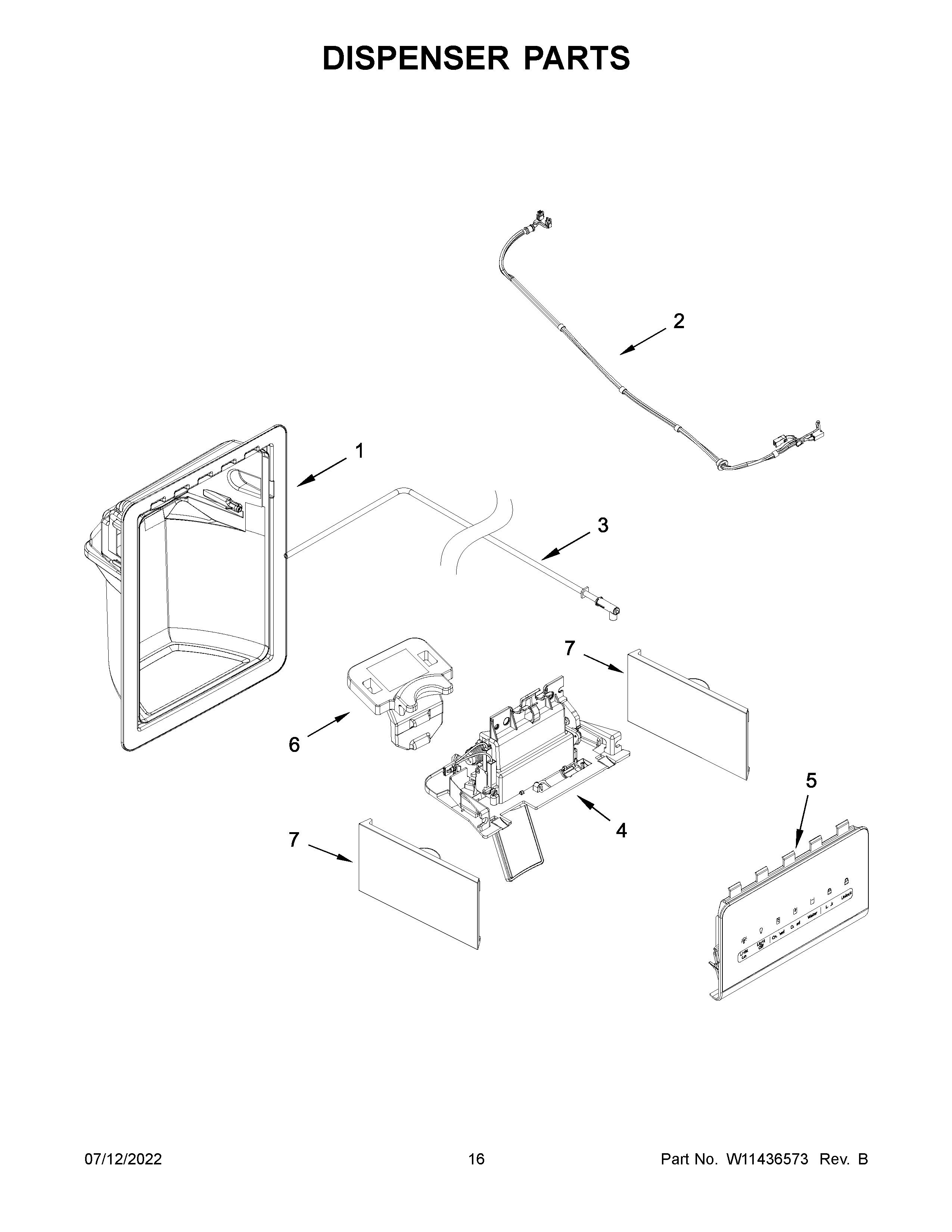

WRS335SDHW02 09 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10913117 Whirlpool Refrigerator Wire Harness
3W11163765 Whirlpool Refrigerator Fitting
4CDOOR-ICE
4BW11423786 Whirlpool Ice Door Assembly
4AW11678833 Whirlpool Ice Door
4DOOR-ICE
5W11518204-includeCORE Whirlpool W11518204 Refrigerator Electronic Control Board + Core
6W11397167 Whirlpool Refrigerator Retainer
7CW11311800 Whirlpool Refrigerator Cover
7W11311797 Whirlpool Refrigerator Cover
7AW11311798 Whirlpool Cover Assembly
7BW11311799 Whirlpool Refrigerator Cover
7DCOVER, DISPENSER FRONT (BISCUIT (LEFT HAND))
7ECOVER, DISPENSER FRONT (BISCUIT (RIGHT HAND))
