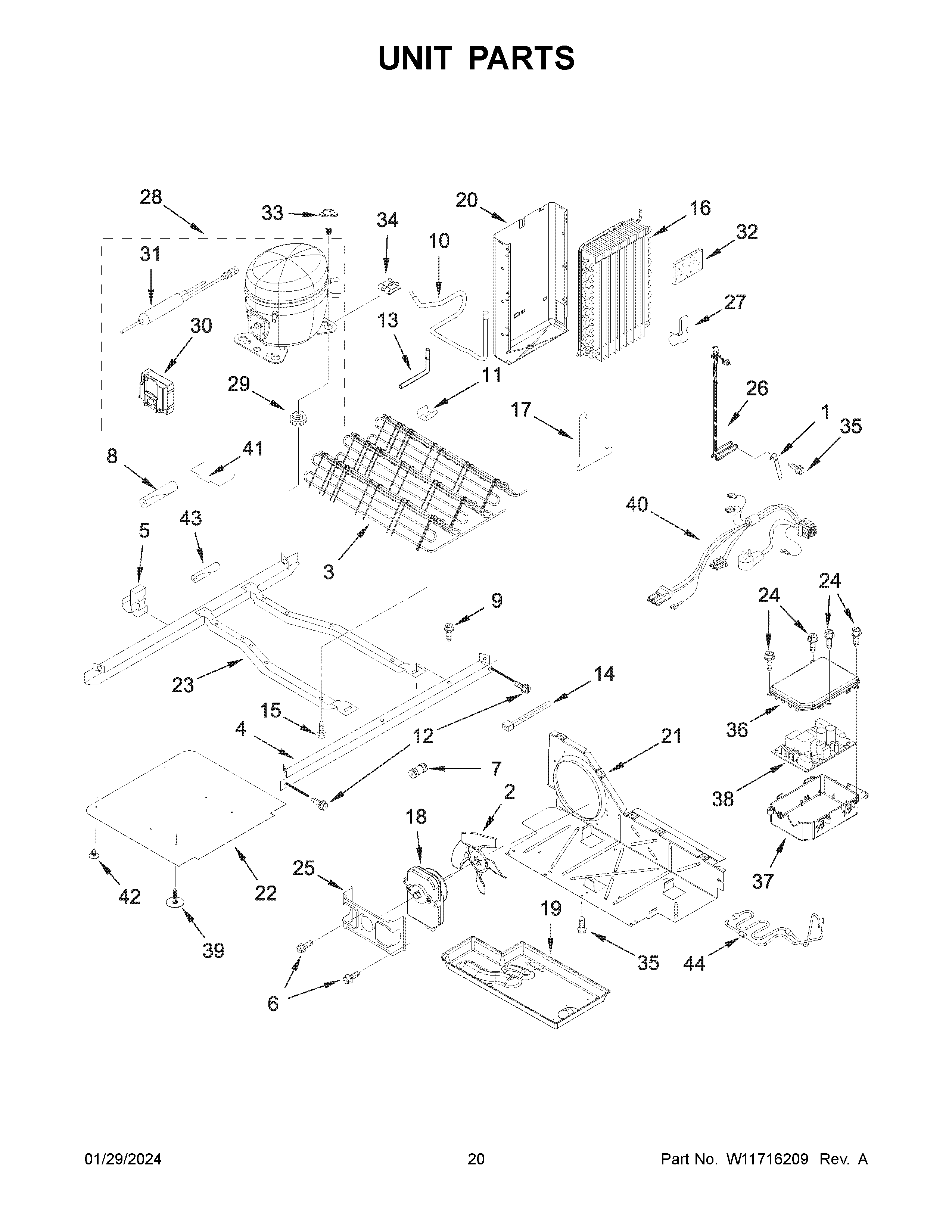

WRS335SDHW07 11 – UNIT PARTS

WRS335SDHW07 11 – UNIT PARTS

Written by

in

WRS335SDHW07 11 – UNIT PARTS

Products

Position	Product
NI	WPL ARIEECA0D5508F01B518BF1EC83A36EF0B0
1	HEAT PROBE
2	W11458267 Whirlpool Refrigerator Fan Blade
3A	W11506623 Whirlpool Refrigerator Coupler
3B	W11504445 Whirlpool Refrigerator Coupler
3	W11632924 Whirlpool Condenser
4	W10900442 Whirlpool Refrigerator Unit Rail
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W11547179 Whirlpool Tube
11	W10683556 Whirlpool Refrigerator Clip
12	489340 Whirlpool Refrigerator Screw
13	W11558176 Whirlpool Tube
15	W11544659 Whirlpool Refrigerator Screw
16A	W11504448 Whirlpool Refrigerator Coupler
16B	W11506620 Whirlpool Refrigerator Coupler
16	W11546692 Whirlpool Refrigerator Evaporator
17	Clamp
18	W11578915 Whirlpool Condenser Motor
19	TRAY, EVAPORATOR
20	W11400740 Whirlpool Shield
21	W10896764 Whirlpool Refrigerator Air Baffle
22	W10897560 Whirlpool Refrigerator Unit Cover
23	W10900446 Whirlpool Frame Assembly
24	WPW10171469 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	W11650661 Whirlpool Heater Assembly
27	W11623163 Whirlpool Refrigerator Clip
28A	W11504415 Whirlpool Refrigerator Coupler
28B	W11504431 Whirlpool Microwave Coupler
28C	COUPLER
28	W11557671 Whirlpool Refrigerator Compressor
29	WPW10169124 Whirlpool Refrigerator Grommet
30	W11546982 Whirlpool Refrigerator Inverter Assembly
31	W11109499 Whirlpool Refrigerator Tube
31A	W11504433 Whirlpool Refrigerator Coupler
31B	W11504447 Whirlpool Refrigerator Coupler
32	W11553819 Whirlpool Refrigerator Insulation
33	SCREW
34	W10697017 Whirlpool Clip
35	WP489464 Whirlpool Refrigerator Screw
36	W10313215 Whirlpool Refrigerator Box Cover
37	2323186 Whirlpool Refrigerator Housing
38	W11558182-includeCORE Whirlpool W11558182 Refrigerator Electronic Control Board
39	489396 Whirlpool Refrigerator Clip
40	W11609465 Whirlpool Refrigerator Wire Harness
41	WPW10339879 Whirlpool Wire Tie
42	Clip, Push-In Retainer
44	W11678305 Whirlpool Tube
