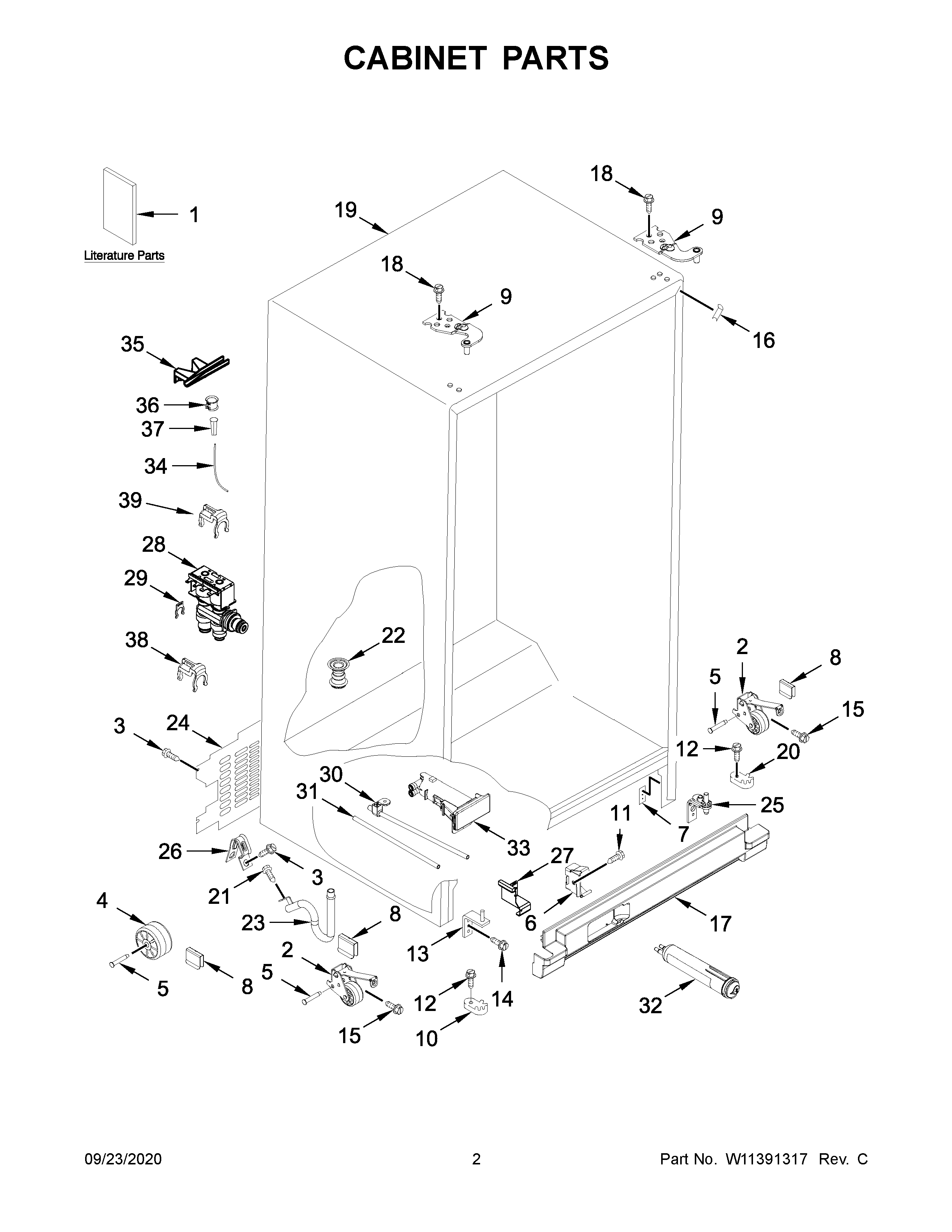

WRS342FIAB03 02 – CABINET PARTS
Written by
in
WRS342FIAB03 02 – CABINET PARTS
Products
Position
Product
1B
ENERGY LABEL
1
USE & CARE GUIDE
1A
SERVICE & WIRING SHEET
2
WPW10304660 Whirlpool Wheel Assembly
3
W10803534 Whirlpool Screw
4
WPW10475495 Whirlpool Roller Assembly
5
W11594405 Whirlpool Axle
6
WP2155013 Whirlpool Refrigerator Clip
7
WP2304249 Whirlpool Refrigerator Plate
8
WP2174706 Whirlpool Refrigerator Pin Hitch
9A
W11579508 Whirlpool Top Hinge
9B
W11164088 Whirlpool Refrigerator Door Hinge
10
WP489500 Whirlpool Refrigerator Screw
11
WP489128 Whirlpool Refrigerator Screw
12
WPW10350006 Whirlpool Refrigerator Water Tube
13
W10646418 Whirlpool Refrigerator Door Hinge
14
WP489497 Whirlpool Screw
15
WPW10304659 Whirlpool Wheel Assembly
16
WPW10283959 Whirlpool Refrigerator Filler
16B
W10851579 Whirlpool Refrigerator Filler
16A
W11252732 Whirlpool Refrigerator Filler
17B
GRILLE (GREY)
17
GRILLE (WHITE)
17A
GRILLE (BLACK)
18A
WPW10308751 Whirlpool Screw
18
WPW10308750 Whirlpool Refrigerator Screw
19
W10856122 Whirlpool Refrigerator Screw
20
WP488488 Whirlpool Refrigerator Screw
21
WP489464 Whirlpool Refrigerator Screw
22
W11566763 Whirlpool Fitting
23
W11512417 Whirlpool Drain Connector
24
COVER, UNIT
25
W11049959 Whirlpool Refrigerator Hinge
26
WPW10350007 Whirlpool Refrigerator Water Tube
27
EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28
549193 Whirlpool Refrigerator Power Clamp
30
WP2223751 Whirlpool Refrigerator Door Cam
31
WP489483 Whirlpool Screw
32B
HOUSING-WATER FILTER
32
W10862456 Whirlpool Water Filter Housing
32A
HOUSING-WATER FILTER
33
CABINET (NOT A SERVICEABLE PART)
←
