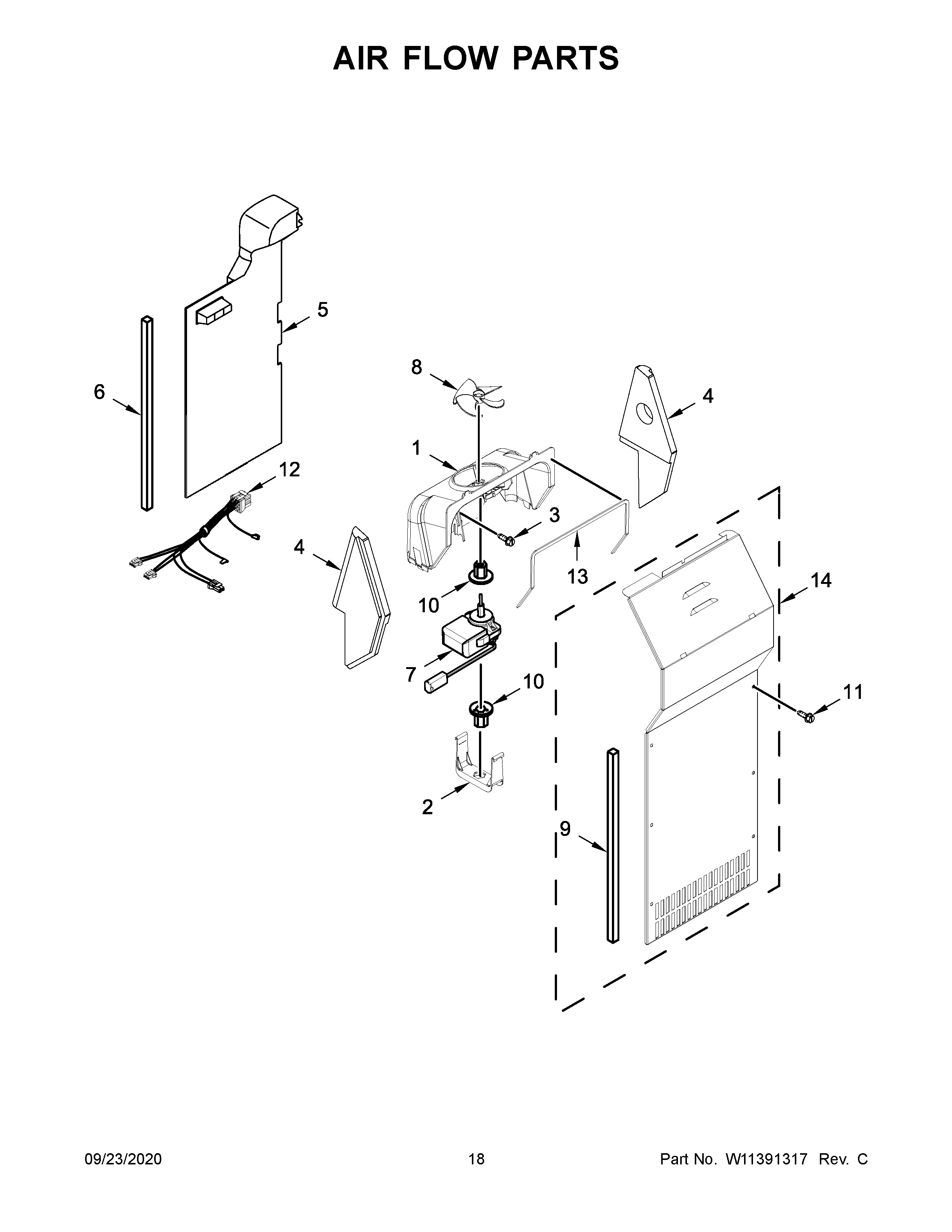

WRS342FIAB03 10 – AIR FLOW PARTS

WRS342FIAB03 10 – AIR FLOW PARTS

Written by

in

WRS342FIAB03 10 – AIR FLOW PARTS

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2W11671527 Whirlpool Retainer Assembly
3WP489478 Whirlpool Refrigerator Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5Air Duct Freezer
6GASKET
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
11WP693995 Whirlpool Screw
12W10539759 Whirlpool Refrigerator Wire Harness
13WP2304241 Whirlpool Refrigerator Gasket
14WPW10482512 Whirlpool Evaporator Cover
152313359 Whirlpool Refrigerator Air Duct
16A4388358 Whirlpool Refrigerator Support Bracket
