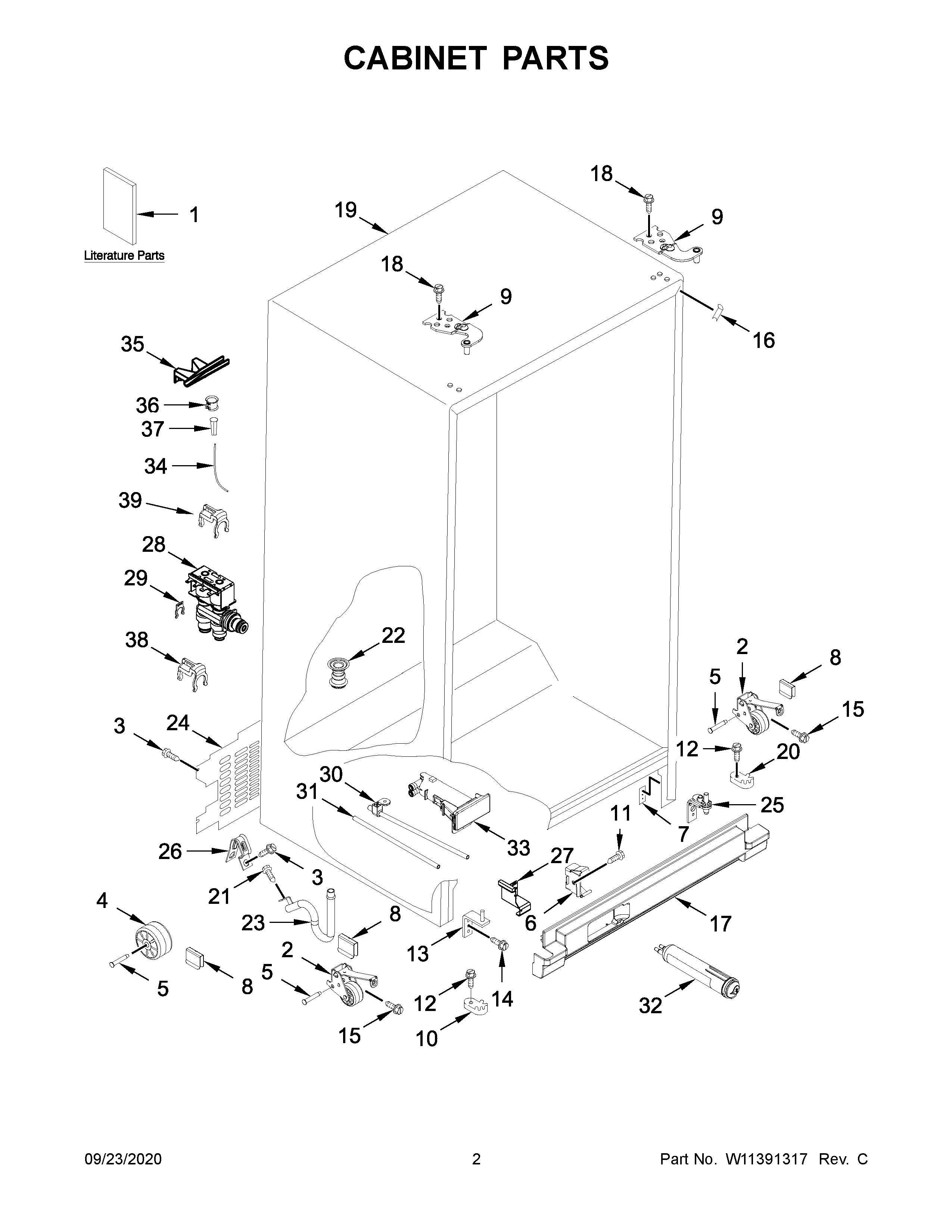

WRS342FIAB04 02 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	SERVICE & WIRING SHEET
1B	ENERGY LABEL
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
8	WP2174706 Whirlpool Refrigerator Pin Hitch
9	W11579508 Whirlpool Top Hinge
10	WP489500 Whirlpool Refrigerator Screw
11	WP489128 Whirlpool Refrigerator Screw
12	WPW10350006 Whirlpool Refrigerator Water Tube
13	W10646418 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16	W11252732 Whirlpool Refrigerator Filler
17	GRILLE (BLACK)
18	W10336489 Whirlpool Refrigerator Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	COVER, UNIT
25	W11049959 Whirlpool Refrigerator Hinge
26	WPW10350007 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	549193 Whirlpool Refrigerator Power Clamp
30	WP2223751 Whirlpool Refrigerator Door Cam
31	WP489483 Whirlpool Screw
32	HOUSING-WATER FILTER
33	CABINET (NOT A SERVICEABLE PART)
