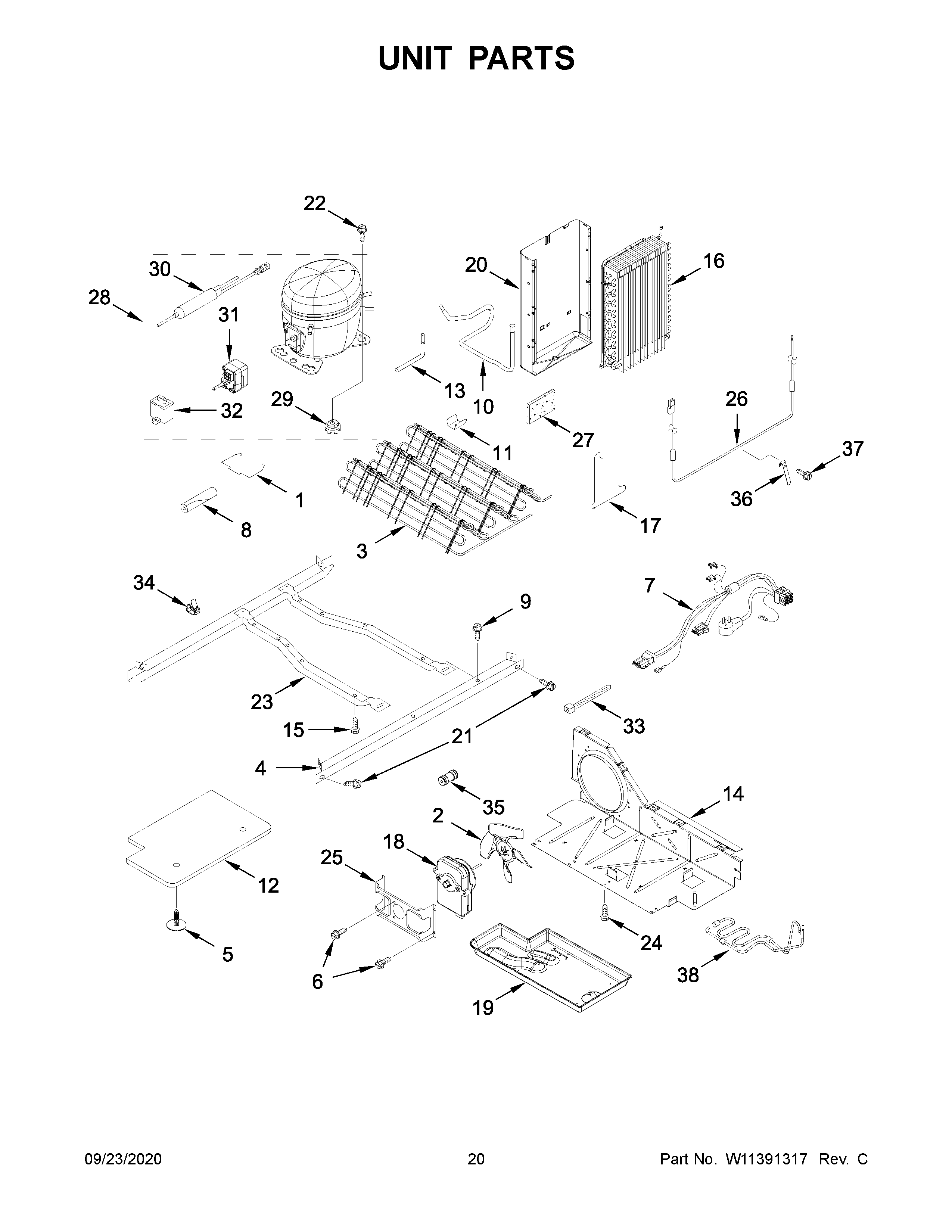

WRS342FIAB04 11 – UNIT PARTS

WRS342FIAB04 11 – UNIT PARTS

Written by

in

WRS342FIAB04 11 – UNIT PARTS

Products

PositionProduct
NI978030 Whirlpool Refrigerator Valve
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
NIVALVE, ACCESS (5/8“)
1W10204187 Whirlpool Refrigerator Retainer
2W10156818 Whirlpool Refrigerator Fan Blade
32324712 Whirlpool Refrigerator Condenser
4WP489464 Whirlpool Refrigerator Screw
5W10812039 Whirlpool Clip
6WP8533993 Whirlpool Refrigerator Screw
7WP2300868 Whirlpool Refrigerator Fitting
8SLEEVE
9WP489427 Whirlpool Refrigerator Screw
102205764 Whirlpool Refrigerator Tube
11W10683556 Whirlpool Refrigerator Clip
12WPW10350564 Whirlpool Refrigerator Freezer Capacitor
13W10858105 Whirlpool Refrigerator Tube
14WPW10194431 Whirlpool Start Device
15W11544659 Whirlpool Refrigerator Screw
16WP2188822 Whirlpool Refrigerator Evaporator
18WP2188874 Whirlpool Refrigerator Condenser Motor
19WPW10614158 Whirlpool Refrigerator Evaporator Tray
20WPW10194474 Whirlpool Refrigerator Shield
21WPW10143759 Whirlpool Dryer Filter
22SCREW
232304903 Whirlpool Refrigerator Frame
24W10421551 Whirlpool Refrigerator Wire Harness
25WP2181929 Whirlpool Refrigerator Bracket
26WPW10495967 Whirlpool Refrigerator Heater
27Clamp
28W10309988 Whirlpool Refrigerator Compressor
29WPW10169124 Whirlpool Refrigerator Grommet
30489340 Whirlpool Refrigerator Screw
31BAFFLE, AIR
32WPW10339879 Whirlpool Wire Tie
33UNIT COVER, BOTTOM
34489396 Whirlpool Refrigerator Clip
35W10207512 Whirlpool Rail Unit
36WP2188819 Whirlpool Thermistor
37W10334855 Whirlpool Refrigerator Cover
38W11035833-includeCORE Whirlpool W11035833 Refrigerator Electronic Control Board + Core
392323186 Whirlpool Refrigerator Housing
402217070 Whirlpool Foam Kit
41W11553819 Whirlpool Refrigerator Insulation
