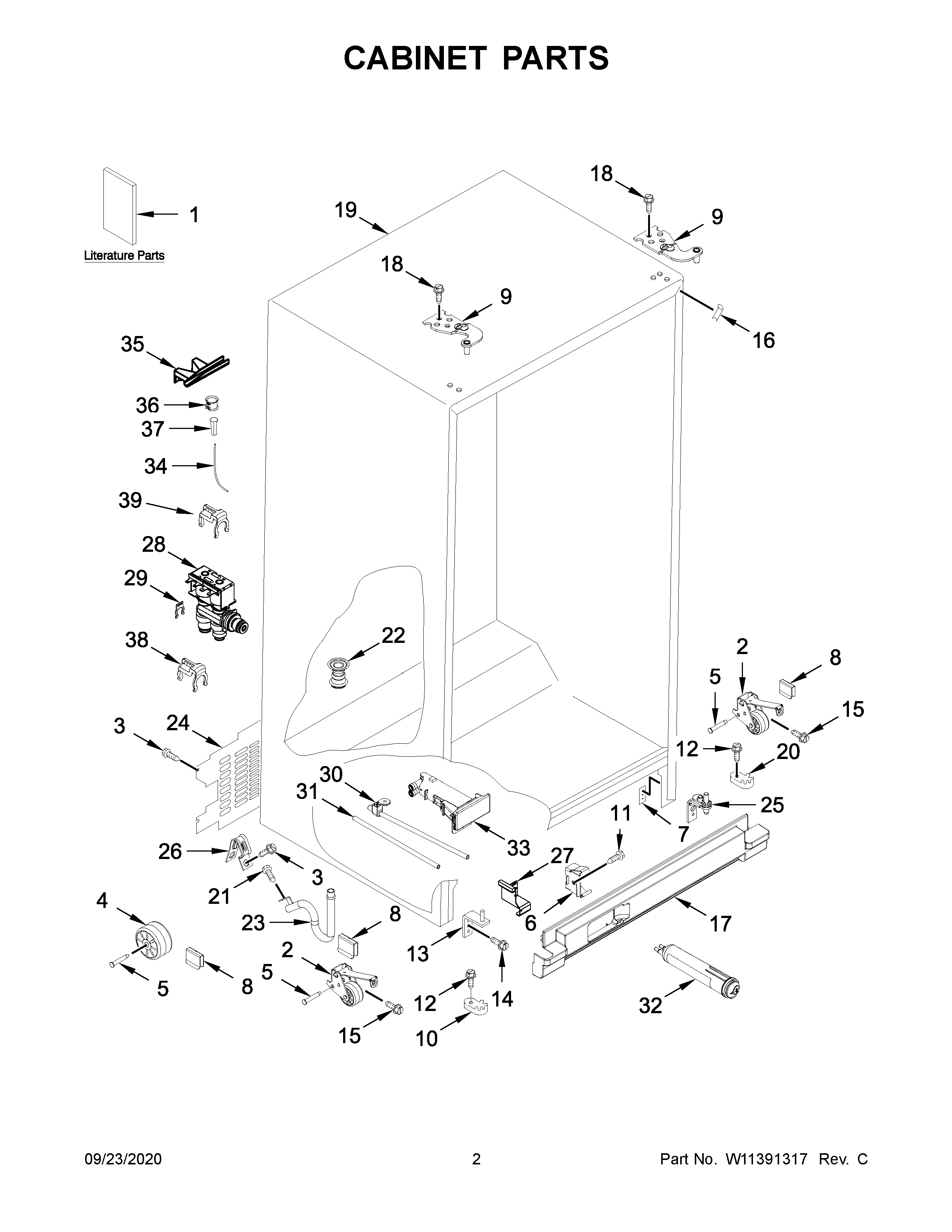

WRS342FIAM00 02 – CABINET PARTS

WRS342FIAM00 02 – CABINET PARTS

Written by

in

WRS342FIAM00 02 – CABINET PARTS

Products

Position	Product
1A	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1B	ENERGY GUIDE
2	WPW10304660 Whirlpool Wheel Assembly
3	W10803534 Whirlpool Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP2304249 Whirlpool Refrigerator Plate
9C	W11579508 Whirlpool Top Hinge
9B	W11164088 Whirlpool Refrigerator Door Hinge
10	WP489500 Whirlpool Refrigerator Screw
11	WP489128 Whirlpool Refrigerator Screw
12	WPW10350006 Whirlpool Refrigerator Water Tube
13	W10646418 Whirlpool Refrigerator Door Hinge
14	WP489497 Whirlpool Screw
15	WPW10304659 Whirlpool Wheel Assembly
16C	W11219642 Whirlpool Refrigerator Filler
16A	W11219641 Whirlpool Refrigerator Filler
16B	FILLER, WRAPPER (BISCUIT)
16	W11219639 Whirlpool Refrigerator Filler
17A	GRILLE (BLACK)
17	GRILLE (WHITE)
17C	GRILLE (GREY)
17B	GRILLE (BISCUIT)
18	WPW10308750 Whirlpool Refrigerator Screw
18A	WPW10308751 Whirlpool Screw
19	W10856122 Whirlpool Refrigerator Screw
20	WP488488 Whirlpool Refrigerator Screw
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	COVER, UNIT
25	W11049959 Whirlpool Refrigerator Hinge
26	WPW10350007 Whirlpool Refrigerator Water Tube
27	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28	549193 Whirlpool Refrigerator Power Clamp
30	W10846218 Whirlpool Refrigerator Door Cam
31	WP489483 Whirlpool Screw
32	W10862456 Whirlpool Water Filter Housing
32B	W10861696 Whirlpool Refrigerator Housing
32A	HOUSING-WATER FILTER
32C	HOUSING-WATER FILTER
33	CABINET (NOT A SERVICEABLE PART)
34A	W11678575 Whirlpool Ring
34	W11676611 Whirlpool Ring
35	W10355758 Whirlpool Refrigerator Bracket
