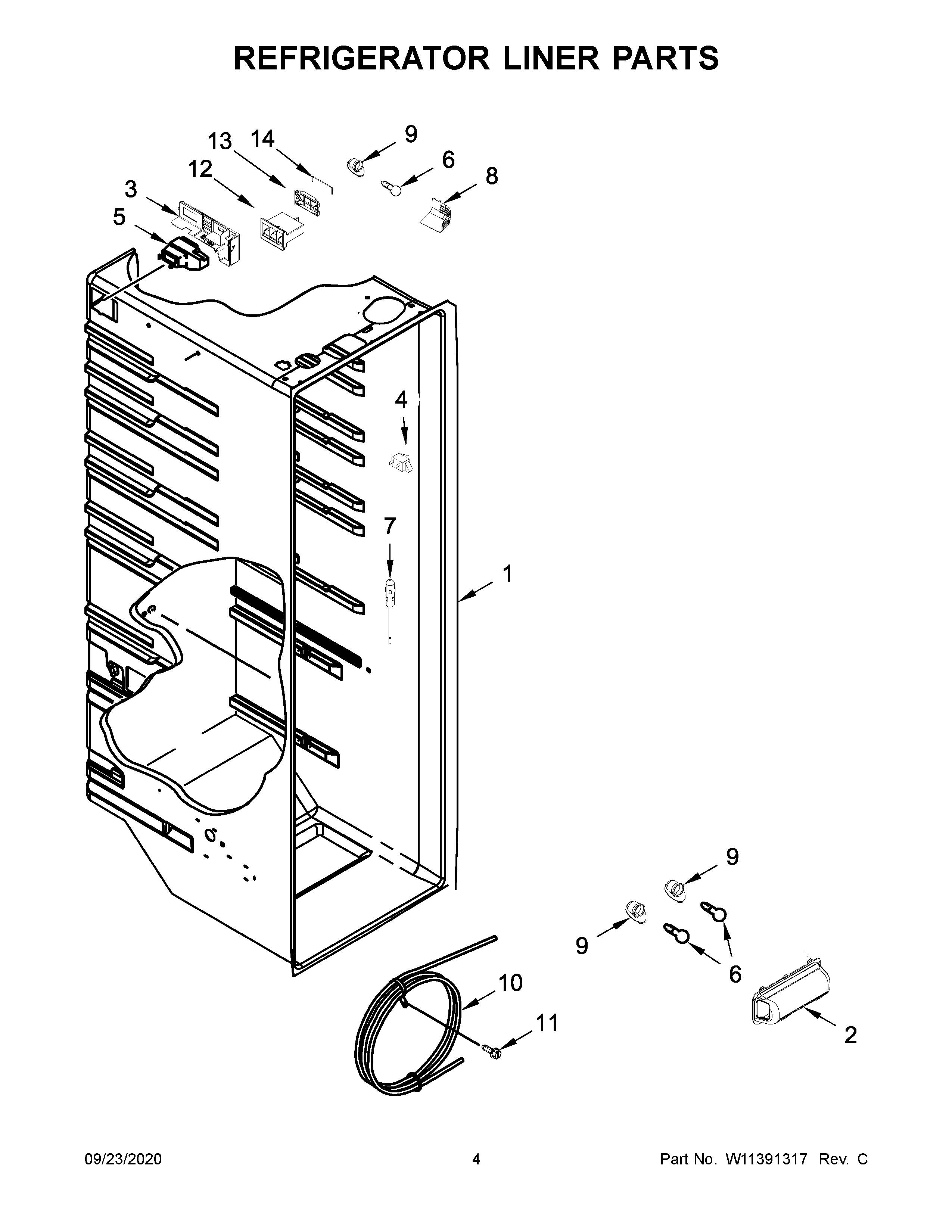

WRS342FIAM00 03 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	LOUVER
3	WPW10515058 Whirlpool LED Light
4	WPW10515057 Whirlpool Light Board
5	RESERVOIR
6	Screw (2)
7	W10899382 Whirlpool Damper Control Assembly
8	W10128735 Whirlpool Refrigerator Cover
9	W10759522 Whirlpool Screw
10	W11384469 Whirlpool Door Switch
