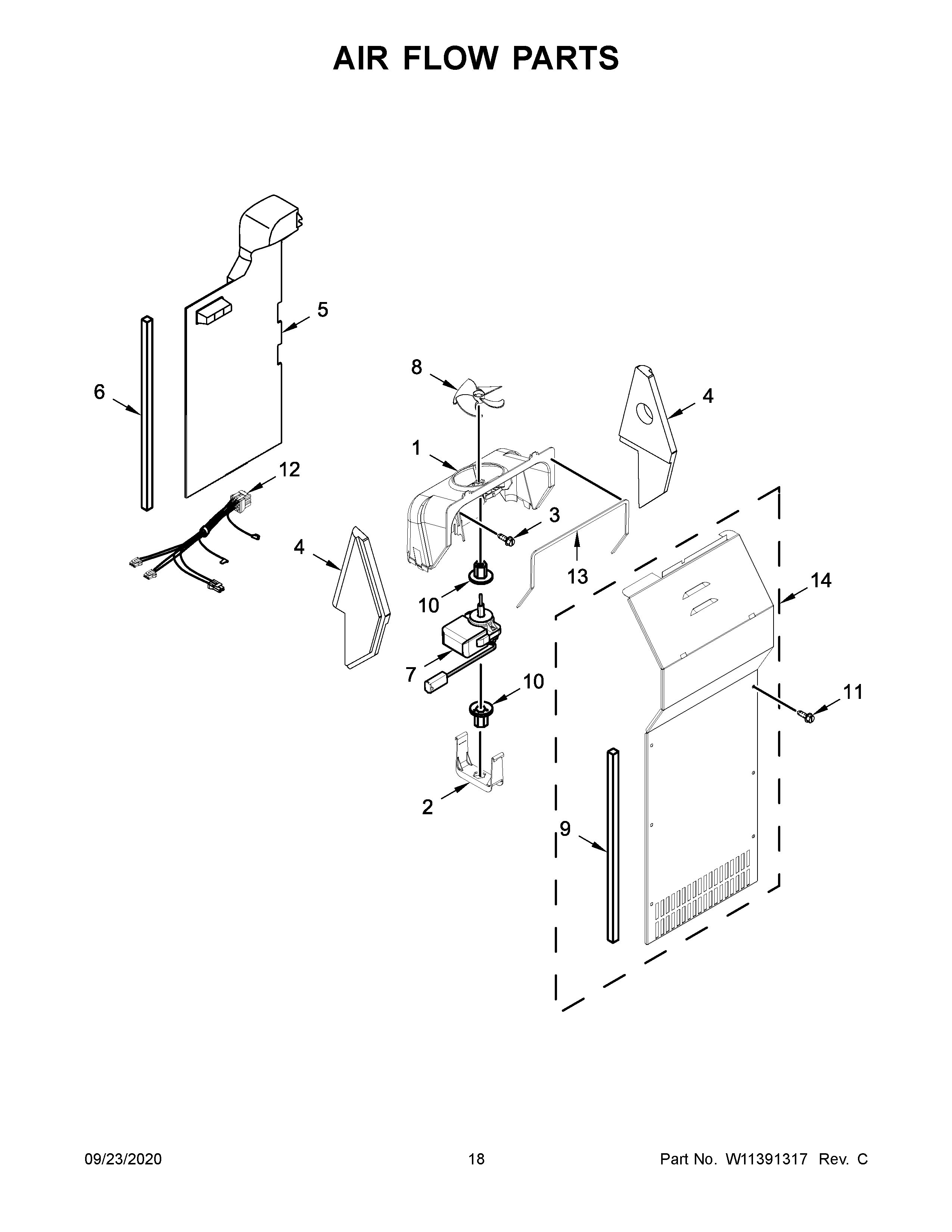

WRS342FIAM02 10 – AIR FLOW PARTS

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	W11671527 Whirlpool Retainer Assembly
3	WP489478 Whirlpool Refrigerator Screw
4	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5	Air Duct Freezer
6	GASKET
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	WP2176759 Whirlpool Refrigerator Grommet
11	WP693995 Whirlpool Screw
12	W10539759 Whirlpool Refrigerator Wire Harness
13	WP2304241 Whirlpool Refrigerator Gasket
14	WPW10482512 Whirlpool Evaporator Cover
15	2313359 Whirlpool Refrigerator Air Duct
16A	4388358 Whirlpool Refrigerator Support Bracket
