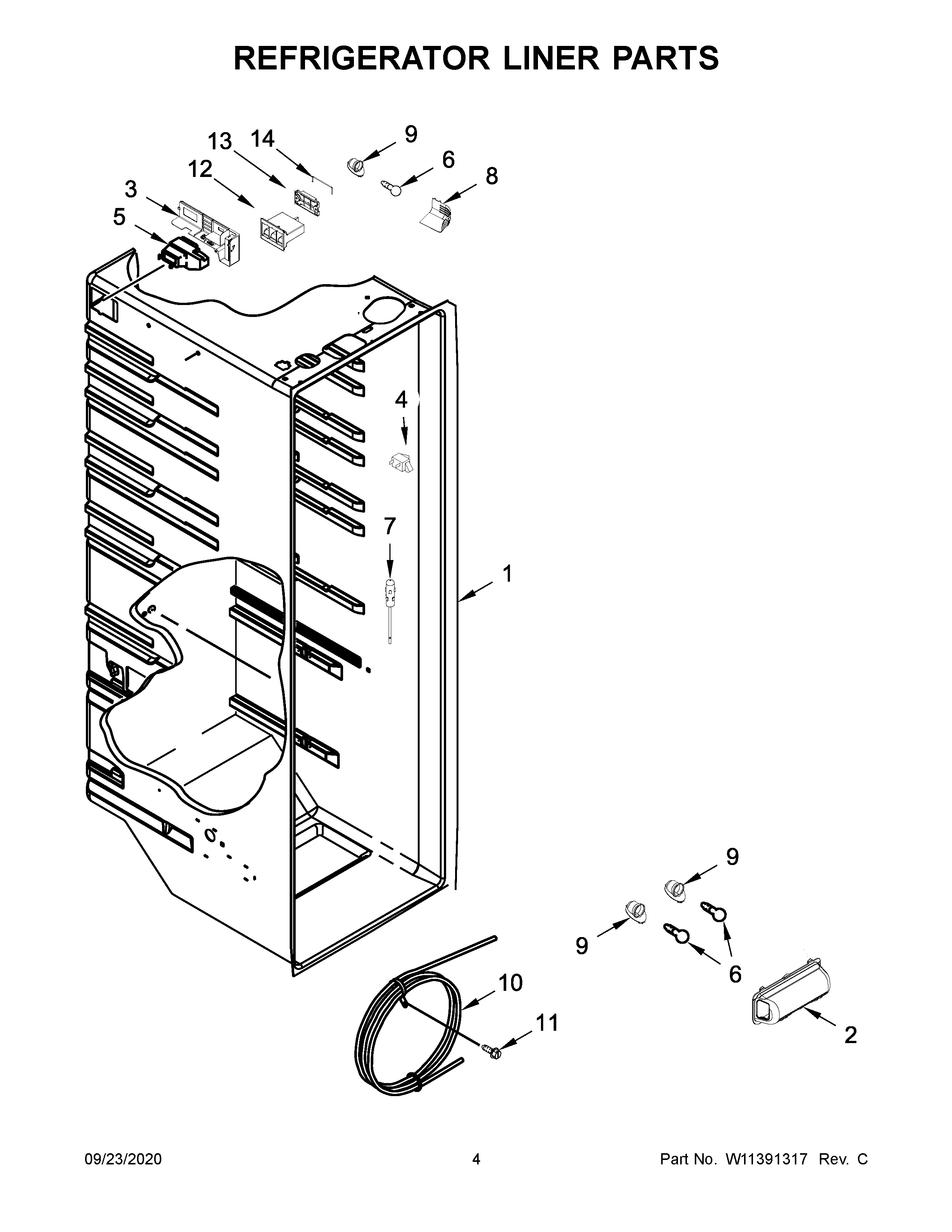

WRS342FIAM03 03 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	LOUVER
3	WPW10515057 Whirlpool Light Board
4	LED LIGHT ASSEMBLY FLAT LENS
5	RESERVOIR
6	Screw (2)
7	W10899382 Whirlpool Damper Control Assembly
8	W10128735 Whirlpool Refrigerator Cover
9	W10141518 Whirlpool Refrigerator Screw
