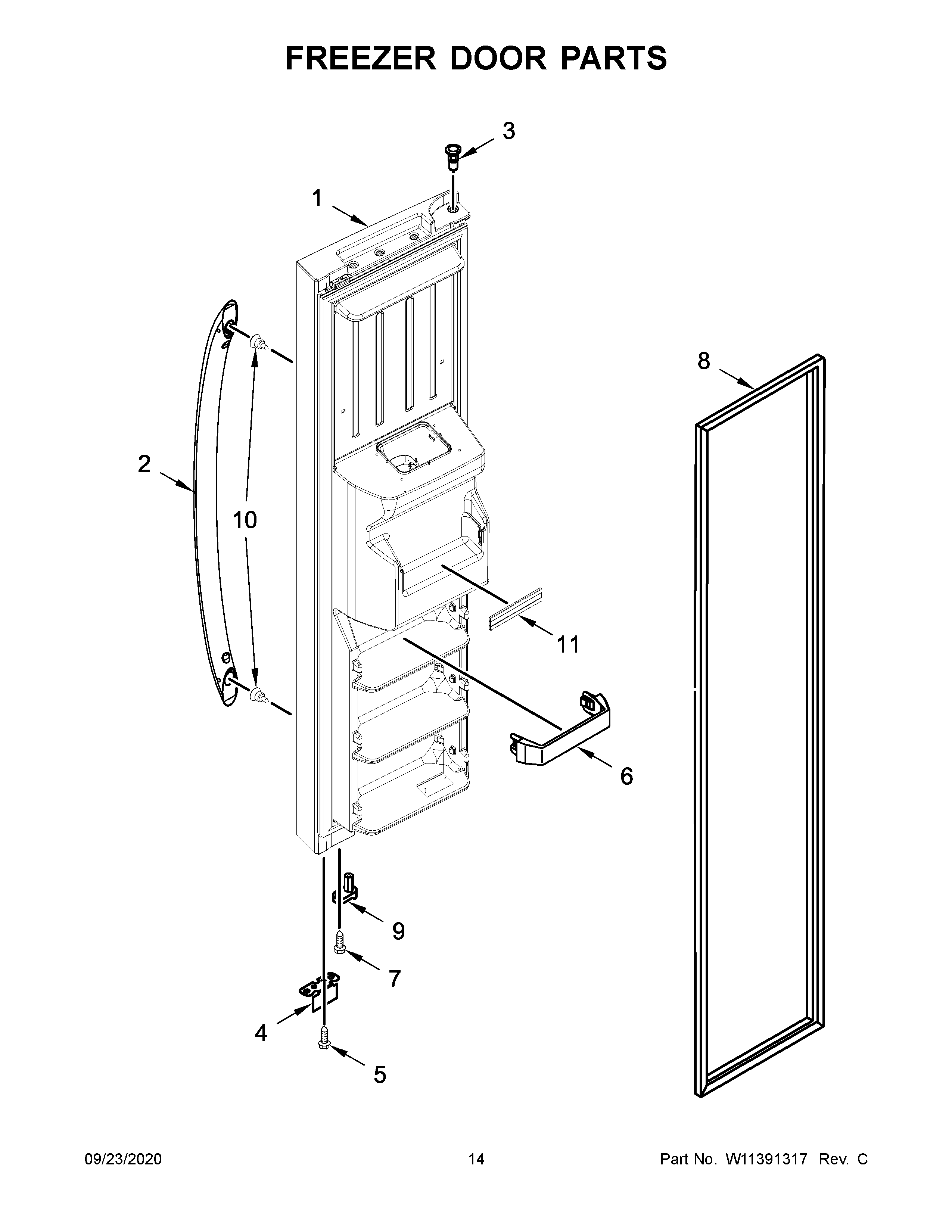

WRS342FIAT00 08 – FREEZER DOOR PARTS

WRS342FIAT00 08 – FREEZER DOOR PARTS

Written by

in

WRS342FIAT00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CDOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (STAINLESS)
1LW10408349 Whirlpool Refrigerator Door FIP White
1ALW10408350 Whirlpool Refrigerator Black Foam In Place Door
1BDOOR, FREEZER (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BISCUIT)
2AW10805245 Whirlpool Door Handle
2BW10713680 Whirlpool Refrigerator Handle
2W10848410 Whirlpool Refrigerator Handle
2CW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
42323534 Whirlpool Refrigerator Bracket
5WP489483 Whirlpool Screw
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
8BW10136733 Whirlpool Refrigerator FIP Gasket
8A2159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11Door Closer, Upper Cam
