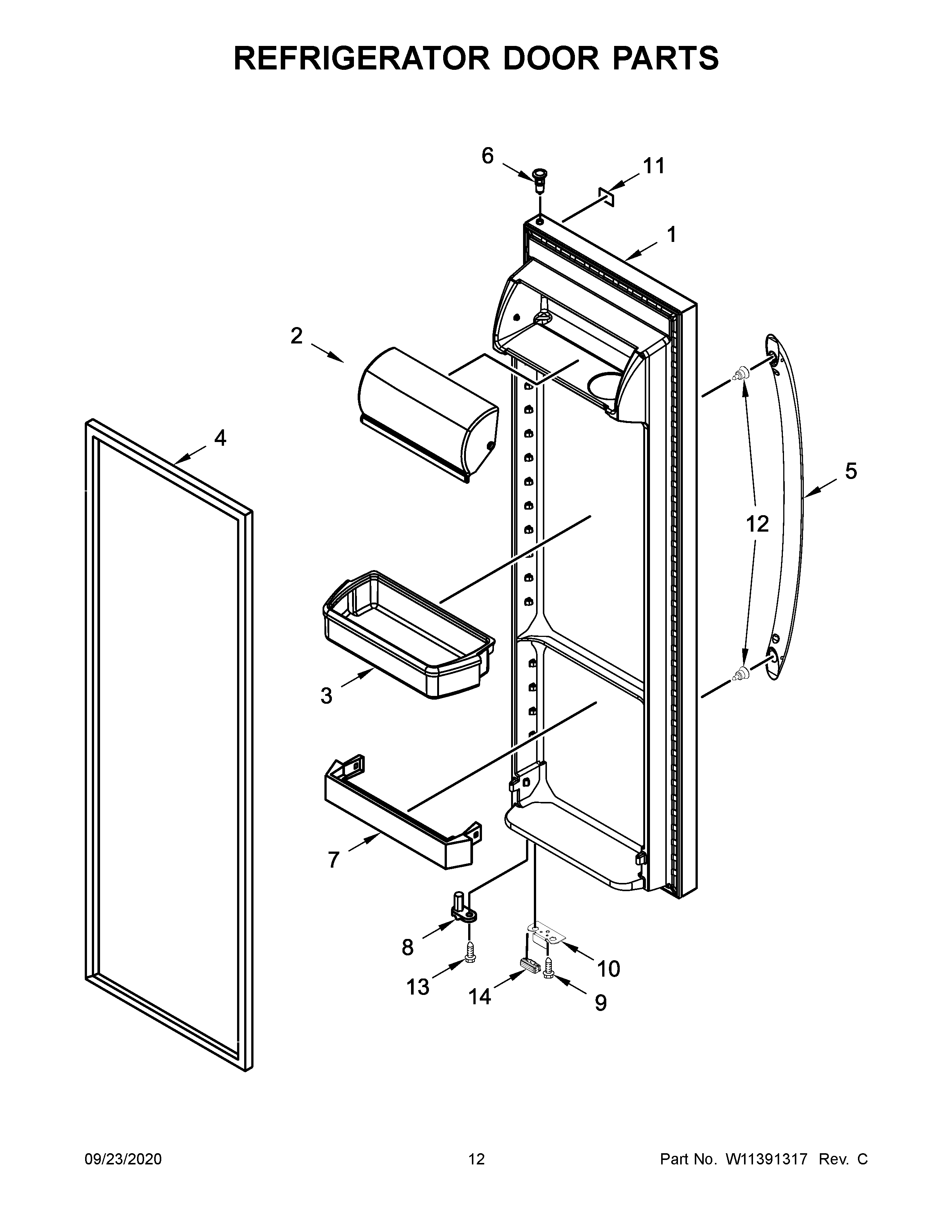

WRS342FIAW00 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1B	LW10407707 Whirlpool Refrigerator Door Outer Frame Black
1C	DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
1	REFRIGERATOR DOOR (INCLUDES ITEM 4) (WHITE)
1A	DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
2	WP2256101 Whirlpool Dairy Door
3	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
4B	W10136732 Whirlpool Refrigerator FIP Gasket
4A	2159081 Whirlpool Refrigerator Door Gasket
4	2159073 Whirlpool Refrigerator Door Gasket
5C	W10899551 Whirlpool Door Handle
5	W10848410 Whirlpool Refrigerator Handle
5B	W10713680 Whirlpool Refrigerator Handle
5A	W10805245 Whirlpool Door Handle
6	WP2182181 Whirlpool Refrigerator Thimble
7	WP2309941 Whirlpool Refrigerator Door Bar Trim
8	W11253684 Whirlpool Refrigerator Door Cam
9	WP489483 Whirlpool Screw
10	BRACKET, DOOR STOP (SILVER)
11	WPW10511975 Whirlpool Refrigerator Nameplate
11A	WPW10511972 Whirlpool Refrigerator Nameplate
12	WPW10661886 Whirlpool Refrigerator Door Handle Screw
13	WP3400012 Whirlpool Refrigerator Screw
14	CADDY, CAN
