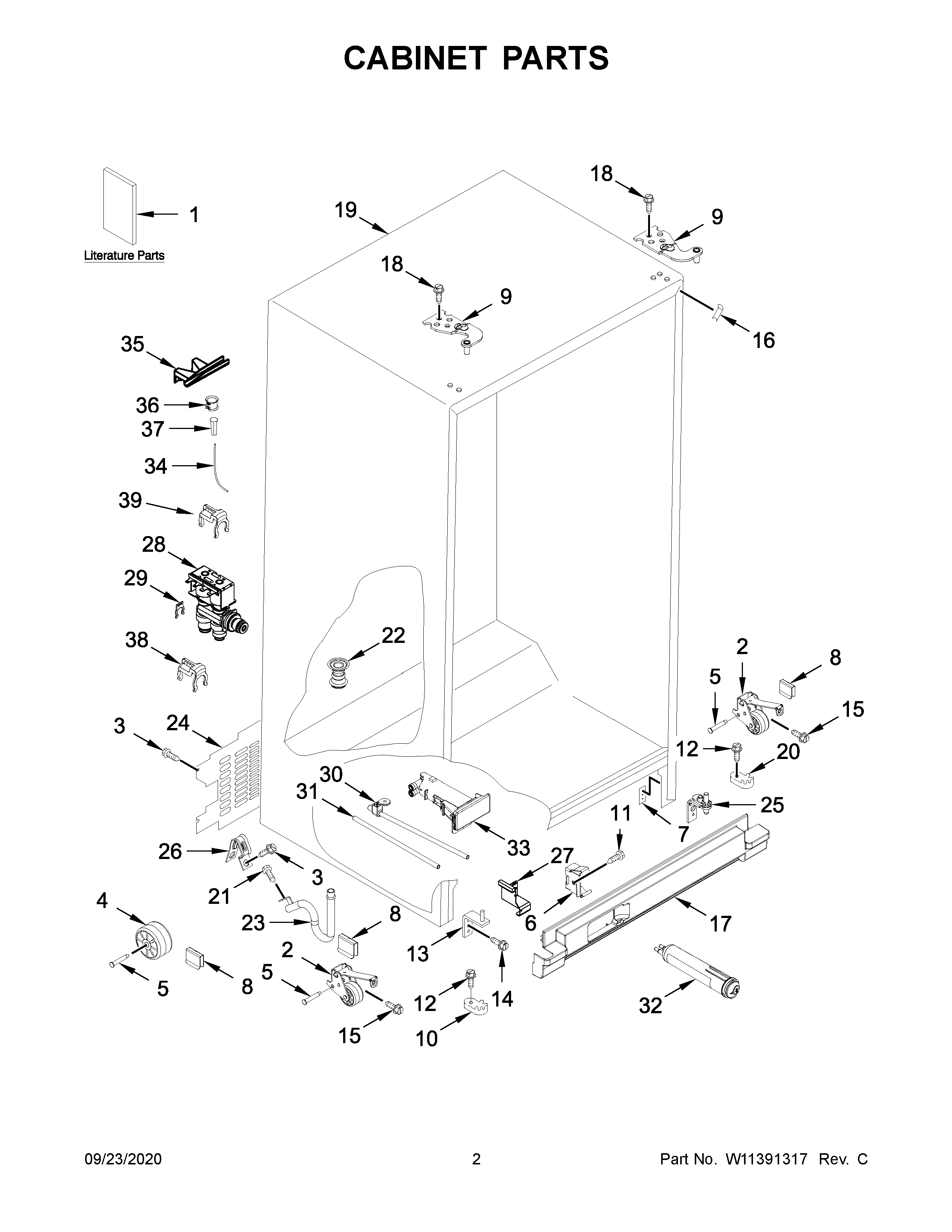

WRS342FIAW02 02 – CABINET PARTS

WRS342FIAW02 02 – CABINET PARTS

Written by

in

WRS342FIAW02 02 – CABINET PARTS

Products

PositionProduct
1BENERGY LABEL
1ASERVICE & WIRING SHEET
1USE & CARE GUIDE
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP2304249 Whirlpool Refrigerator Plate
8WP2174706 Whirlpool Refrigerator Pin Hitch
9BW11164088 Whirlpool Refrigerator Door Hinge
9AW11579508 Whirlpool Top Hinge
10WP489500 Whirlpool Refrigerator Screw
11WP489128 Whirlpool Refrigerator Screw
12WPW10350006 Whirlpool Refrigerator Water Tube
13W10646418 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15WPW10304659 Whirlpool Wheel Assembly
16AW11252732 Whirlpool Refrigerator Filler
16WPW10283959 Whirlpool Refrigerator Filler
16BW10851579 Whirlpool Refrigerator Filler
17AGRILLE (BLACK)
17BGRILLE (GREY)
17GRILLE (WHITE)
18WPW10308750 Whirlpool Refrigerator Screw
18AWPW10308751 Whirlpool Screw
19W10856122 Whirlpool Refrigerator Screw
20WP488488 Whirlpool Refrigerator Screw
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24COVER, UNIT
25W11049959 Whirlpool Refrigerator Hinge
26WPW10350007 Whirlpool Refrigerator Water Tube
27EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
28549193 Whirlpool Refrigerator Power Clamp
30WP2223751 Whirlpool Refrigerator Door Cam
31WP489483 Whirlpool Screw
32BHOUSING-WATER FILTER
32W10862456 Whirlpool Water Filter Housing
32AHOUSING-WATER FILTER
33CABINET (NOT A SERVICEABLE PART)
