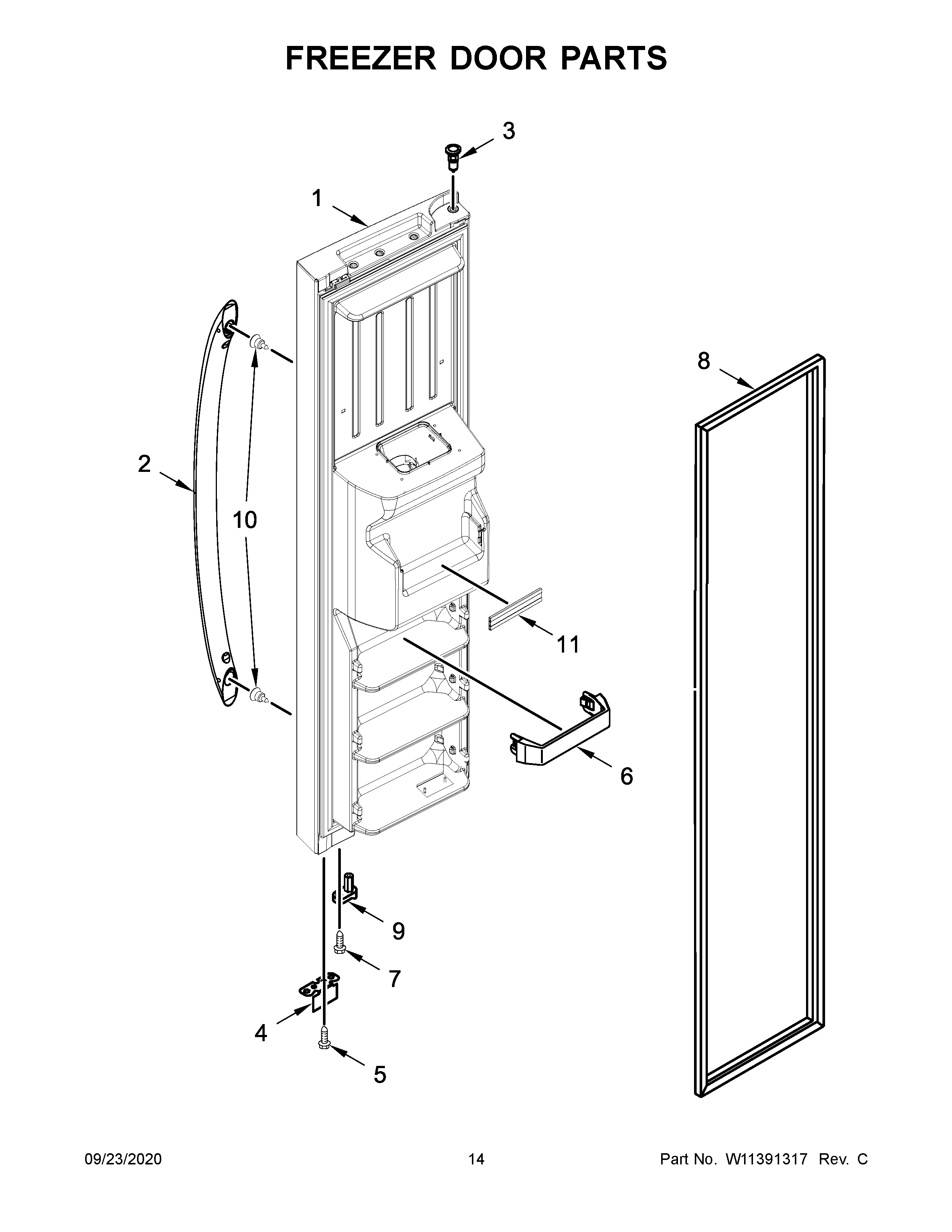

WRS342FIAW02 08 – FREEZER DOOR PARTS

WRS342FIAW02 08 – FREEZER DOOR PARTS

Written by

in

WRS342FIAW02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BFREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
1AFREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BLACK)
1FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
2AW10805245 Whirlpool Door Handle
2W10848410 Whirlpool Refrigerator Handle
2BW10899551 Whirlpool Door Handle
3WP2182181 Whirlpool Refrigerator Thimble
4BW10507571 Whirlpool Bracket
42323534 Whirlpool Refrigerator Bracket
4ABracket, Door Stop (Black)
5WP489483 Whirlpool Screw
6WP2309717 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159072 Whirlpool Refrigerator FIP Gasket
8BW10136733 Whirlpool Refrigerator FIP Gasket
8A2159080 Whirlpool Refrigerator Door Gasket
9WPW10307490 Whirlpool Door Trim Assembly
10WPW10661886 Whirlpool Refrigerator Door Handle Screw
11Door Closer, Upper Cam
