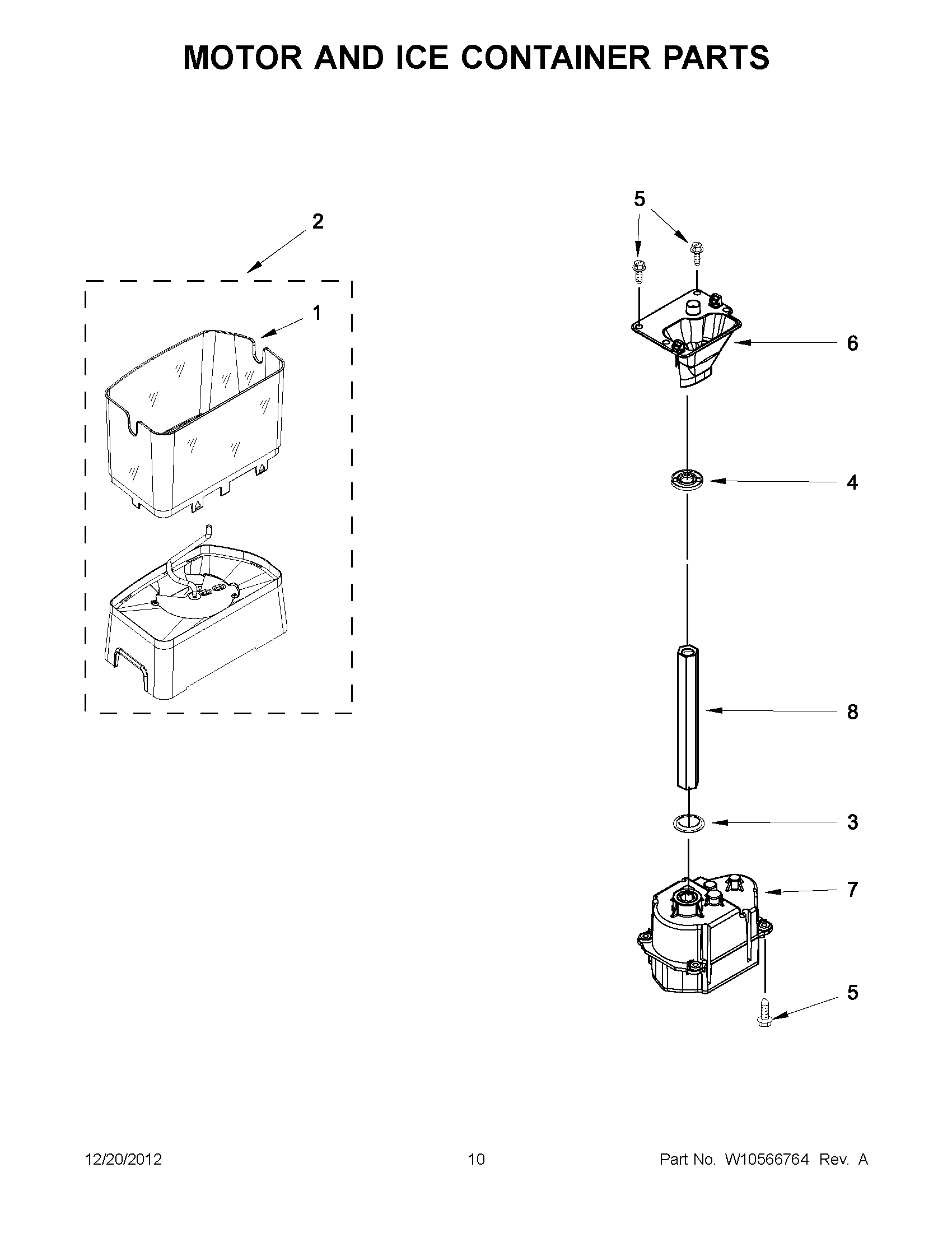

WRS346FIAB00 05 – MOTOR AND ICE CONTAINER PARTS

Written by

Products

Position	Product
1	WP2198573 Whirlpool Refrigerator Ice Bin
3	WPW10254073 Whirlpool Refrigerator Washer
4	WP2198628 Whirlpool Door Seal
5	WP8281163 Whirlpool Refrigerator Screw
6	PLATE, MOUNTING
7	W10822606 Whirlpool Dishwasher Dispenser Motor
8	DRIVE SHAFT
100	ICE BIN ASSEMBLY
