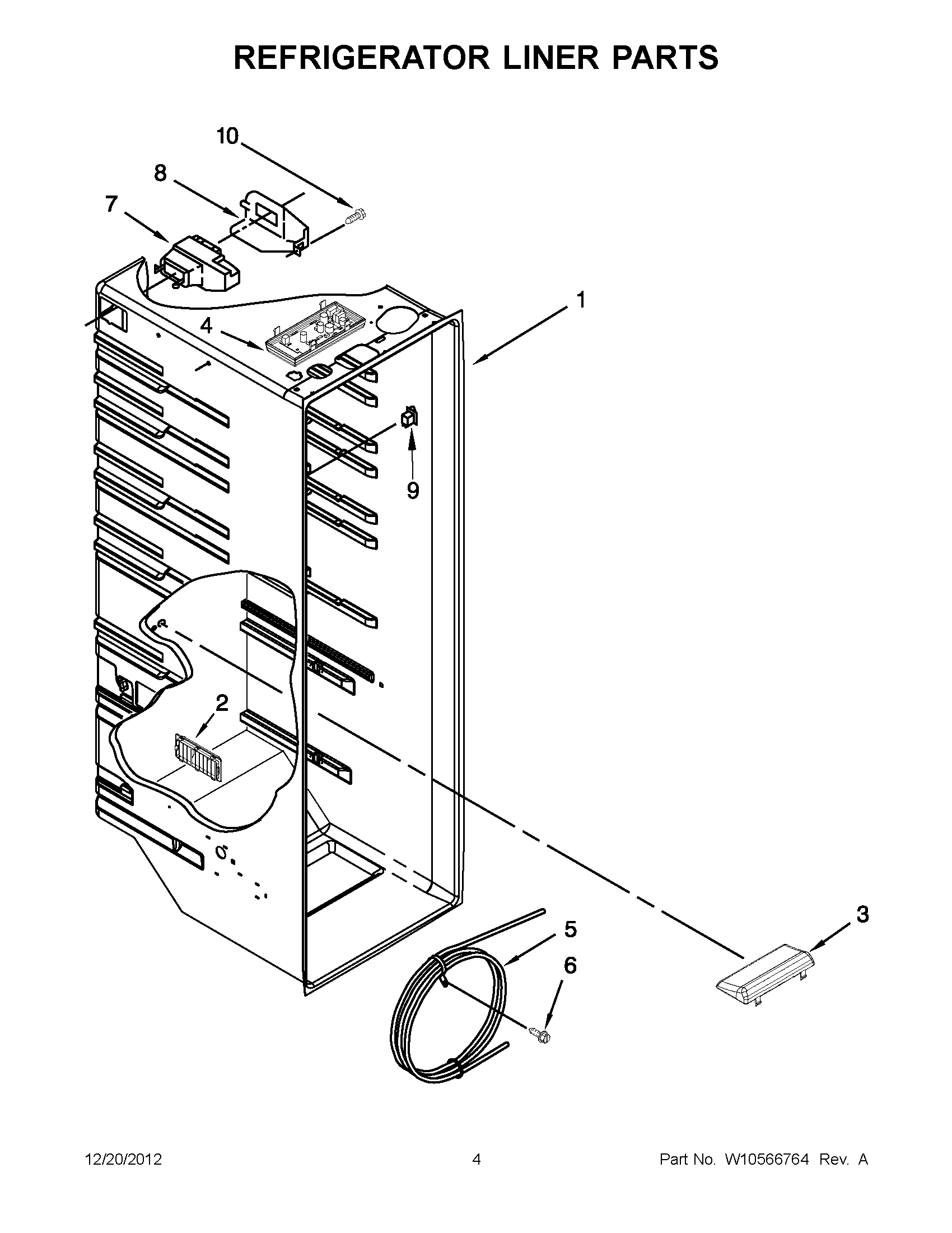

WRS346FIAM00 02 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Louver
3	WPW10515057 Whirlpool Light Board
4	WPW10515058 Whirlpool LED Light
5	RESERVOIR
6	Screw (2)
7	W10899382 Whirlpool Damper Control Assembly
8	W10128735 Whirlpool Refrigerator Cover
9	W11384469 Whirlpool Door Switch
10	W10759522 Whirlpool Screw
