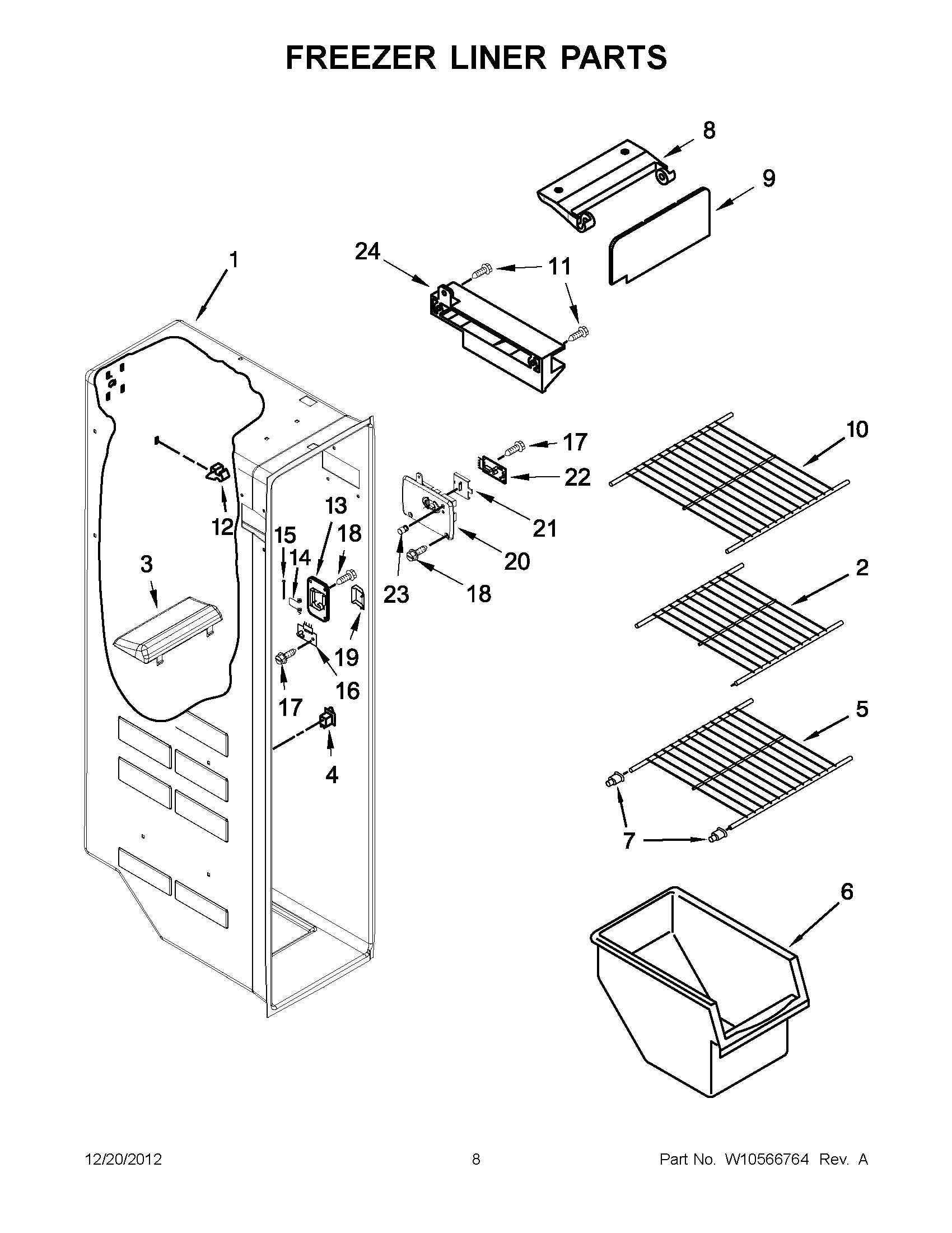

WRS346FIAM00 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WPW10318961 Whirlpool Refrigerator Wire Shelf
3	WPW10515057 Whirlpool Light Board
4	W11457217 Whirlpool Refrigerator Rocker Switch Combination
5	WPW10318947 Whirlpool Wire Shelf
6	WPW10144409 Whirlpool Refrigerator Freezer Bin
7	WPW10130299 Whirlpool Refrigerator Cup
8	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
9	WP2255720 Whirlpool Refrigerator Ice Maker Door
10	WPW10318948 Whirlpool Wire Shelf
11	WP489478 Whirlpool Refrigerator Screw
12	2215823 Whirlpool Refrigerator Clip
13	WP2198587 Whirlpool Refrigerator Cover
14	WP2198635 Whirlpool Refrigerator Spring
15	WP2198634 Whirlpool Door Pin
16	W10757851-includeCORE Whirlpool Electronic Control+Core
17	2006254 Whirlpool Refrigerator Screw
18	WPW10142283 Whirlpool Refrigerator Screw
19	WP2198633 Whirlpool Refrigerator Flipper
20	Cover, Receiver
21	2315398 Whirlpool Refrigerator Slide
23	WP2198643 Whirlpool Refrigerator Lens
24	Slide, Ice Maker
