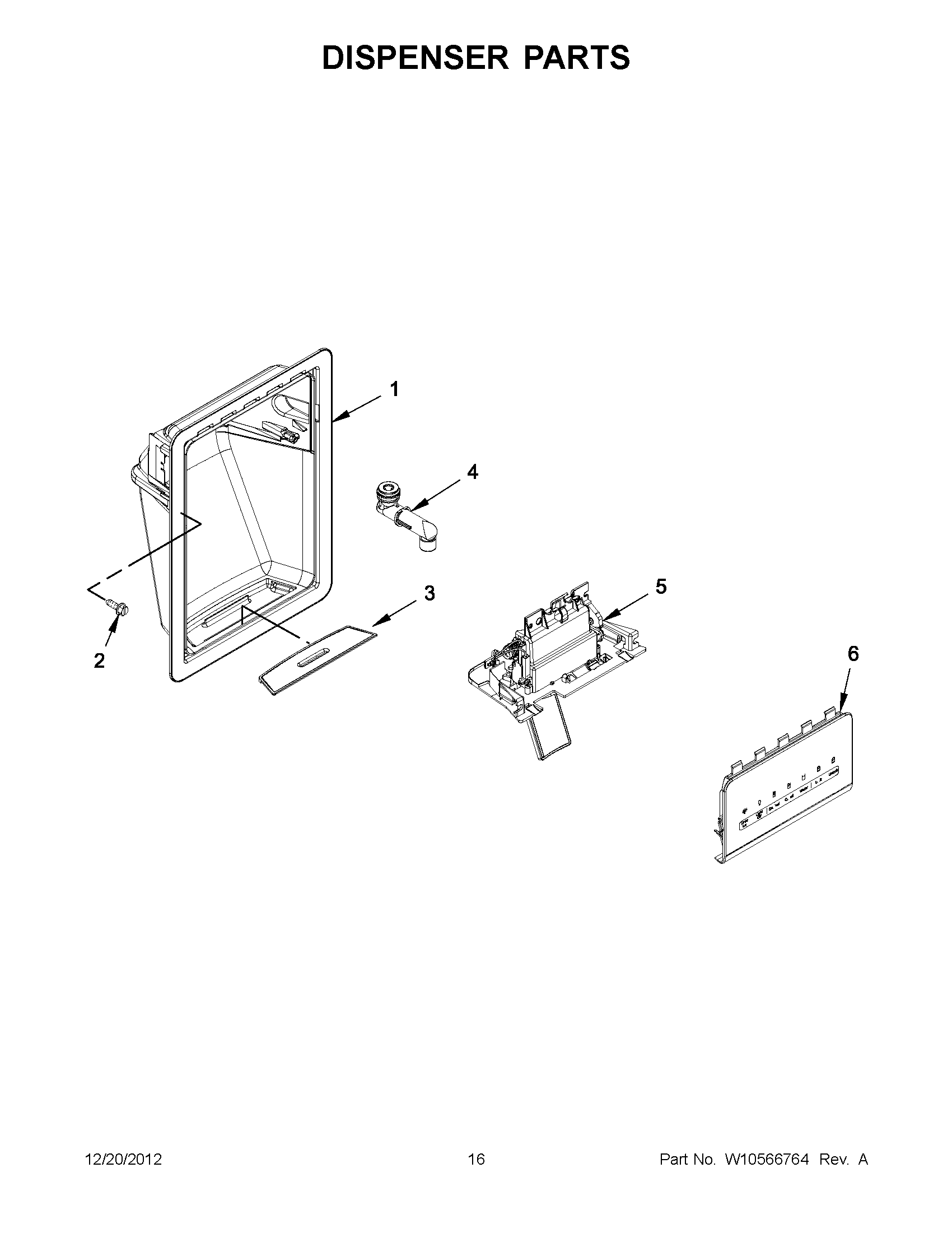

WRS346FIAT00 08 – DISPENSER PARTS

WRS346FIAT00 08 – DISPENSER PARTS

Written by

in

WRS346FIAT00 08 – DISPENSER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP8281163 Whirlpool Refrigerator Screw
3WPW10397392 Whirlpool Refrigerator Grille
3WPW10397395 Whirlpool Refrigerator Grille
3WPW10397394 Whirlpool Refrigerator Grille
4WPW10397435 Whirlpool Refrigerator Fitting
5W10616146 Whirlpool Refrigerator Ice Door
5W10616148 Whirlpool Refrigerator Ice Door
5W10616150 Whirlpool Refrigerator Ice Door
5SEPARATOR ASSEMBLY (BLACK)
6UI ASSEMBLY CONTROL (BLACK)
