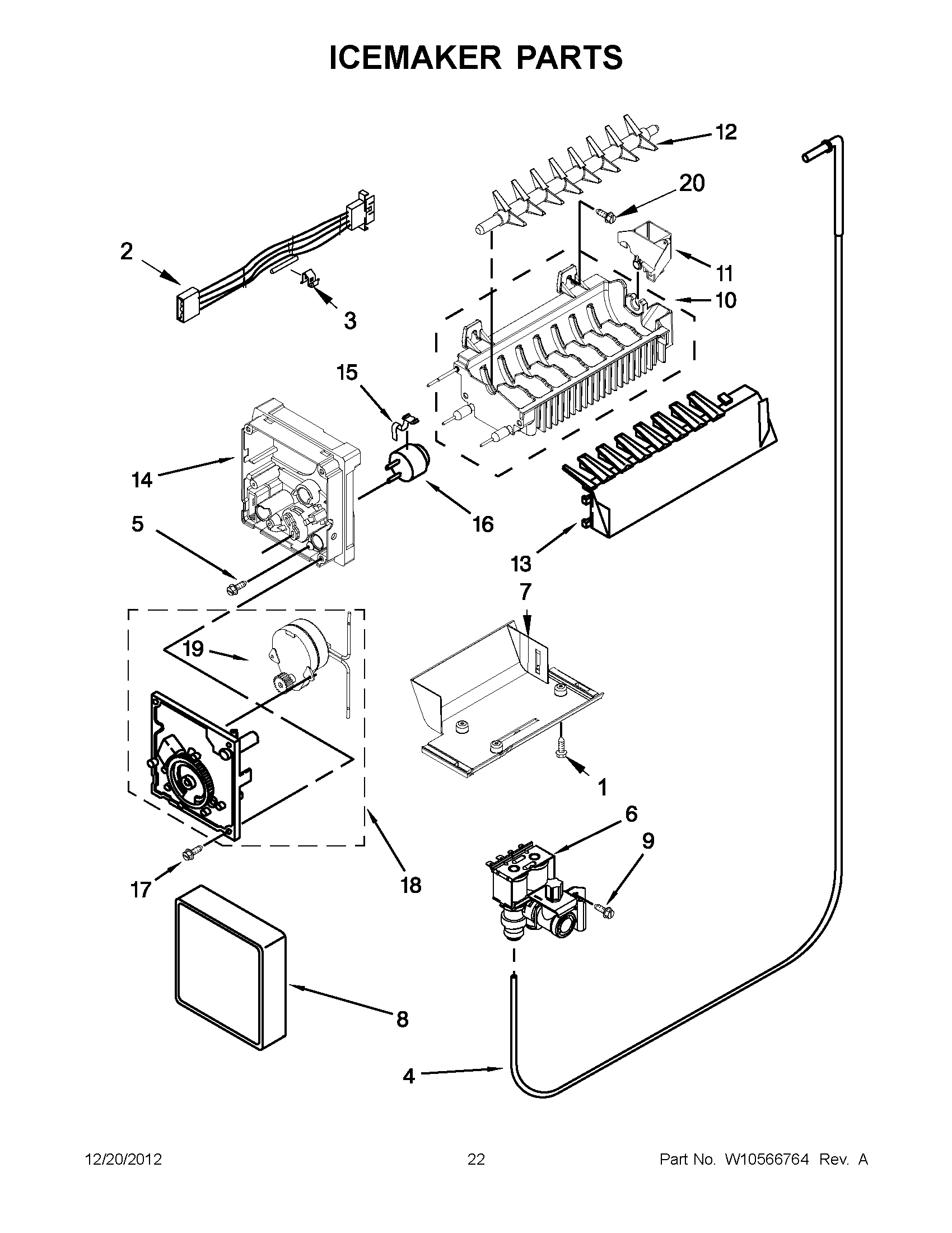

WRS346FIAT00 11 – ICEMAKER PARTS

Products

Position	Product
1	WP489478 Whirlpool Refrigerator Screw
2	W11643622 Whirlpool Wire Harness
3	WP628379 Whirlpool Refrigerator Clip
4	Fitting, Water Tube
5	W10001280 Whirlpool Refrigerator Screw
6	WPW10179146 Whirlpool Refrigerator Water Inlet Valve
7	BRACKET, ICEMAKER MOUNTING
8	WPW10289690 Whirlpool Ice Maker Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10300025 Whirlpool Refrigerator Ice Mold
11	W11676540 Whirlpool Refrigerator Cup Fill
12	W10318914 Whirlpool Refrigerator Ejector Arm
13	WPW10272161 Whirlpool Refrigerator Stripper Arm
14	WP2195914 Whirlpool Refrigerator Ice Maker Housing
15	WP2315522 Whirlpool Refrigerator Clip
16	628532 Whirlpool Refrigerator Thermostat
17	W10001240 Whirlpool Refrigerator Screw
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
100	W11512152 Whirlpool Ice Maker Assembly
