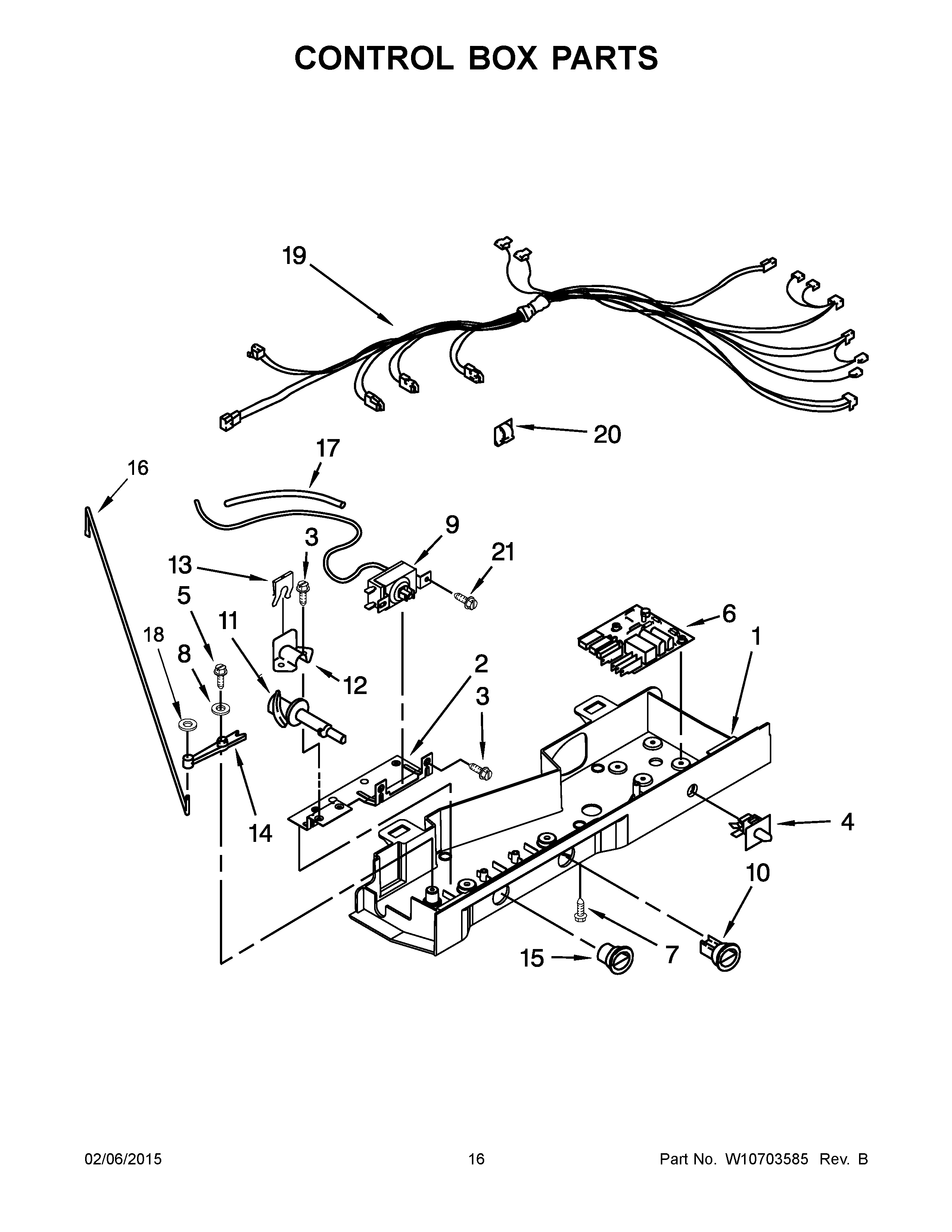

WRS3L5FNDE00 09 – CONTROL BOX PARTSadmin2025-04-26T11:08:25+00:00WRS3L5FNDE00 09 – CONTROL BOX PARTS ProductsPositionProduct1W10460941 Whirlpool Refrigerator Control Box22311611 Whirlpool Refrigerator Bracket3WP3196557 Whirlpool Screw4WP2149705 Whirlpool Refrigerator Door Switch5627068 Whirlpool Refrigerator Screw6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core7489392 Whirlpool Refrigerator Screw8489203 Whirlpool Refrigerator Washer9WPW10583800 Whirlpool Refrigerator Thermostat10W10723843 Whirlpool Refrigerator Thermostat Knob11WP2182195 Whirlpool Refrigerator Cam121110560 Whirlpool Refrigerator Bearing13WP2196062 Whirlpool Refrigerator Clip14Pivot Arm152311615 Whirlpool Refrigerator Knob162311631 Whirlpool Refrigerator Rod17WP2196003 Whirlpool Refrigerator Bar Riser18FASTENER, PUSH-ON19W10417924 Whirlpool Refrigerator Wire Harness20WP1115374 Whirlpool Refrigerator Clip21WP965173 Whirlpool Dishwasher Screw
