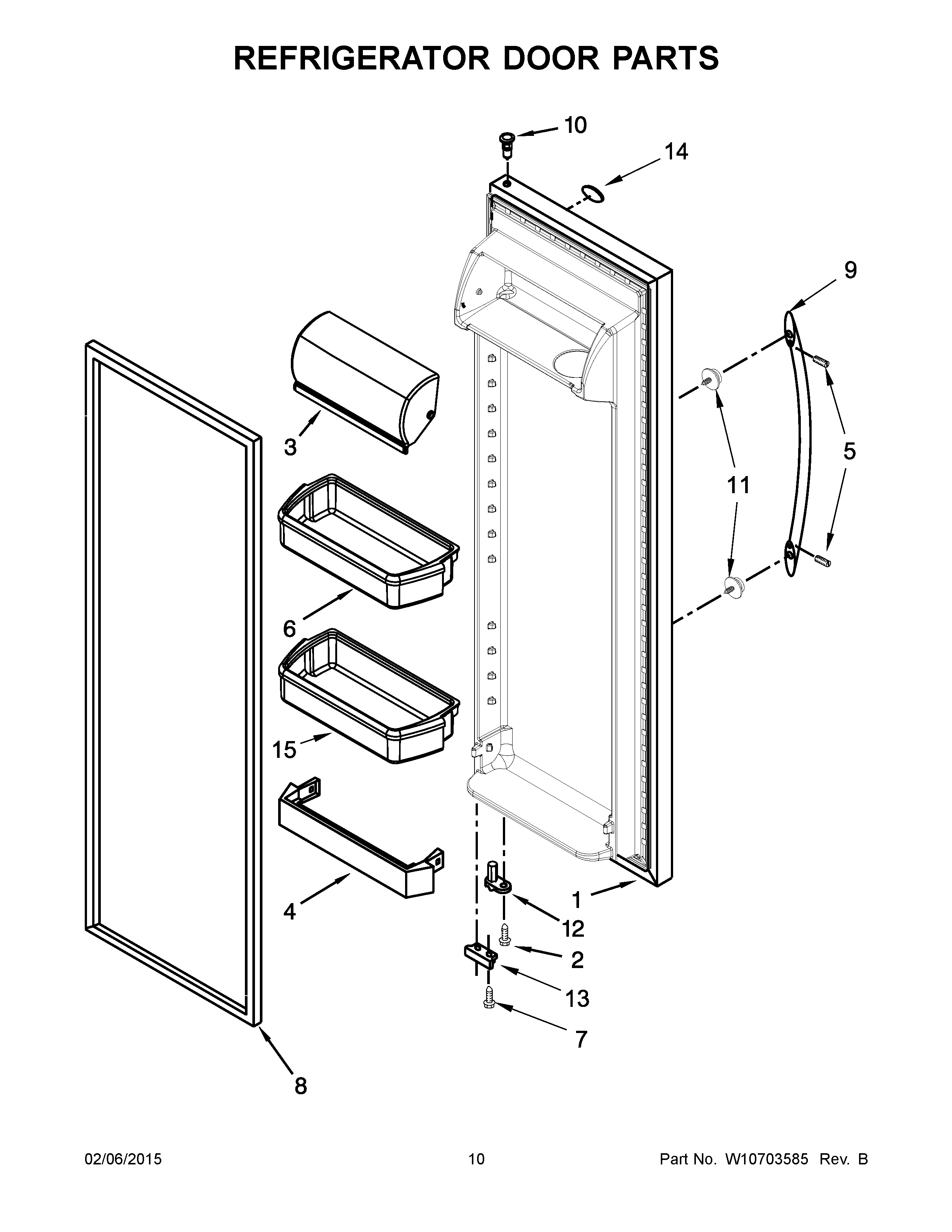

WRS3L5FNDH00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
1	DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WHITE)
1B	DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (MONOCHROMATIC STAINLESS)
2	WP3400012 Whirlpool Refrigerator Screw
3	WP2256101 Whirlpool Dairy Door
4	WP2309941 Whirlpool Refrigerator Door Bar Trim
5	SCREW
7	WP489483 Whirlpool Screw
8A	2159083 Whirlpool Gasket Door
8	2159075 Whirlpool Door Gasket Seal
8B	WPW10136734 Whirlpool Refrigerator Door Gasket
9	W10899551 Whirlpool Door Handle
10	WP2182181 Whirlpool Refrigerator Thimble
11	WPW10661886 Whirlpool Refrigerator Door Handle Screw
12	WP2182179 Whirlpool Cam Closer
13A	BRACKET, DOOR STOP
13	BRACKET, DOOR STOP (SILVER)
13B	BRACKET, DOOR STOP (GREY)
14	WPW10511972 Whirlpool Refrigerator Nameplate
15	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
