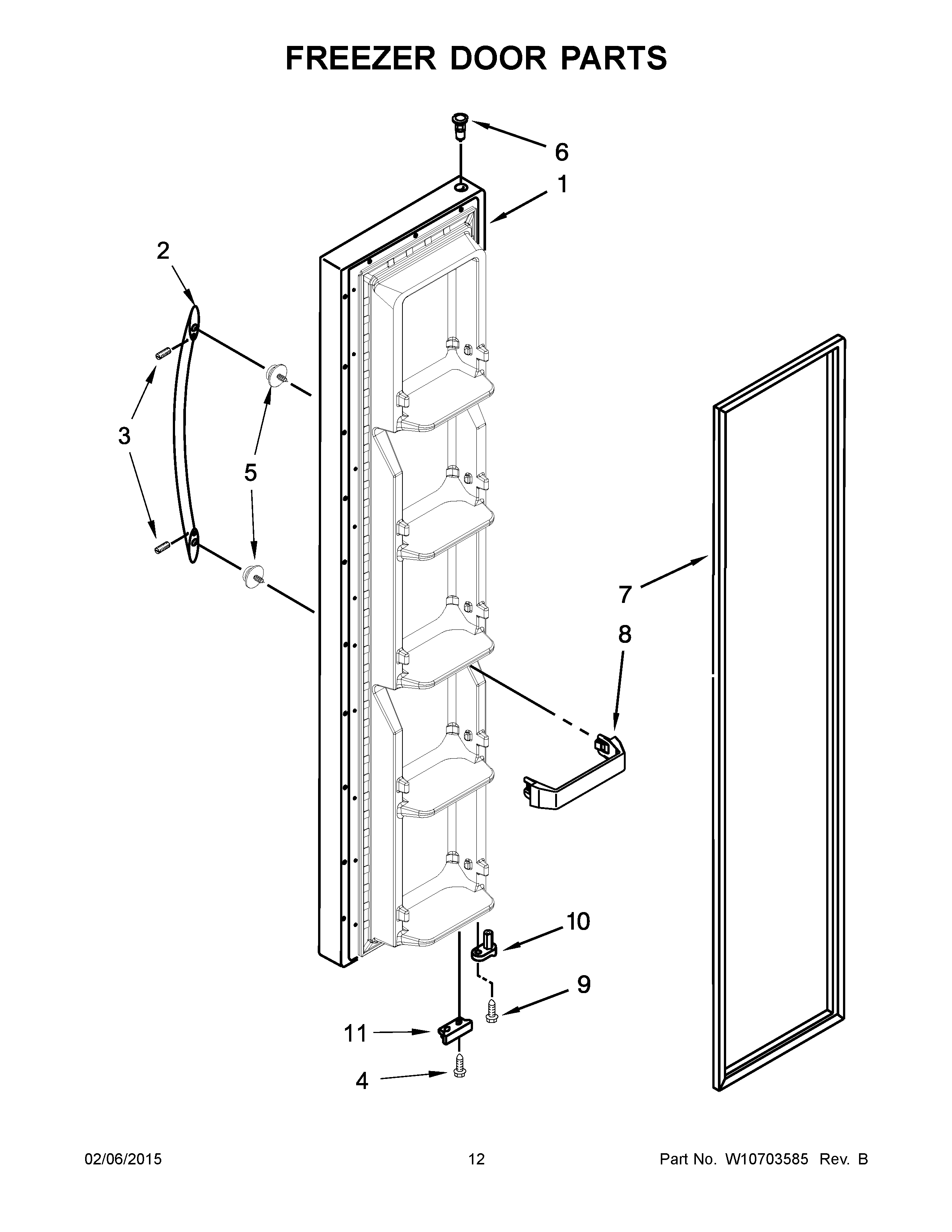

WRS3L5FNDH00 07 – FREEZER DOOR PARTS

WRS3L5FNDH00 07 – FREEZER DOOR PARTS

Written by

in

WRS3L5FNDH00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1BFREEZER DOOR (INCLUDES ITEM #7) (MONOCHROMATIC STAINLESS)
1ALW10451841 Whirlpool Refrigerator DOR-FIP BL
1FREEZER DOOR (INCLUDES ITEM #7) (WHITE)
2W10899551 Whirlpool Door Handle
3SCREW
4WP489483 Whirlpool Screw
5WPW10661886 Whirlpool Refrigerator Door Handle Screw
6WP2182181 Whirlpool Refrigerator Thimble
72159074 Whirlpool Door Gasket Seal
7BW10136735 Whirlpool Refrigerator Door Gasket
7A2159082 Whirlpool Freezer Door Gasket Black
8WP2309718 Whirlpool Refrigerator Door Trim
9WP3400012 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11A2306940B Whirlpool Refrigerator Bracket
112306940 Whirlpool Refrigerator Bracket
11BW10507570 Whirlpool Bracket
